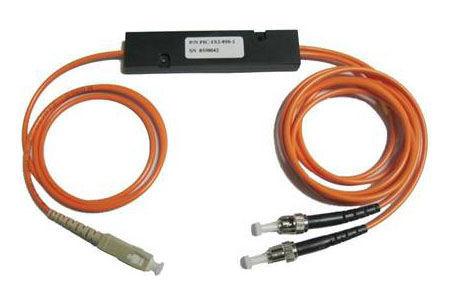

Multimode Fiber Optic PLC Splitter For LAN / PON / Optic Fiber Sensors
Multimode Fiber Optic PLC Splitter For LAN / PON / Optic Fiber Sensors
Specifications
Brand Name :
J&K
Certification :
ISO9001:2008, SGS, ROSH
Place of Origin :
SHENZHEN,CHINA
MOQ :
20PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
3~5days
Packaging Details :
plastic box
Product name :
Fiber Optic PLC Splitter
Application :
FTTH FTTB FTTX PON CATV
Operating temperature :
-40~+85℃
Wavelength :
1310nm/1550nm
Item :
high quality plc splitters
Fiber type :
G657A
Description
Detailed Product Description

Multimode Fiber Optic Splitter used in LAN, PON, and Optic-fiber Sensors



The Multimode Fused Fiber Couplers are designed by cascade basic units to eliminate the module sensitivity. It can be widely used in LAN, PON, and Optic-fiber Sensors.

Specification:

Type Multimode Standard Fiber Couplers
Coupling Ratio(% ) 50/50
Grade P A
Excess Loss(Typ.) 0.8 1.0
Max. Insertion Loss(dB) 3.9 4.1
Uniformity(Max)(dB) 0.6 0.8
Directivity(dB) ≥40
Operating Wavelength(nm) 600~1600
Central Wavelength(nm) 850, 1310 or 850/1310
Operating Temperature(ºC) -40~+85
Fiber Type Corning Multimode 50/125, 62.5/125 Fiber
Fiber Pigtail Length(m) 1 or Customer on Request
Port Configuration 1X2 or 2X2
Package Dimension(mm)

A, B, C, D, M
