1 * 4 / 1 * 16 / 1 * 32 Fiber Optic PLC Splitter With SC / APC Connector Steel Tube Packaing
1 * 4 / 1 * 16 / 1 * 32 Fiber Optic PLC Splitter With SC / APC Connector Steel Tube Packaing
1 * 4 / 1 * 16 / 1 * 32 Fiber Optic PLC Splitter With SC / APC Connector Steel Tube Packaing
1 * 4 / 1 * 16 / 1 * 32 Fiber Optic PLC Splitter With SC / APC Connector Steel Tube Packaing
Specifications
Brand Name :
J&K
Certification :
ISO9001:2015, SGS, RoHS
Place of Origin :
SHENZHEN,CHINA
MOQ :
20PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
3~5days
Packaging Details :
cardboard
Product name :
Fiber Optic PLC Splitter
Application :
FTTH FTTB FTTX PON CATV
Operating temperature :
-20℃ ~ 70 ℃
Directivity :
≥60dB
Wavelength :
1310nm/1550nm
Fiber length :
1m,Customized
Description

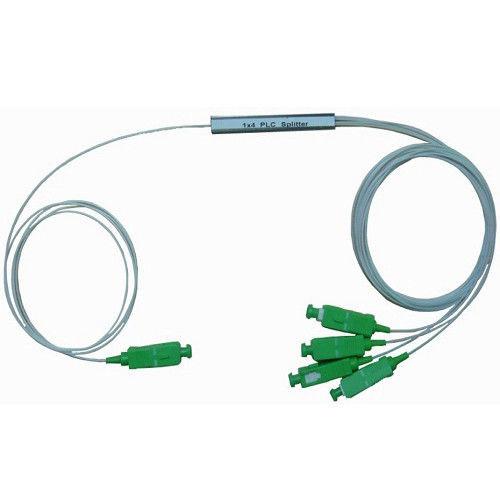

1*4 1*16 1*32 PLC Fiber Optic Splitter steel tube packaing with SC/APC connector

Steel tube, 0.9mm, 1M cable, SC/APC connector

Optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.

Features:

  • Various coupling ratio
  • Single mode and multi mode available
  • Low insertion loss, low PDL
  • Environmental stable
  • Industry standard and custom housing available
  • Variety of connectors available
  • 1x2, 1x4 and 1x n customized couplers configuration available

Applications:

  • Optical communication system
  • System and signal monitoring
  • CATV Systems & Fiber Sensors
  • Fiber to the home (FTTH)
  • Network redundancy
  • Laser splitting

Specification:

Parameter Configuration
N x 4(N=1, 2, 16) N x 8 (N=1, 2, 8) N x 16 (N=1, 2, 16) N x 32 (N=1, 2, 32)
Operate Wavelength(nm) 1310/1550, or customized
Bandwidth(nm) ±20
Max.Excess Loss(dB) 0.2 0.3 0.4 0.5
Typ.Insertion Loss(dB) 6.2 9.3 12.4 15.5
Max.Insertion Loss(dB) 6.8 10.2 13.6 17
Uniformity(dB) 1.2 1.8 2.4 3
PDL(dB) 0.08 0.12 0.16 0.2
Thermal Stability(dB) 0.2 0.3 0.4 0.5
Directivity(dB) ≥60
Operate Temperature(℃) -20～+70
Lead Length(m) 1 or customized
Lead Type(mm) φ3.0, φ2.0, φ0.9
Package Dimension A:φ3.0, L=50 B:89*19*8 C:99*79*9 D:140*114*18

(mm, L*W*H)
