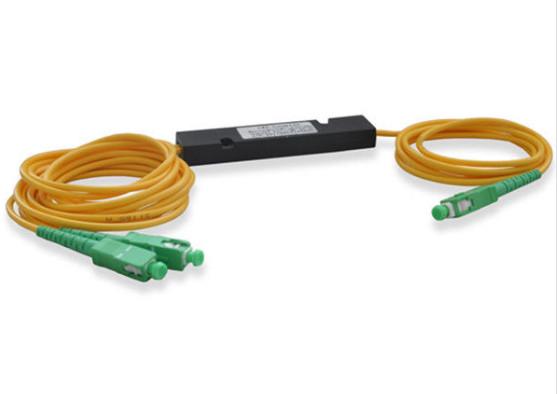

Single Mode Fiber Optic PLC Splitter 1 * 2 0.9mm Fiber Length Low Insertion Loss
Single Mode Fiber Optic PLC Splitter 1 * 2 0.9mm Fiber Length Low Insertion Loss
Specifications
Brand Name :
J&K
Model Number :
SC / APC Optical PLC 1x2 fiber spliter
Certification :
Rohs CE ISO9001:2008
Place of Origin :
SHENZHEN,CHINA
MOQ :
20PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
3~5days
Packaging Details :
Plastic Box
Product name :
Fiber Optic PLC Splitter
Operator temperature :
-40~+80℃
Return loss :
≥50 dB
Insertion loss :
≤0.1dB
Connector type :
SC/APC/UPC
Fiber type :
G.657A with 0.9mm lose tube
Description

SC APC / UPC 1*2 mini type 0.9mm fiber optic plc splitter

Features

  • Telcordia GR-326, IEC, TIA/EIA Standard compliant.
  • 100% Optical performance inspection.
  • Low Insertion Loss.
  • RoHS Compliance.
  • Customized design and production.


Applications

  • Network Protection
  • Monitorin
  • Access/PON distribution


Specifications

Parameters 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32
Operating wavelength(nm) 1200~1650
Insertion Loss (db).Max 7.2/7.4 10.5/10.7 13.5/13.7 16.5/16.9 20.5/21 7.5/7.8 11.2/11.5 14.2/14.5 17.4/17.7
Loss Uniformity (db).Max 0.6 0.8 1.2 1.5 2.5 1.5 1.5 2.0 2.5
PDL (db).Max 0.2 0.3 0.3 0.3 0.4 0.2 0.4 0.4 0.4
Return Loss (db) ≥50
Directivity (db) ≥55
Fiber Length(m) 1.2(±0.1),Specify
Fiber Type Corning SMF-28e, Specify
Operation Temperature℃ -40~+85

Single Mode Fiber Optic PLC Splitter 1 * 2 0.9mm Fiber Length Low Insertion Loss
