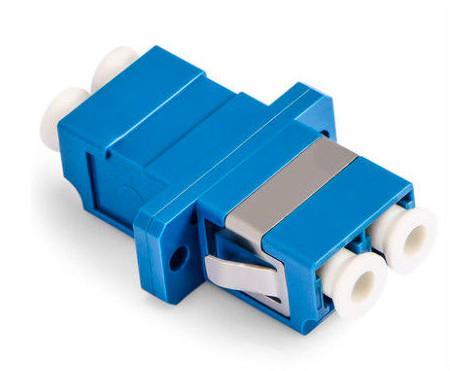

Duplex LC - LC Fiber Optic Adapter Female To Female With M2 * 6MM Screw
Duplex LC - LC Fiber Optic Adapter Female To Female With M2 * 6MM Screw
Duplex LC - LC Fiber Optic Adapter Female To Female With M2 * 6MM Screw
Duplex LC - LC Fiber Optic Adapter Female To Female With M2 * 6MM Screw
Duplex LC - LC Fiber Optic Adapter Female To Female With M2 * 6MM Screw
Duplex LC - LC Fiber Optic Adapter Female To Female With M2 * 6MM Screw
Specifications
Place of Origin :
SHENZHEN,CHINA
Brand Name :
J&K
Model Number :
FC
Certification :
CE / ISO / RoHS
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pcs per month
Delivery Time :
3~5 Working Days
Packaging Details :
Plastic box
Product name :
fiber optic adapter
Insertion loss :
≤0.3dB
Application :
FTTH FTTB FTTX Network
Durability :
>1000time
Operating temp :
-40~75°C
Storage temperature :
- 45~+85℃
Description

25 pcs per package Duplex LC to LC fiber optic adapter Female to Female

  • OS1 OS2 LC to LC(Female to Female) Duplex Fiber Optic Adapter/Coupler with M2*6MM Screw.
  • LC adapters uses ceramic sleeve to connect between two LC fiber Optic cables.
  • Adapters can lock the connectors and get low insertion loss to transmission optical signal.
  • Our LC fiber optic adapter are suitable for fiber patch panel, which means you can use them in any type of enclosure with rectangular cutouts.
  • Meets the Telcordia and IEC 61754 stander, all materials compliant with RoHS requirement.

  • Color : single mode is blue / green color ( also can be customized according to your requirements )
  • multi mode have beige / Aqua /purple/ rose ,etc ( can be customized according to your requirements
  • Adapter have simplex / duplex / four cores / 8 cores / 16 cores
  • Mode type : adapter has single mode ( UPC / APC ) and multi mode
  • Adapter type : LC / SC / FC / ST / MPO
  • Material : plastic / metal

Insertion loss(typical) ≤0.3dB
Interchangeability ≤ 0.2dB
Vibration ≤ 0.2dB
Repeatability ≤ 0.2dB
Durability >1000 times
Operating temperature -40˜75°c
Storage temperature -45˜85°c

Prameter

Product Name Sm big high telecom / apc d-hole adaptor small d type fc fiber optical adapter fc/upc d-type
Modle Number FC D-type Adapter
Inserion Loss ≤0.3dB
Durability >1000 times
Operating Temp -40~70°C
Material Metal
Application FTTx,LAN,CATV,Telecom
Certification RoHS,SGS,CE
Connector Type FC-FC
Polish Type UPC;APC
Fiber Mode Singlemode; Multimode; OM3; OM4;OM5
Color SM:Blue,Green MM:Beige OM3:Aqua OM4:Violet OM5:Lime green
Core Simplex
Flange with flange/with ear;
Form of sale Neutral/OEM/ODM
Use Fiber connection
Custom Design welcom
Sample Lead Time within 7 days after confirmation
Advantage Best price,best service
Payment Terms T/T in advance; Others(subject to negotiation between both parties)
