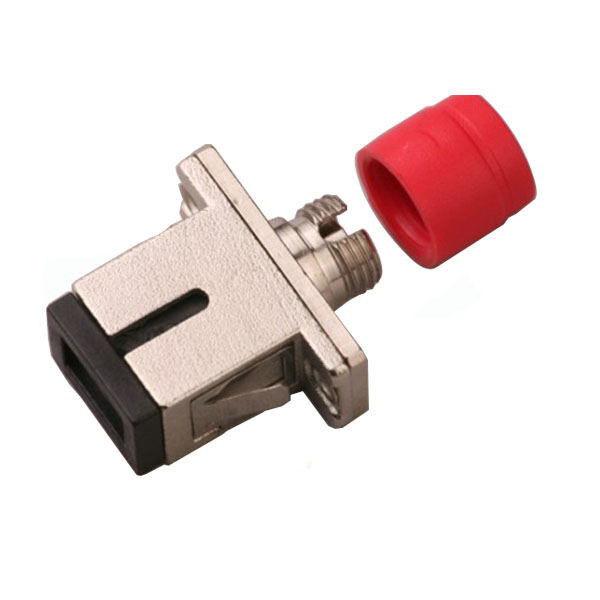

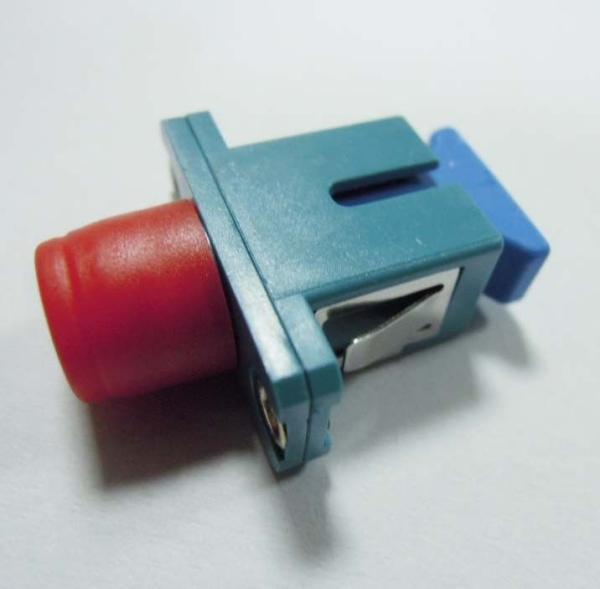

SC / Female To FC / Male Fiber Optic Connector Adapters Hybrid For Data Transmission
SC / Female To FC / Male Fiber Optic Connector Adapters Hybrid For Data Transmission
SC / Female To FC / Male Fiber Optic Connector Adapters Hybrid For Data Transmission
SC / Female To FC / Male Fiber Optic Connector Adapters Hybrid For Data Transmission
Specifications
Brand Name :
J&K
Model Number :
SC/FC M-F
Certification :
ISO9001:2015 , RoHS
Place of Origin :
SHENZHEN,CHINA
MOQ :
50PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
3~5 days
Packaging Details :
PE bag
Product name :
fiber optic adapter
Insertion loss :
≤0.2dB
Application :
FTTH FTTB FTTX Network
Operating temperature :
-40℃ to 75℃
Durability :
>1000time
Storage temperature :
- 45~+85℃
Description
SC / Female To FC / Male Hybrid Fiber Optic Adaptor For Data Transmission

Characteristics:

  1. Types: FC-LC, FC-SC, FC-ST, FC-MU, SC-ST…
  2. Low insertion loss, high return loss
  3. Good compatibility
  4. High precision of mechanical dimensions
  5. High reliability & stability
  6. Ceramic or Bronze Sleeve
  7. PC , APC , UPC optional
  8. Simplex / Duplex


Application:

  1. Local Area Network
  2. CATV System
  3. Telecommunication Networks

Technical parameter:

rameter Unit LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, MTRJ E2000
SM MM SM MM SM
PC UPC APC PC PC UPC PC PC APC
Insertion Loss (Typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Exchangeability dB ≤0.2 ≤0.2 ≤0.2
Repeatability dB ≤0.2 ≤0.2 ≤0.2
Durability Time ＞1000 ＞1000 ＞1000
Operating Temperature ℃ -40~75 -40~75 -40~75
Storage Temperature ℃ -45~85 -45~85 -45~85

Ordering Information:

  • For example:SC-FC, single mode, SX hybrid adapter
  • Connector type: FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
  • Ferrule end-face: PC,UPC,APC
  • Core type: Single-mode(SM:9/125μm), multimode(MM:50/125μm or 62.5/125μm)
  • Appearance: with ear type, no ear type;
  • Material: copper alloy, zinc alloy, plastic
