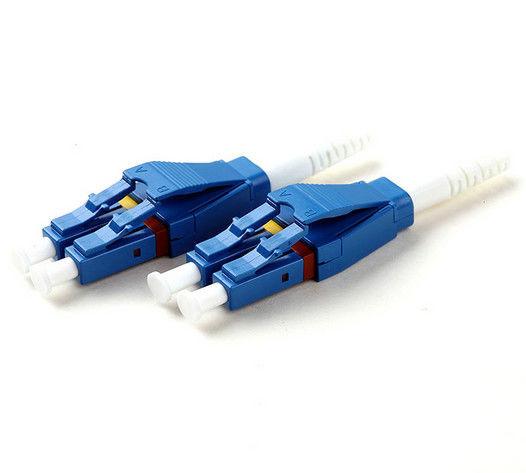

Single Mode Fiber Optic Connectors LC / UPC Duplex Uniboot For FTTX Network
Single Mode Fiber Optic Connectors LC / UPC Duplex Uniboot For FTTX Network
Single Mode Fiber Optic Connectors LC / UPC Duplex Uniboot For FTTX Network
Single Mode Fiber Optic Connectors LC / UPC Duplex Uniboot For FTTX Network
Specifications
Brand Name :
J&K
Model Number :
LC DX Connector
Certification :
ISO9001:2015 , RoHS
Place of Origin :
SHENZHEN,CHINA
MOQ :
20PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
5~8 working Days
Packaging Details :
PE bag/cartons
Insertion loss :
PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB
Product name :
Fiber Optic Connector
Application :
FTTH FTTB FTTX Network
Return loss :
PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB
Operating temperature :
-40°C ~ +80°C
Durability :
≤ 0.2db typical change
Description

1.Features:

  • Have two dismount gap, easy to dismount
  • Streamline design, good aesthetic
  • Uniboot connector cable management
  • Switchable Connector to change polarity
  • MINI Boot & Flex angle boot available
  • Right Angle Clip well for panel management

2.Applications:

  • Gigabit Etherne
  • Video
  • Multimedia
  • Active device termination
  • Premise installations
  • Telecommunication network

3.Specifications:

Item Single mode Multi mode
Insertion loss PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB <0.3dB
Return loss PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB >25dB
Insert-pull test 1000(times) <0.2dB
Operating temperature -40°C~ +80°C
Ceramic ferrule spec 125.5um concentricity deviations: <1um 127um concentricity deviations: <3um
Suitable fiber PC/APC(9/125um) PC(50/125um, 62.5/125um)

4.Drawing:

Single Mode Fiber Optic Connectors LC / UPC Duplex Uniboot For FTTX Network
