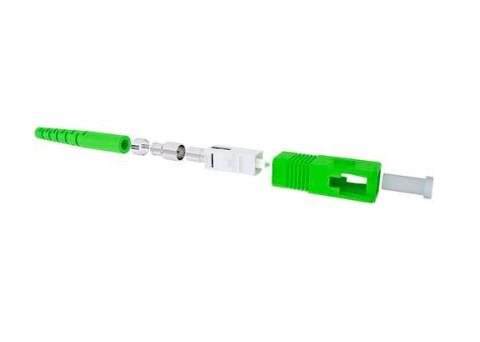

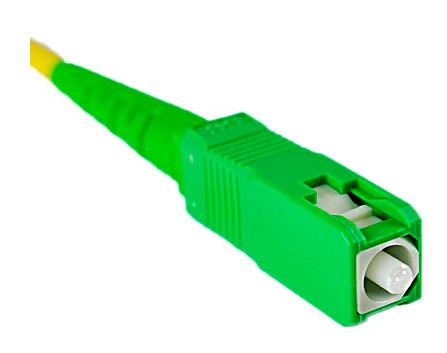

SC / APC SX DX Fiber Optic Cable Connectors, SM MM Ceramic Ferrule Fiber Fast Connector
SC / APC SX DX Fiber Optic Cable Connectors, SM MM Ceramic Ferrule Fiber Fast Connector
SC / APC SX DX Fiber Optic Cable Connectors, SM MM Ceramic Ferrule Fiber Fast Connector
SC / APC SX DX Fiber Optic Cable Connectors, SM MM Ceramic Ferrule Fiber Fast Connector
Specifications
Place of Origin :
SHENZHEN,CHINA
Brand Name :
J&K
Model Number :
SC APC Fiber Optic Connector
Certification :
IS09001-2008.ROHS
MOQ :
5000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10000 pcs per day
Delivery Time :
3~5 Working Days
Packaging Details :
PE bag/carton
Product name :
Fiber Optic Connector
Application :
FTTH FTTB FTTX Network
Insertion loss :
SM≤0.2 dB,MM≤0.25 dB
Return loss :
PC≥50 dB,UPC≥55 dB,APC≥65 dB
Operating temperature :
-40°C ~ +80°C
Durability :
≤ 0.2db typical change
Description

SC APC Fiber Optic Connector, Fiber Optical Cable Connector, SM MM SX DX Fiber Connector

Features

  • Low insertion loss(≤0.20dB)and high return loss(≥55 dB)
  • Free-floating ceramic ferrule
  • UL-rated plastic housing and boot
  • Boots in a variety of colors
  • High precision alignment connector


Applications

  • Local Area Networks (LANs) and Wide Area Networks (WANs)
  • Fiber Optic CATV,FTTH,FTTB,FTTP etc
  • Fiber Optic telecommunication systems
  • Transmission Mode (ATM)
  • Fiber Optic Backbone
  • Military Instrumentation


Specifications

Specifications
Single mode Multimode
Insert Loss ≤0.20dB ≤0.25dB
Return Loss ≥50 dB (PC)
≥55 dB (UPC)
≥65 dB (APC)
Durability <0.20 dB typical change, 1000 mating
Operating Temperature From -40 to + 80°C From -40 to + 80°C
Ferrule Hole Sizes 125.0+1/-0μm, Concentricity: ≤1.0μm 125μm, Concentricity: 1≤3μm
125.5+1/-0μm, Concentricity: ≤1.0μm 127μm, Concentricity: 1≤3μm
126.0+1/-0μm, Concentricity: ≤1.0μm 128μm, Concentricity: 1≤3μm
