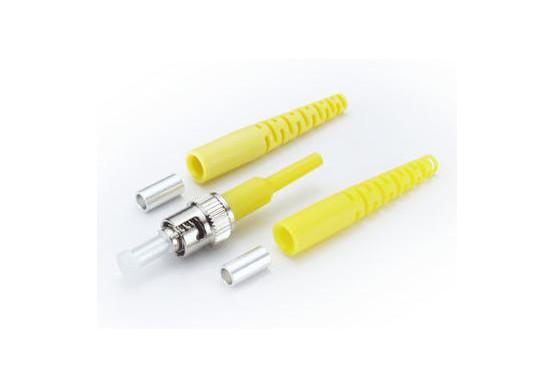

Yellow Boot Fast Connect Fiber Connectors , ST / UPC 2.0mm Duplex Sc Fiber Optic Connector
Yellow Boot Fast Connect Fiber Connectors , ST / UPC 2.0mm Duplex Sc Fiber Optic Connector
Yellow Boot Fast Connect Fiber Connectors , ST / UPC 2.0mm Duplex Sc Fiber Optic Connector
Yellow Boot Fast Connect Fiber Connectors , ST / UPC 2.0mm Duplex Sc Fiber Optic Connector
Specifications
Brand Name :
J&K
Model Number :
ST/UPC Connector
Certification :
IS09001-2008.ROHS
Place of Origin :
SHENZHEN,CHINA
MOQ :
1000PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
3~5days
Packaging Details :
PE bag
Product name :
Fiber Optic SC APC Fast Connector
Color :
Yellow
Application :
FTTH FTTB FTTX Network
Connector type :
ST/UPC
Return loss :
≥50dB
Insert loss :
<0.2dB
Description

singlemode simplex fiber optic cable st / upc connector long 2.0mm yellow boot

Product Description

Fiber optic connectors are unique. Fiber cables transmit pulses of light instead of electrical signals, so the terminations must be much more precise. Instead of merely allowing pins to make metal-to-metal contact, fiber optic connectors must align microscopic glass fibers perfectly in order to allow for communication. While there are many different types of fiber connectors, they share similar design characteristics. Simplex vs. duplex: Simplex means 1 connector per end while duplex means 2 connectors per end. There are three major components of a fiber connector: the ferrule, the connector body, and the coupling mechanism.

Applications

  • Local Area Networks (LANs)
  • Data Processing Networks
  • Premise Installations
  • Instrumentation

FEATURE

  • Bayonet style housing for easy termination
  • Epoxy and epoxy-less versions
  • High precision alignment
  • Low insertion Loss
  • High return Loss

Parameter

Item Single mode APC Multi mode
Insertion Loss ≤0.3db
Durability 0.2db Max
Operating temperature -40 ºC to +75 ºC
Storage temperature -40 ºC to +75 ºC
Remark Ferrule concentricity SM <1um; MM <4um
Ferrule inner diameter tolerance : SM125+1/-0um; MM127+3/-0um
Ferrule outer diameter tolerance : ±0.5um

Yellow Boot Fast Connect Fiber Connectors , ST / UPC 2.0mm Duplex Sc Fiber Optic Connector
