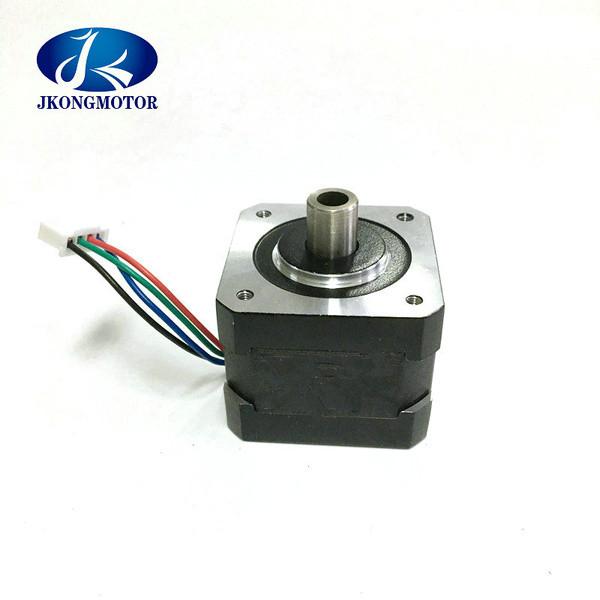

Hollow Shaft stepper Motor Nema 17 Hybrid Stepper Motor High Torque 21oz . In - 100oz . In
Hollow Shaft stepper Motor Nema 17 Hybrid Stepper Motor High Torque 21oz . In - 100oz . In
Hollow Shaft stepper Motor Nema 17 Hybrid Stepper Motor High Torque 21oz . In - 100oz . In
Hollow Shaft stepper Motor Nema 17 Hybrid Stepper Motor High Torque 21oz . In - 100oz . In
Specifications
Brand Name :
Jkongmotor
Model Number :
NEMA17 JK42HS
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$5~US$15
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Shaft :
Single Or Double
Leads :
4 / 6
Current :
0.4A - 1.7A
Holding Torque :
1.5kg.cm -- 7.3kg.cm
Step Angle :
1.8 degree
Weight :
0.15kg - 0.55kg
MOQ :
10pcs
Description


Hollow Shaft Stepper Motor Nema17 High Torque 21oz.in - 100oz.in
1.Genaral Specification of hollow shaft stepper motor:
Step Angle: 1.8°
Temperature Rise: 80℃max
Ambient Temperature : -20℃~+50℃
Insulation Resistance : 100 MΩ Min. ,500VDC
Dielectric Strength : 500VAC for 1minute
Shaft Radial Play : 0.02Max. (450g-load)
Shaft Axial Play : 0.08Max. (450g-load)
Max. radial force : 28N (20mm from the flange)
Max. axial force : 10N
2.Electrical Specification of hollow shaft stepper motor :

Model No.Step AngleMotor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque# of LeadsDetent TorqueRotor InertiaMass
( °)(L)mmAΩmHkg.cmNo.g.cmg.cmKg
JK42HS34-13341.8341.332.12.52.24120340.22
JK42HS34-04061.8340.424151.66120340.22
JK42HS34-09561.8340.954.22.51.66120340.22
JK42HS40-04061.8400.430302.66150540.28
JK42HS40-17041.8401.71.52.34.24150540.28
JK42HS40-16841.8401.681.653.23.64150540.28
JK42HS40-12061.8401.232.72.96150540.28
JK42HS48-04061.8480.430253.16260680.35
JK42HS48-16841.8481.681.652.84.44260680.35
JK42HS48-12061.8481.23.32.83.176260680.35
JK42HS60-04061.8600.430396.562801020.5
JK42HS60-17041.8601.736.27.342801020.5
JK42HS60-12061.8601.2675.662801020.5


Hollow Shaft stepper Motor Nema 17 Hybrid Stepper Motor High Torque 21oz . In - 100oz . In
