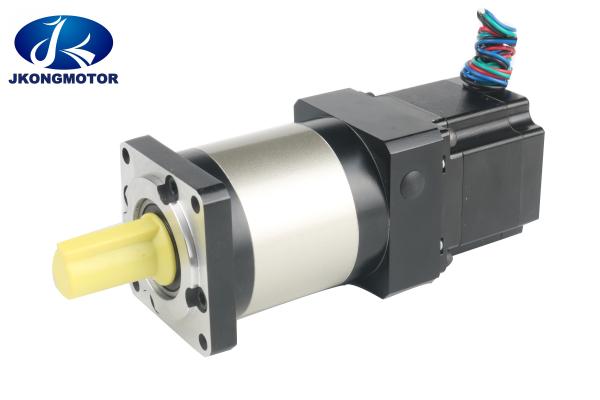

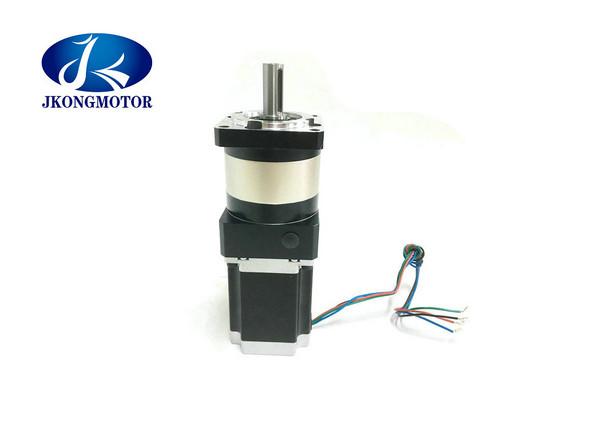

Geared Stepper Motor NEMA23 Stepper Motor 76 Oz . In - 425 Oz . In Stepping 2.8A - 4.2A stepper motor gear reducer
Geared Stepper Motor NEMA23 Stepper Motor 76 Oz . In - 425 Oz . In Stepping 2.8A - 4.2A stepper motor gear reducer
Geared Stepper Motor NEMA23 Stepper Motor 76 Oz . In - 425 Oz . In Stepping 2.8A - 4.2A stepper motor gear reducer
Geared Stepper Motor NEMA23 Stepper Motor 76 Oz . In - 425 Oz . In Stepping 2.8A - 4.2A stepper motor gear reducer
Geared Stepper Motor NEMA23 Stepper Motor 76 Oz . In - 425 Oz . In Stepping 2.8A - 4.2A stepper motor gear reducer
Geared Stepper Motor NEMA23 Stepper Motor 76 Oz . In - 425 Oz . In Stepping 2.8A - 4.2A stepper motor gear reducer
Geared Stepper Motor NEMA23 Stepper Motor 76 Oz . In - 425 Oz . In Stepping 2.8A - 4.2A stepper motor gear reducer
Geared Stepper Motor NEMA23 Stepper Motor 76 Oz . In - 425 Oz . In Stepping 2.8A - 4.2A stepper motor gear reducer
Specifications
Brand Name :
Jkongmotor
Model Number :
NEMA23 JK57HSPLF
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$60~US$110
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Shaft :
Single or Double
Leads :
4 / 6 / 8
Current :
2.8A - 4.2A
Holding Torque :
0.55N.m - 3.1N.m
Step Angle :
1.8 degree
IP for Gearbox :
IP65
Description


Geared Stepper Motor Nema23 76oz.in - 425oz.in Stepping With High Precision Gearbox

Electrical Specification :

step angle:1.8degree

temperature rise:80℃max

Ambient temperature:-20℃-+50℃

Insulation resistance:100Mohm min,500VDC

Dielectric strength:500VACA for 1 minute


57HS Hybrid Stepping Motor Specifications of Geared STEPPER MOTOR:

Model No.

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass
(L1)mm A Ω mH N.m No. g.cm g.cm Kg
JK57HS41-2804 41 2.8 0.7 1.4 0.55 4 250 150 0.47
JK57HS51-2804 51 2.8 0.83 2.2 1.01 4 300 230 0.59
JK57HS56-2804 56 2.8 0.9 2.5 1.2 4 350 280 0.68
JK57HS64-2804 64 2.8 0.8 2.3 1 4 400 300 0.75
JK57HS76-2804 76 2.8 1.1 3.6 1.89 4 600 440 1.1
JK57HS82-3004 82 3 1.2 4 2.1 4 1000 600 1.2
JK57HS100-4204 100 4.2 0.75 3 3 4 1100 700 1.3
JK57HS112-4204 112 4.2 0.9 3.8 3.1 4 1200 800 1.4



57HS High Precision Planetary Gearbox Specifications:

Geared Stepper Motor NEMA23 Stepper Motor 76 Oz . In - 425 Oz . In Stepping 2.8A - 4.2A stepper motor gear reducer


Matching Stepper motor Driver: JKD5060S

Gear Dimension:

Geared Stepper Motor NEMA23 Stepper Motor 76 Oz . In - 425 Oz . In Stepping 2.8A - 4.2A stepper motor gear reducer

Geared Stepper Motor NEMA23 Stepper Motor 76 Oz . In - 425 Oz . In Stepping 2.8A - 4.2A stepper motor gear reducer
