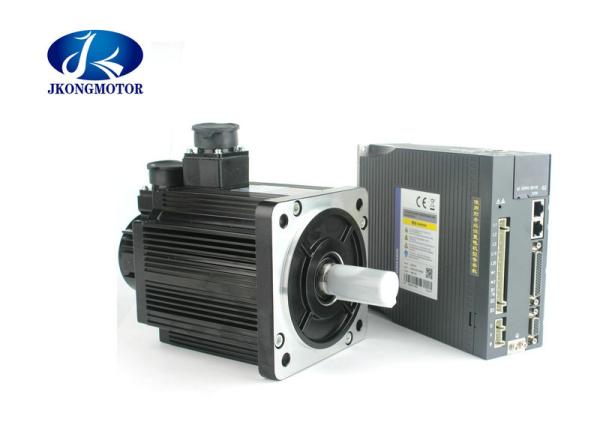

130ST-M06025 3 Phase AC Servo Motor AC 220V 1.5KW Power 6N.M 2500RPM
130ST-M06025 3 Phase AC Servo Motor AC 220V 1.5KW Power 6N.M 2500RPM
130ST-M06025 3 Phase AC Servo Motor AC 220V 1.5KW Power 6N.M 2500RPM
130ST-M06025 3 Phase AC Servo Motor AC 220V 1.5KW Power 6N.M 2500RPM
Specifications
Model Number :
130ST-M06025
Certification :
CE,ROHS
Place of Origin :
Jiangsu, China (Mainland)
Price :
US $266-295 / Sets | 1 Set/Sets (Min. Order)
MOQ :
3-10pcs
Brand Name :
Jkongmotor
Supply Ability :
10000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Payment Terms :
T/T , paypal , Western Union, L/C
Output Power :
1.5KW
Phase :
Three-phase
AC Voltage :
220V
Efficiency :
IE 1
Body color :
black
RPM :
2500
rated current :
6A
driver :
JK-G2A3215
Type :
Servo Motor
Description

130ST-M06025 AC 220V Servo Motor 1.5KW 6N.m 2500RPM & Driver Set

130STM Series AC servo motor , AC SERVO MOTOR FOR CNC MACHINE,

1.0 KW,1.25KW,1.5KW,2.3KW ,AC servo motor and driver, controller

Technical data of 130ST-M06025 AC servo motor:

Motor 130ST-M06025
Power(KW) 1.5
Hoding torque(N.m) 6
Rated speed(rpm) 2500
Nominal current(A) 6.8
Rotor inertia(Kg㎡) 1.26×10-3
Machanical time-constant(Ms) 2.83
Encoder line nmber(P/R) 2500
Motor winding plue B
3
Encoder plug
Signal 5V 0V A+ A- B+ B- Z+ Z- U+ U- V+ V- W+ W- PE
Plug serial number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1

Insulation rank B
Appropriate environment temperature 0-55℃ Humidity : ﹤90%(no dewdrop)
Protection rank IP65
Weight(KG) 8.6

The other Specification of 3phase AC servo motor:

Motor model 130ST-M04025 130ST-M05025 130ST-M06025 130ST-M07725 130ST-M10010 130ST-M10015 130ST-M10025 130ST-M15015 130ST-M15025
Rated power(KW) 1.0 1.3 1.5 2.0 1.0 1.5 2.6 2.3 3.8
Rated voltage(V) 220 220 220 220 220 220 220 220 220
Rated current(A) 4.0 5.0 6.0 7.5 4.5 6.0 10 9.5 13.5
Rated speed(rpm) 2500 2500 2500 2500 1000 1500 2500 1500 2500
Holding torque(N.m) 4 5 6 7.7 10 10 10 15 15
Peak torque(N.m) 12 15 18 22 20 25 25 30 30
Voltage constant(V/1000r/min) 72 68 65 68 140 103 70 114 67
Torque coefficient(N.m/A) 1.0 1.0 1.0 1.03 2.2 1.67 1.0 1.58 1.11
Rotor inertia(Kg.m2) 0.85x10-3 1.06x10-3 1.26x10-3 1.53x10-3 1.94x10-3 1.94x10-3 1.94x10-3 2.77x10-3 2.77x10-3
Line-Line Resistance(Ω) 2.76 1.84 1.21 1.01 2.7 1.5 0.73 1.1 0.49
Line-Line Inductance(mH) 6.42 4.9 3.87 2.94 8.8 4.37 2.45 4.45 1.68
Mechanical time-constant(Ms) 2.32 2.66 3.26 3.80 3.26 2.91 3.36 4.05 3.43
Weight(Kg) 6.2 6.6 7.4 8.3 10.2 10.2 9.8 12.6 11.7
Motor length L(mm) 166 171 179 192 213 213 209 241 231
Encoder line number(PPR) 2500
Insulation class Class F
Safety class IP65
The operating of Environmental Conditions Temperature: -20°C ~ +40°C Humidity: Below 90%RH No dewing
Motor winding plug Winding lead wire U V W PE
Plug serial number .2 3 4 1
Photoelectric encoder socket (15 pin) Signal lead wire 5V 0V A+ B+ Z+ A- B- Z- U+ V+ W+ U- V- W- PE
Plug serial number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1

Absolute encoder socket

(7 pin)

 Signal lead wire E- E+ SD- 0V SD+ +5V PE
Plug serial number 2 3 4 5 6 7 1

We can also manufacture products according to customer's requirements.

130ST-M06025 3 Phase AC Servo Motor AC 220V 1.5KW Power 6N.M 2500RPM

We aslo supply Stepper motor Kits, linear stepper motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible Coupling, Pully, Power supply, Breakout Board and so on..
Packaging & Shipping:

130ST-M06025 3 Phase AC Servo Motor AC 220V 1.5KW Power 6N.M 2500RPM
