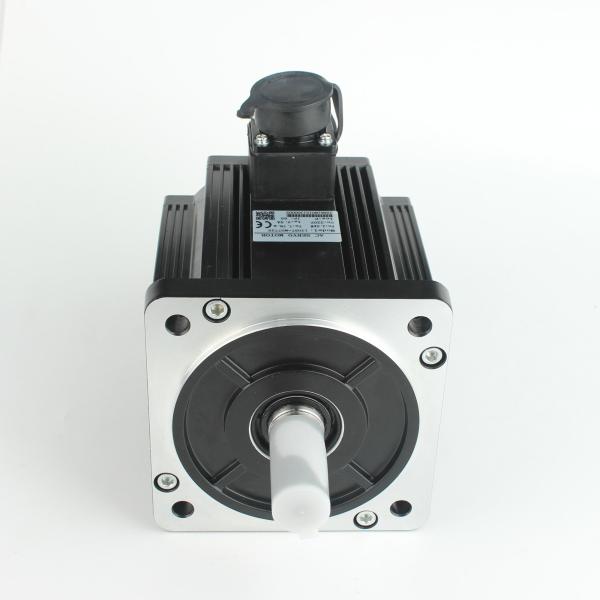

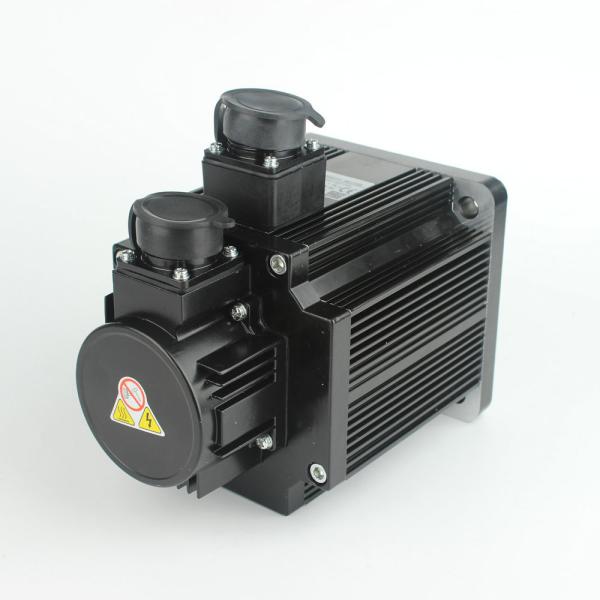

Single phase ac motor 220V 2500RPM 2.6KW AC Servo Motor 10N.M 10A , JK-G2A3215 Set industrial sewing machine
Single phase ac motor 220V 2500RPM 2.6KW AC Servo Motor 10N.M 10A , JK-G2A3215 Set industrial sewing machine
Single phase ac motor 220V 2500RPM 2.6KW AC Servo Motor 10N.M 10A , JK-G2A3215 Set industrial sewing machine
Single phase ac motor 220V 2500RPM 2.6KW AC Servo Motor 10N.M 10A , JK-G2A3215 Set industrial sewing machine
Single phase ac motor 220V 2500RPM 2.6KW AC Servo Motor 10N.M 10A , JK-G2A3215 Set industrial sewing machine
Single phase ac motor 220V 2500RPM 2.6KW AC Servo Motor 10N.M 10A , JK-G2A3215 Set industrial sewing machine
Single phase ac motor 220V 2500RPM 2.6KW AC Servo Motor 10N.M 10A , JK-G2A3215 Set industrial sewing machine
Single phase ac motor 220V 2500RPM 2.6KW AC Servo Motor 10N.M 10A , JK-G2A3215 Set industrial sewing machine
Specifications
Brand Name :
Jkongmotor
Model Number :
130ST-M10025
Certification :
CE,ROHS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US $299 - 327 / Sets | 1 Set/Sets (Min. Order)
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
30000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Output Power :
2.6KW
AC Voltage :
220V
RPM :
2500
rated current :
10A
driver :
JK-G2A3215
Torque :
10N.m
Product name :
servo motor for sewing machine
Character :
Servo motor and driver
Phase :
Single-phase
Description

2500RPM 2.6KW AC Servo Motor 10N.m 10A & Driver JK-G2A3215 Set industrial sewing machine

Insulation resistance——500VDC 100MW Min
Insulation strength——1500VAC 1Minute

Environment temperature—— -20℃ ～ +50℃

Insulation glass——B

Detailed Product Description
Output Power: 2.6KW Rated Speed: 2500RPM
Rated Current: 10A Holding Torque: 10N.m
Rated Voltage: 220V

Technical data of 130ST-M10025 AC servo motor:

Motor model 130ST-M04025 130ST-M05025 130ST-M06025 130ST-M07725 130ST-M10010 130ST-M10015 130ST-M10025 130ST-M15015 130ST-M15025
Rated power(KW) 1.0 1.3 1.5 2.0 1.0 1.5 2.6 2.3 3.8
Rated voltage(V) 220 220 220 220 220 220 220 220 220
Rated current(A) 4.0 5.0 6.0 7.5 4.5 6.0 10 9.5 13.5
Rated speed(rpm) 2500 2500 2500 2500 1000 1500 2500 1500 2500
Holding torque(N.m) 4 5 6 7.7 10 10 10 15 15
Peak torque(N.m) 12 15 18 22 20 25 25 30 30
Voltage constant(V/1000r/min) 72 68 65 68 140 103 70 114 67
Torque coefficient(N.m/A) 1.0 1.0 1.0 1.03 2.2 1.67 1.0 1.58 1.11
Rotor inertia(Kg.m2) 0.85x10-3 1.06x10-3 1.26x10-3 1.53x10-3 1.94x10-3 1.94x10-3 1.94x10-3 2.77x10-3 2.77x10-3
Line-Line Resistance(Ω) 2.76 1.84 1.21 1.01 2.7 1.5 0.73 1.1 0.49
Line-Line Inductance(mH) 6.42 4.9 3.87 2.94 8.8 4.37 2.45 4.45 1.68
Mechanical time-constant(Ms) 2.32 2.66 3.26 3.80 3.26 2.91 3.36 4.05 3.43
Weight(Kg) 6.2 6.6 7.4 8.3 10.2 10.2 9.8 12.6 11.7
Motor length L(mm) 166 171 179 192 213 213 209 241 231
Encoder line number(PPR) 2500
Insulation class Class F
Safety class IP65

The operating of Environmental Conditions Temperature: -20°C ~ +40°C Humidity: Below 90%RH No dewing
Motor winding plug Winding lead wire U V W PE
Plug serial number .2 3 4 1
Photoelectric encoder socket (15 pin) Signal lead wire 5V 0V A+ B+ Z+ A- B- Z- U+ V+ W+ U- V- W- PE
Plug serial number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1

Absolute encoder socket

(7 pin)

 Signal lead wire E- E+ SD- 0V SD+ +5V PE
Plug serial number 2 3 4 5 6 7 1

Installation dimension: unit=mm

Single phase ac motor 220V 2500RPM 2.6KW AC Servo Motor 10N.M 10A , JK-G2A3215 Set industrial sewing machine

Installation precaution:

1. Installation/disassembly components coupled to the motor shaft end, do not hit shaft hard to prevent the other side of motor shaft encoder was knocked out bad.

2. Striving to make the best of its shaft to prevent vibration and bearing damage.

We can also manufacture products according to customer's requirements.

Single phase ac motor 220V 2500RPM 2.6KW AC Servo Motor 10N.M 10A , JK-G2A3215 Set industrial sewing machine
