Φ100 3KW ER20 Ac Spindle Motor Air / Water Cooled 220V For CNC Milling Machine
Φ100 3KW ER20 Ac Spindle Motor Air / Water Cooled 220V For CNC Milling Machine
Φ100 3KW ER20 Ac Spindle Motor Air / Water Cooled 220V For CNC Milling Machine
Φ100 3KW ER20 Ac Spindle Motor Air / Water Cooled 220V For CNC Milling Machine
Specifications
Brand Name :
Jkongmotor
Model Number :
Φ100 3KW ER20
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$ 180~US$ 215
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
10000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
speed :
1-24000 r/min
power :
3kw
voltage :
220v / 380v
current :
10A
frequency :
400HZ
weight :
8.8kg
Description

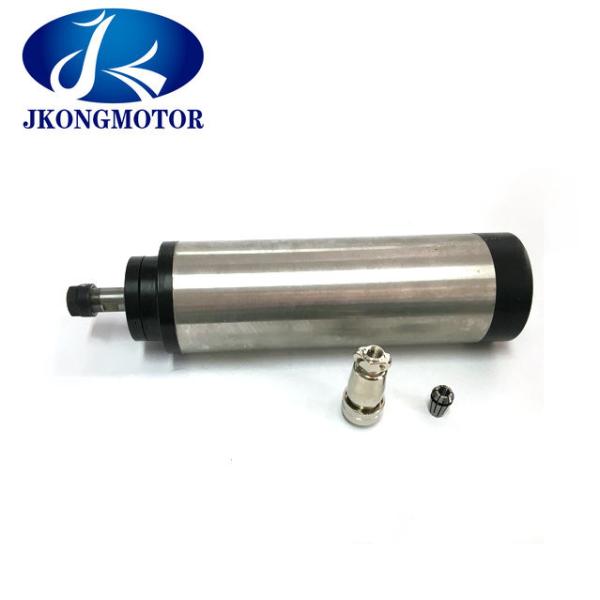

Φ100 3KW ER20 Air / Water Cooled Ac Spindle Motor 220V / 380V CNC Milling Machine

CHANGZHOU JKONGMOTOR CO., LTD sells 2 types of spindle motors for CNC machine, wood carving/engraving machine, which are air cooled type spindle motor from 800W to 7.5kW and water cooled spindle motor from 1.5kW to 6kW. They features with simple and compact configuration, stable performance, reasonable price, high precision bearings, long service life and high speed to 24000rpm. Working at 3 phase 300Hz/400Hz 380V AC power supply, need to be equipped with VFD to use.

Provide:

1. water cooling:800w,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2 .air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw

Features:

Cooling: Air cooling, Power: 3kW, Current: 10A, Collet: ER20

Voltage: 220V/380V AC at 300/400Hz, cooled spindle motor speed: 1-18000/24000 R/min

Fast response, strong overload capacity, low noise and high mechanical precision.

Tight sealing and two-layer dustproof design.

Cooling: Water cooling, Power: 3kW, Current: 10A, Collet: ER20

Voltage: 220V/380V AC at 400Hz, cooled spindle motor speed: 1-24000 R/min

Fast response, strong overload capacity, low noise and high mechanical precision.

Tight sealing and two-layer dustproof design.

Model Speep (RPM)

Power

(KW)

Voltate

(V)

current

(A)

 frequency
(HZ)

weight

(KG)

 cool Phase
JK1 Φ65 *183 1-2.4 0.8 220 6.5 400 2.5 air 3
JK2 Φ65 *208 1-2.4 1.5 220 8 400 3.2 air 3
JK3 Φ80*200 1-2.4 1.5 220 8 400 3.7 air 3
JK4 Φ105*300 1-1.8 3 220 10 300 8.3 air 3
JK10 89*98*300 1-1.8 3 220-380 10 300 8.8 air 3
JK12 89*98*320 1-1.8 4.5 220-380 12 300 9.5 air 3
JK5 Φ65*165 1-2.4 0.8 220 6.5 400 3 water 3
JK6 Φ80*160 1-2.4 1.2 220 7 400 4 water 3
JK7Φ80*170 1-2.4 1.5 220 8 400 4.5 water 3
JK8 Φ80*200 1-2.4 2.2 220 8.5 400 5.7 water 3
JK9 Φ100*230 1-2.4 3 220-380 10 400 10.2 water 3

Electrical Specification:

Φ100 3KW ER20 Ac Spindle Motor Air / Water Cooled 220V For CNC Milling Machine

Φ100 3KW ER20 Ac Spindle Motor Air / Water Cooled 220V For CNC Milling Machine

Matching inverter: 3kw inverter

Dimensions: (Unit=mm)

Φ100 ER20 AIR COOLED:

Φ100 3KW ER20 Ac Spindle Motor Air / Water Cooled 220V For CNC Milling Machine

Φ100 ER20 WATRE COOLED:

Φ100 3KW ER20 Ac Spindle Motor Air / Water Cooled 220V For CNC Milling Machine

Φ100 3KW ER20 Ac Spindle Motor Air / Water Cooled 220V For CNC Milling Machine

.

Common faults and troubleshooting methods

Trouble Cause Solution
The voltage axis does not run after power-on 1. The inverter has no output or the setting is incorrect Check that the output setting of the AC is correct
2.The plug is not inserted check the plug and the connection
3. The plug connection is not good
4. The spindle wire package is burned out replace the wire package
Run for a few seconds and then shut down after starting the machine 1. Water damage to the insulation of the cable package drying the cable package
2. High temperature causes insulation damage to the wire package. Replace the wire package
3. Overcurrent protection caused by phase loss operation Check motor wiring
4. Start-up time is too short Extended acceleration time
After turning on for a few seconds, the motor emits smoke or the casing becomes hot. 1. The inverter has no output voltage, overrate and the electric spindle brand voltage, and the frequency does not match. Check the basic frequency setting of the inverter.
2. Incorrect setting of the inverter Reset the inverter
3. Waterway problems Check if the waterway is unblocked
The nut is loose when starting Wrong rotation Change direction by brand
High sound absorption and vibration 1. The bearing wears out and produces weight. Replace the bearing
2. Damaged parts accuracy affects dynamic balance. Check dynamic balance
3. The spindle has a big runout. Replace the spindle
Nuts loose during shutdown Downtime is too short Extend the deceleration time
