3&4 Axis CNC Breakout Board TB6600 18 - 40 VDC 0A - 4.5A High Speed for nema17 stepper motor
3&4 Axis CNC Breakout Board TB6600 18 - 40 VDC 0A - 4.5A High Speed for nema17 stepper motor
3&4 Axis CNC Breakout Board TB6600 18 - 40 VDC 0A - 4.5A High Speed for nema17 stepper motor
3&4 Axis CNC Breakout Board TB6600 18 - 40 VDC 0A - 4.5A High Speed for nema17 stepper motor
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Jkongmotor
Model Number :
TB6600
Price :
US $29 - 32 / Pieces
MOQ :
3-10pcs
Certification :
CE, ROHS,ISO9001
Packaging Details :
with export carton . big quantity with pallet
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
30000 pcs/month
Motor Type :
Stepper Motor Driver
Weight :
0.6kg
voltage :
18V-40V
Current :
0A-4.5A
Certified :
CE ROHS
Matched Motor :
Nema23 stepping motor
Description

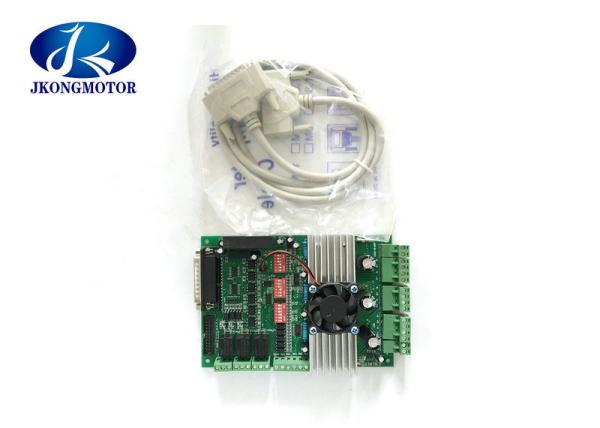

3&4 Axis 18 - 40 VDC 0A - 4.5A CNC Breakout Board TB6600 With Cheap Price for nema17 stepper motor

The 4AXis-TB6600 four-axis stepper motor driver designed and produced by our company adopts high-performance microstep control chip TB6600. The open microcomputer can design the control function into the drive board according to the requirements of users and form a minimum control system.
The control panel is suitable for driving any two - or four-phase hybrid stepping motor of small and medium size.
It has 8-grade current adjustable function, maximum current 4.5a, can support up to 42V voltage, and has microstep function of up to 16 subdivisions.
Support MACH2, MACH3 series software, support KCAM4 series software, widely used in mold processing, plane engraving and other application fields.
The new bipolar constant-current chopper technology makes the motor run with high precision, low vibration, low noise, stable operation, safe and convenient, which is the preferred product of DIY enthusiasts and carving machine manufacturers.

Hardware Features

  • Supports MACH3, KCAM4, EMC2 etc…
  • Can drive four channels 4.5A stepper motors, input voltage up to 18V - 40V.
  • Resolution 1, 1/2, 1/4, 1/8, 1/16 micro stepping output.
  • 100% Full DC-DC high-speed optical isolation to protect the user's computer and equipment.
  • Four channels of 0.4 - 4.5A adjustable output current for 2/4 phase bipolar stepper driver.
  • Build with 1 ways relay output and 5 ways limit interface.
  • Automatic idle-current reduction.

Pins define

LPT pins Pin symbols Functions
1 PWM 0-10V output control
2 STEPX X axis pulse
3 DIRX X axis direction
4 STEPY Y axis pulse
5 DIRY Y axis direction
6 STEPZ Z axis pulse
7 DIRZ Z axis direction
8 STEPC C axis pulse
9 DIRA C axis direction
10 LIMIT-1 LPT input signal 1
11 LIMIT-2 LPT input signal 2
12 LIMIT-3 LPT input signal 3
13 LIMIT-4 LPT input signal 4
14 ENABLE_ALL All axis enable input
15 LIMIT-5 LPT input signal 5
16 NO USE
17 RELAY Relay control
18-25 GND Common GND for PC

Current Settings

current 0.4A 1.6A 2.6A 3.2A 3.8A 4.0A 4.3A 4.5A
1 ON OFF ON OFF ON OFF ON OFF
2 ON ON OFF OFF ON ON OFF OFF
3 ON ON ON ON OFF OFF OFF OFF

Micro steps settings

Micro steps NC 1 1/2 1/2 1/4 1/8 1/16 NC
4 OFF OFF OFF OFF ON ON ON ON
5 OFF OFF ON ON OFF OFF ON ON
6 OFF ON OFF ON OFF ON OFF

ON
