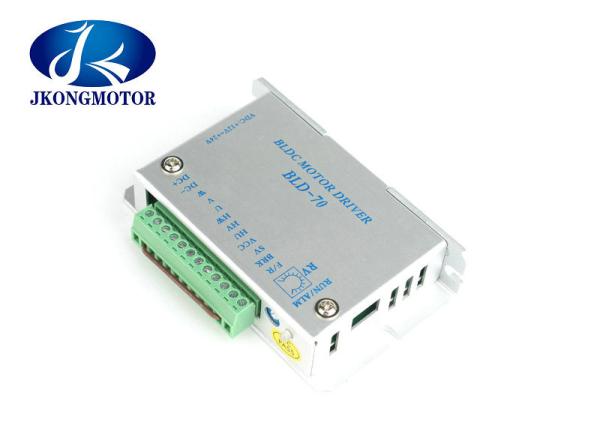

10V~30VDC 0A-5A Brushless Dc Motor Driver JKBLD70 For 0-70W Bldc Motor

Description:

The JKBLD70 is a high performance, cost-effective 3 phase BLDC motor drive

which can provide power output 70VA max. The design is based on advanced current

control technology and feature high torque, low noise, low vibration, over current

protection, over load protection

Electrical Specifications:

Parameter Min Rated Max Unit
Motor Hall Sensor Angle 120°/240°
DC Power Input 10 24 30 V
Drive Current Output 3 5 A
Suitable Motor Speed 0 20000 rpm
Hall Sensor Voltage 4.5 6.25 6.5 V
Hall Sensor Current 20 mA
External Potentiometer 10K Ω

Connection Definition:

Mark Definition
DC+/DC- DC power input (DC10V~DC30V)
U,V,W Motor lead wire
Hu,Hv,Hw Hall sensor lead wire
Vcc Hall sensor power supply +(+6.25V) and external potentiometer power supply +
DC- Hall sensor power supply -
SV External potentiometer
F/R Direction: F/R connect to DC- :CCW F/R disconnect to DC- :CW
BRK Quick brake: BRK connect to DC- : running BRK disconnect to DC- : brake

Speed Adjustment Instruction:

A． Motor speed adjusted by the internal potentiometer RV

B． Motor speed adjusted by the external potentiometer

C． Motor speed adjusted by analog signal 0V~+5V input

Connection:

JKBLD70 3 Phase BLDC Motor Driver 10V~30VDC 5A For 70W BLDC Motor

Mechanical Drawings:

JKBLD70 3 Phase BLDC Motor Driver 10V~30VDC 5A For 70W BLDC Motor
