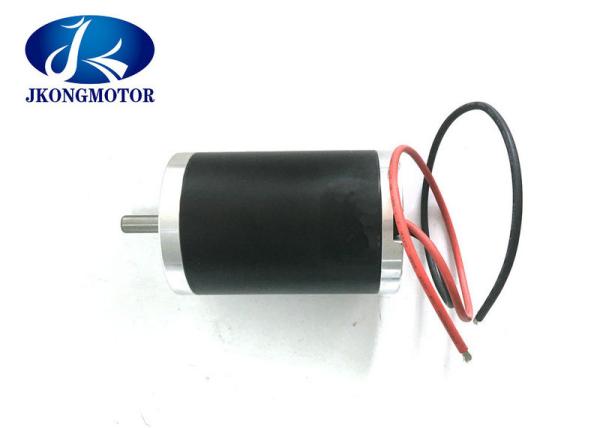

Permanent Magnet Brushed Electric Motor 63mm Series Single Shaft 230V 314W
Permanent Magnet Brushed Electric Motor 63mm Series Single Shaft 230V 314W
Permanent Magnet Brushed Electric Motor 63mm Series Single Shaft 230V 314W
Permanent Magnet Brushed Electric Motor 63mm Series Single Shaft 230V 314W
Specifications
Brand Name :
Jkongmotor
Model Number :
63ZYT
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$14.5~US$47
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Model No. :
63ZYT
Shaft :
Single
Leads :
2
Rated Speed :
3000rpm-9500rpm
Rated Torque :
0.15N.m-0.5N.m
Output Power :
52W-314W
Description

63mm Series Permanent Magnet Brush Dc Motor 12V - 230V 50W - 314W

Motor technical parameter:

* Shaft HRC 36~40 ; NMB ball bearing

* Hard ferrit magnet, 2- poles

* Protection class IP 50

* Insulation class: F, operating temperature range:-40°C~+140°C

* CE and ROHS certified

Options:

* Customized voltage, winding, shaft, mounting, and lead configurations

* EMI/RFI suppression circuit; Thermal protection

* High temperature Class H insulation

Electrical Specification:

Model

63ZYT

01A

63ZYT

01B

63ZYT

01C

63ZYT

02A

63ZYT

02B

63ZYT

02C

63ZYT

03A

63ZYT

03B

63ZYT

04A
Rated Voltage(VDC) 24V (option for 6v up to 60v)
Rated Speed(RPM) 3300 4000 9500 3000 4000 7500 3000 4000 3000
Rated Torque(N.m) 0.15 0.2 0.2 0.31 0.35 0.4 0.4 0.4 0.5
No LoadSpeed(RPM) 3600 4700 10000 3500 4700 8400 3500 4700 3600
Weight (KG) 1 1 1 1.2 1.2 1.2 1.35 1.35 1.5
Motor Length(MM) 95 95 95 110 110 110 125 125 140
Output Power(W) 52 84 200 97 147 314 126 168 157
