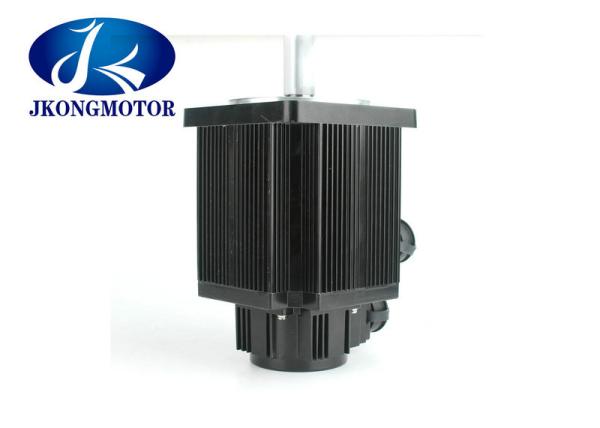

130ST Series 220V three phase ac motors High Torque Servo Motor 7.7N.M 2000W 7.5A 2500RPM
130ST Series 220V three phase ac motors High Torque Servo Motor 7.7N.M 2000W 7.5A 2500RPM
130ST Series 220V three phase ac motors High Torque Servo Motor 7.7N.M 2000W 7.5A 2500RPM
130ST Series 220V three phase ac motors High Torque Servo Motor 7.7N.M 2000W 7.5A 2500RPM
Specifications
Brand Name :
Jkongmotor
Model Number :
130ST-M07725
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$275~US$310
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
10000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Shaft :
Single
Rated Speed :
2500rpm
Rated Torque :
7.7N.m
Output Power :
2KW
Voltage :
220V
Driver :
JK-G2A3215
Description

130ST Series 220V AC Servo Motor Kit / 7.7N.m High Torque 2000W 7.5A 2500RPM

Specification of 130ST series 220V AC servo motor kit:

Insulation resistance——500VDC 100MW Min
Insulation strength——1500VAC 1Minute

Environment temperature—— -20℃ ～ +50℃

Insulation glass——B

Motor 130ST-M04025 130ST-M05025 130ST-M06025 130ST-M07720 130ST-M07730
Power(KW) 1.0 1.25 1.5 1.5 2.3
Hoding torque(N.m) 4 5 6 7.7 7.7
Rated speed(rpm) 2500 2500 2500 2000 3000
Nominal current(A) 4.5 5.6 6.8 6.8 10.5
Rotor inertia(Kg㎡) 0.85×10-3 1.06×10-3 1.26×10-3 1.58×10-3 1.58×10-3
Machanical time-constant(Ms) 3.75 3.07 2.83 2.44 2.44
Encoder line nmber(P/R) 2500
Motor winding plue Winding lead wire A B C PE
Plug serial number 2 3 4 1
Encoder plug
Signal 5V 0V A+ A- B+ B- Z+ Z- U+ U- V+ V- W+ W- PE
Plug serial number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1

Insulation rank B
Appropriate environment temperature 0-55℃ Humidity : ﹤90%(no dewdrop)
Protection rank IP65
Weight(KG) 7.4 7.9 8.6 9.5

Installation dimension of AC servo motor: unit=mm

130ST Series 220V three phase ac motors High Torque Servo Motor 7.7N.M 2000W 7.5A 2500RPM

Our service:

We do also manufacture other products,such as nema8,nema11,nema14,nema16,nema17,nema23,nema24,nema34,nema42,nema52 stepper motor;

nema11,nema17,nema23,nema24,nema34 stepper motor with gearbox.

linear stepper motor,closed loop stepper motor,stepper motor with brake,stepper motor sriver;

42mm,57mm,60mm,80mm,86mm,110mm,130mm brushless dc motor;

bldc motor with gearbox,bldc motor driver;

brush dc motor,spindle motor,ac servo motor kit,couplings,pulley,power supply and so on.

130ST Series 220V three phase ac motors High Torque Servo Motor 7.7N.M 2000W 7.5A 2500RPM130ST Series 220V three phase ac motors High Torque Servo Motor 7.7N.M 2000W 7.5A 2500RPM
