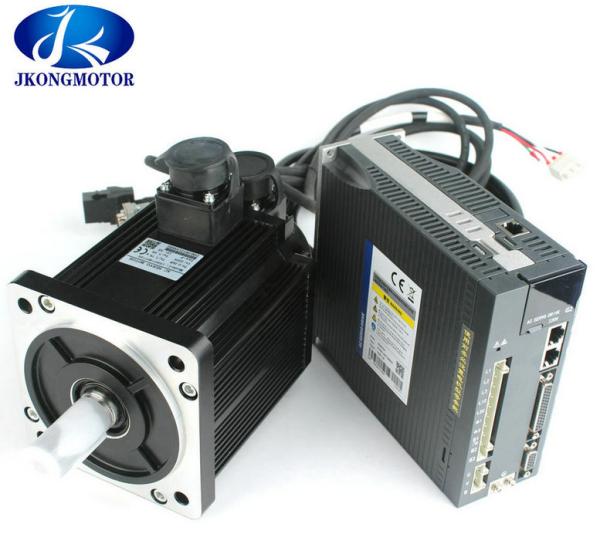

3 Phase AC Motor 1000W AC Servo Motor 80mm High Torque 4N.M 2500rpm With Driver Kit
3 Phase AC Motor 1000W AC Servo Motor 80mm High Torque 4N.M 2500rpm With Driver Kit
3 Phase AC Motor 1000W AC Servo Motor 80mm High Torque 4N.M 2500rpm With Driver Kit
3 Phase AC Motor 1000W AC Servo Motor 80mm High Torque 4N.M 2500rpm With Driver Kit
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Jkongmotor
Model Number :
80ST-M04025
Certification :
CE, ROHS,ISO9001
Price :
US $239-268 / Sets
MOQ :
3-10pcs
Packaging Details :
with export carton . big quantity with pallet
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
10000 pcs/month
Holding Torque :
4N.m
Current / Phase :
4.4A
Color :
Black
Power :
1000W
speed :
2500rpm
driver :
JK-G2A3208
Description
1000W AC Servo Motor 80mm High Torque 4N.M 2500rpm With Driver Kit
Product Specification:

Insulation resistance——500VDC 100MW Min
Insulation strength——1500VAC 1Minute

Environment temperature—— -20℃ ～ +50℃

Insulation glass——B

Electrical specifications of AC servo motor:

Item Model No. Holding torque Rated speed Rated current Rated power Driver
Nm rpm A KW
1 40ST-M00130 0.16 3000 0.4 0.05 JK-G2A3204
2 40ST-M00330 0.32 3000 0.6 0.1 JK-G2A3204
3 60ST-M00630 0.637 3000 1.5 0.2 JK-G2A3204
4 60ST-M01330 1.3 3000 2.8 0.4 JK-G2A3204
5 60ST-M01930 1.9 3000 3.5 0.6 JK-G2A3208
6 80ST-M01330 1.3 3000 2 0.4 JK-G2A3204
7 80ST-M02430 2.39 3000 3 0.75 JK-G2A3208
8 80ST-M03520 3.5 2000 3 0.73 JK-G2A3208
9 80ST-M04025 4 2500 4.4 1 JK-G2A3208
10 90ST-M02430 2.39 3000 3 0.75 JK-G2A3208
12 90ST-M03520 3.5 2000 3 0.73 JK-G2A3208
13 90ST-M04025 4 2500 4.4 1 JK-G2A3208
14 110ST-M02030 2 3000 2.5 0.6 JK-G2A3215
15 110ST-M04030 4 3000 5 1.2 JK-G2A3215
16 110ST-M05030 5 3000 6 1.5 JK-G2A3215
17 110ST-M06030 6 3000 6 1.8 JK-G2A3215
18 130ST-M04025 4 2500 4 1 JK-G2A3215
19 130ST-M05025 5 2500 5 1.3 JK-G2A3215
20 130ST-M06015 6 1500 4.3 0.95 JK-G2A3215
21 130ST-M06025 6 2500 6 1.5 JK-G2A3215
22 130ST-M07725 7.7 2500 7.5 2 JK-G2A3215
23 130ST-M10015 10 1500 6 1.5 JK-G2A3215
24 130ST-M10025 10 2500 10 2.6 JK-G2A3215
25 130ST-M15015 15 1500 9.5 2.3 JK-G2A3215

We are factory of many types of motor.
