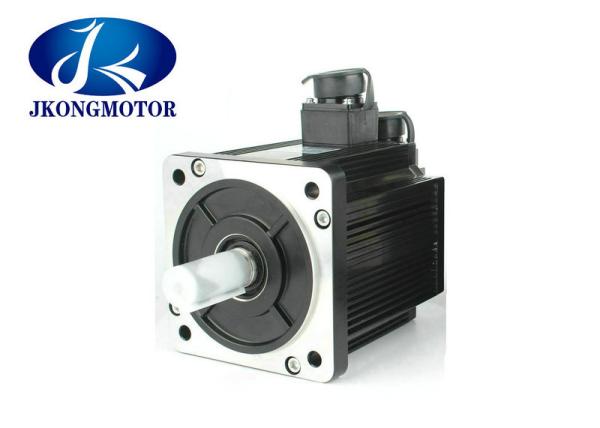

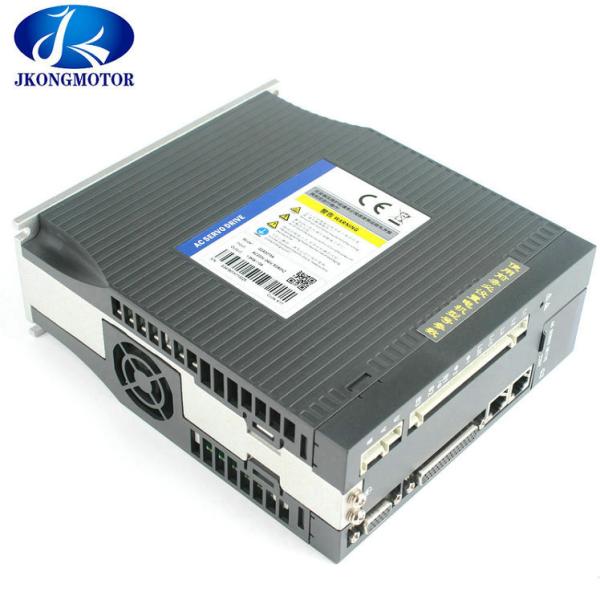

3 phase servo motor 1500W Black AC Servo Motor 6N.M 3000rpm 220VAC With Driver Kit
3 phase servo motor 1500W Black AC Servo Motor 6N.M 3000rpm 220VAC With Driver Kit
3 phase servo motor 1500W Black AC Servo Motor 6N.M 3000rpm 220VAC With Driver Kit
3 phase servo motor 1500W Black AC Servo Motor 6N.M 3000rpm 220VAC With Driver Kit
Specifications
Brand Name :
Jkongmotor
Model Number :
130ST-M06025
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
Price :
US $266 - US$299
Packaging Details :
with export carton . big quantity with pallet
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Payment Terms :
T/T , paypal , Western Union, L/C
MOQ :
3-10pcs
Supply Ability :
10000 PCS/MONTH
Type :
Servo Motor
Frequency :
50/60Hz
Output Power :
1500W
Efficiency :
IE 4
Speed :
3000rpm
Voltage :
220v/380v
Color :
black
Rated torque :
6N.m
Description

3Phase servo motor 1500W 6N.m 3000rpm AC Servo Motor 220VAC Along With Driver Kit

Product Description of 3phase servo motor:
Item Model No. Holding torque Rated speed Rated current Rated power Driver
Nm rpm A KW
14 110ST-M02030 2 3000 2.5 0.6 JK-G2A3215
15 110ST-M04030 4 3000 5 1.2 JK-G2A3215
16 110ST-M05030 5 3000 6 1.5 JK-G2A3215
17 110ST-M06030 6 3000 6 1.8 JK-G2A3215
18 130ST-M04025 4 2500 4 1 JK-G2A3215
19 130ST-M05025 5 2500 5 1.3 JK-G2A3215
20 130ST-M06015 6 1500 4.3 0.95 JK-G2A3215
21 130ST-M06025 6 2500 6 1.5 JK-G2A3215
22 130ST-M07725 7.7 2500 7.5 2 JK-G2A3215
23 130ST-M10015 10 1500 6 1.5 JK-G2A3215
24 130ST-M10025 10 2500 10 2.6 JK-G2A3215
25 130ST-M15015 15 1500 9.5 2.3 JK-G2A3215

The AC servo motor is 3phase,the driver is single phase.

3 phase servo motor 1500W Black AC Servo Motor 6N.M 3000rpm 220VAC With Driver Kit

Product feature:

1. Capacity range: 0.1kW~3kW

2 . Input voltage: AC 200V~230V,single-phase/three-phase or three-phase input.

3 . Location /Speed/Torque control mode.

4. Encode resolution is 17 bit(160000 ppr).

5. High speed pulse input (4MPPS).

6 .Support Modbus communication protocol(communication port: RS-485 / RS-422 / RS-232)

7 .The realization of high precision positioning control:

1) ASDA-B2 series support 17bit (160000 ppr) high resolution encode, satisfy the need of machine and equipment’s high resolution location control and Smooth running at low speed.

2) With three sets of automatic resonance suppression filter, effectively restrain the vibration of agency action, so it run more smoothly and more complete.

8 . Simple operation, saving cost:

1) Power cable and encode cable shared with the ASDA-B series, and match the ECMA series motor with the same size. It’s easy for the original customers directly upgraded to ASDA - B2 series.

2) Panel control operation, can be directly set on the drive

3) Screw type wiring board design, does not need additional plug connector, saving time and saves cost.

4) Built-in retrogradation resistance (more than 400 w), do not take a wiring space.

Application:

Machining center tool storage control, Dividing assembly system, sealing machine, the shear machine, feeder, lathe, high speed winding machine, prober, cutting machine, PCB dispenser, make-up machine, filling equipment, electric discharge machine, print equipment, crochet machine, engraving machine.
