3d Printer Stepper Motor Nema17 42BYG High Torque 5.0kg.Cm D-Shaft CNC Stepper Motor
3d Printer Stepper Motor Nema17 42BYG High Torque 5.0kg.Cm D-Shaft CNC Stepper Motor
3d Printer Stepper Motor Nema17 42BYG High Torque 5.0kg.Cm D-Shaft CNC Stepper Motor
3d Printer Stepper Motor Nema17 42BYG High Torque 5.0kg.Cm D-Shaft CNC Stepper Motor
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Jkongmotor
Model Number :
JK42HS48-1684-08AF
Certification :
CE, ROHS,ISO9001
Price :
US $5 - 8 / Pieces
MOQ :
3-10pcs
Packaging Details :
with export carton . big quantity with pallet
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
30000 pcs/ month
Phase :
2
Type :
Hybrid
Step Angle(degrees) :
1.8 Degree
Holding Torque :
0.5N.m
Current / Phase :
1.68A
Temperature Rise :
80°Cmax
Dielectric strength :
500VDC for 1 minute
Max axial force :
10N
MOQ :
10pcs
Description

CNC Router Parts NEMA17 42HT 2phase Stepper Motor High Torque 5.0kg.cm 69oz.in With 5mm D-shaft

Product Description of 3d printer stepper motor nema 17:
Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

 Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH kg.cm No. g.cm g.cm Kg
JK42HS40-0406 1.8 40 0.4 30 30 2.6 6 150 54 0.28
JK42HS40-1704 1.8 40 1.7 1.5 2.3 4.2 4 150 54 0.28
JK42HS40-1684 1.8 40 1.68 1.65 3.2 3.6 4 150 54 0.28
JK42HS40-1206 1.8 40 1.2 3 2.7 2.9 6 150 54 0.28
JK42HS48-0406 1.8 48 0.4 30 25 3.1 6 260 68 0.35
JK42HS48-1684 1.8 48 1.68 1.65 2.8 4.4 4 260 68 0.35
JK42HS48-1206 1.8 48 1.2 3.3 2.8 3.17 6 260 68 0.35

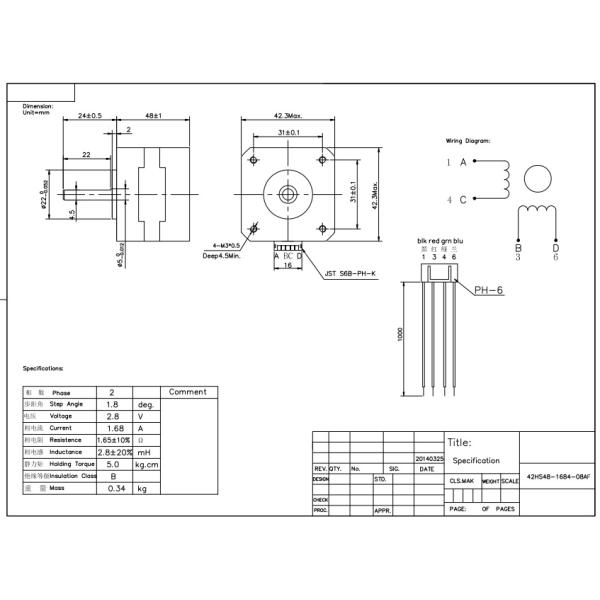

Drawing of cnc stepper motor:

3d Printer Stepper Motor Nema17 42BYG High Torque 5.0kg.Cm D-Shaft CNC Stepper Motor

3d Printer Stepper Motor Nema17 42BYG High Torque 5.0kg.Cm D-Shaft CNC Stepper Motor

3d Printer Stepper Motor Nema17 42BYG High Torque 5.0kg.Cm D-Shaft CNC Stepper Motor
