0.9 Degree Stepper Motor 42HM48-1684AF High Torque Stepper Motor 4.4kg.Cm for 3D printer
0.9 Degree Stepper Motor 42HM48-1684AF High Torque Stepper Motor 4.4kg.Cm for 3D printer
0.9 Degree Stepper Motor 42HM48-1684AF High Torque Stepper Motor 4.4kg.Cm for 3D printer
0.9 Degree Stepper Motor 42HM48-1684AF High Torque Stepper Motor 4.4kg.Cm for 3D printer
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Jkongmotor
Model Number :
JK42HM48-1684AF
Certification :
CE, ROHS,ISO9001
Price :
US $4.9 - 8 / piece
MOQ :
3-10pcs
Packaging Details :
with export carton . big quantity with pallet
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
30000 pcs/month
Phase :
2
Type :
Hybrid
Step Angle(degrees) :
0.9 degree
Holding Torque :
4.4kg.cm
Current / Phase :
1.68A
Product name :
0.9degree nema17 stepping motor
Motor length :
48mm
Weight :
0.4KG
MOQ :
10pcs
Description

0.9 Degree Stepper Motor 42HM48-1684AF High Torque Stepper Motor 4.4kg.Cm for 3D printer


Genaral Specification of 0.9degree stepper motor:

Item

Specifications

Step Angle

0.9°

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

(Dielectric Strength

500VAC for 1minute

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)

Max. radial force

28N (20mm from the flange)

Max. axial force

10N

Electrical Specification of nema 17 stepper motor:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Motor

Length

( °)

(L)mm

A

Ω

mH

kg.cm

No.

g.cm

g.cm

Kg

JK42HM48-1684AF

0.9

48

1.68

1.65

4.1

4.4

4

250

68

0.35

Note: We can also manufacture products according to customer's requirements.
Drawing:

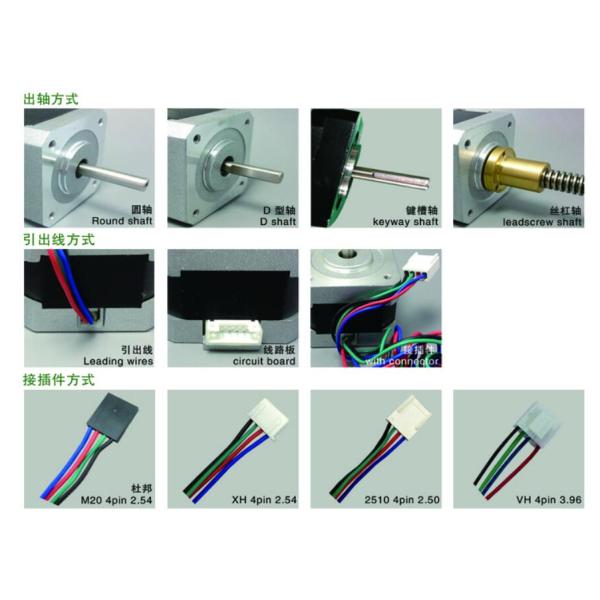

Customized parts:
0.9 Degree Stepper Motor 42HM48-1684AF High Torque Stepper Motor 4.4kg.Cm for 3D printer
0.9 Degree Stepper Motor 42HM48-1684AF High Torque Stepper Motor 4.4kg.Cm for 3D printer
