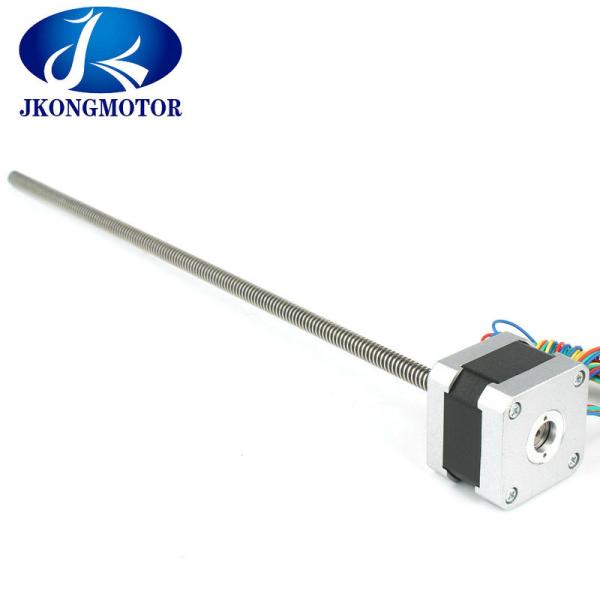

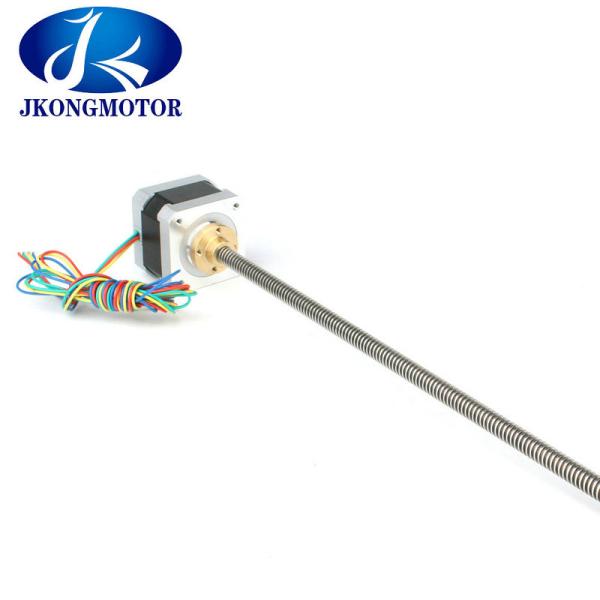

3d printer stepper motor Nema17 42HS40-1704ACL High Torque 4.2kg.Cm TR8*2 for CNC machine
3d printer stepper motor Nema17 42HS40-1704ACL High Torque 4.2kg.Cm TR8*2 for CNC machine
3d printer stepper motor Nema17 42HS40-1704ACL High Torque 4.2kg.Cm TR8*2 for CNC machine
3d printer stepper motor Nema17 42HS40-1704ACL High Torque 4.2kg.Cm TR8*2 for CNC machine
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Jkongmotor
Model Number :
JK42HS40-1704ACL
Certification :
CE, ROHS,ISO9001
Price :
US $9 - 20 / Pieces
MOQ :
3-10pcs
Packaging Details :
with export carton . big quantity with pallet
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
30000 pcs/month
Phase :
2
Type :
Hybrid
Step Angle :
1.8°
Holding Torque :
4.2kg.cm
Current / Phase :
1.7A
Body color :
black & silver
MOQ :
10pcs
Description

NEMA17 42HS40-1704ACL External Linear Actuator Stepper Motor High Torque 4.2kg.cm TR8*2 for cnc machine

Electrical Specification of nema 17 linear stepper motor:

Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

 Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH kg.cm No. g.cm g.cm Kg
JK42HS40-1704 1.8 40 1.68 1.5 2.3 4.2 4 150 54 0.28

Screw rod Specification of lead screw:

Screw Diameter(mm) Screw Lead(mm) Screw Pitch(mm) Travel per step(mm)
Tr8 1 1 0.005
2 2 0.01
3 1.5 0.015
4 2 0.02

Drawing:
