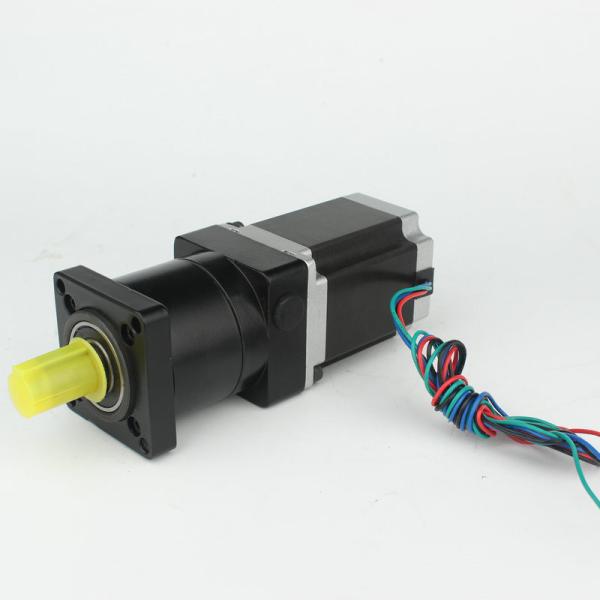

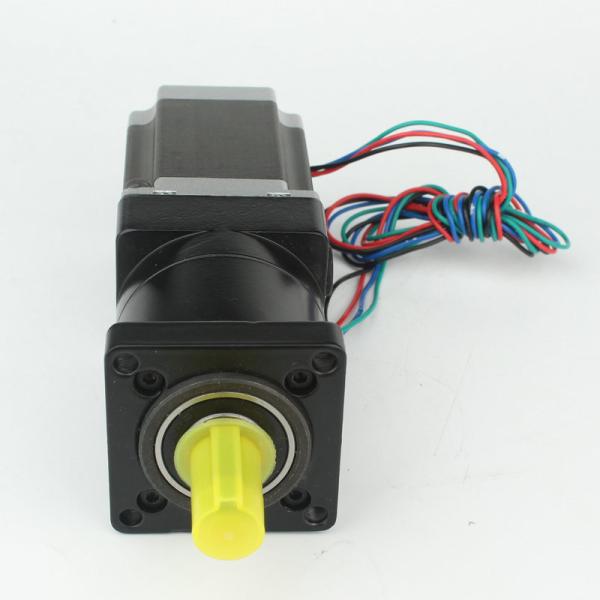

High Torque Stepper Motor With Gearbox High Efficiency Nema 34 Planetary Gearbox
High Torque Stepper Motor With Gearbox High Efficiency Nema 34 Planetary Gearbox
High Torque Stepper Motor With Gearbox High Efficiency Nema 34 Planetary Gearbox
High Torque Stepper Motor With Gearbox High Efficiency Nema 34 Planetary Gearbox
High Torque Stepper Motor With Gearbox High Efficiency Nema 34 Planetary Gearbox
High Torque Stepper Motor With Gearbox High Efficiency Nema 34 Planetary Gearbox
High Torque Stepper Motor With Gearbox High Efficiency Nema 34 Planetary Gearbox
High Torque Stepper Motor With Gearbox High Efficiency Nema 34 Planetary Gearbox
High Torque Stepper Motor With Gearbox High Efficiency Nema 34 Planetary Gearbox
High Torque Stepper Motor With Gearbox High Efficiency Nema 34 Planetary Gearbox
High Torque Stepper Motor With Gearbox High Efficiency Nema 34 Planetary Gearbox
High Torque Stepper Motor With Gearbox High Efficiency Nema 34 Planetary Gearbox
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Jkongmotor
Model Number :
JK86HS
Certification :
CE, ROHS,ISO9001
Price :
US $75-124 / Units | 3 Unit/Units (Min. Order)
MOQ :
3-10pcs
Packaging Details :
with export carton . big quantity with pallet
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Payment Terms :
T/T , paypal , Western Union, L/C
Phase :
2, 2-phase
Type :
Hybrid
Step Angle(degrees) :
1.8 Degree
Holding Torque :
2.4- 12.2N.M
Current / Phase :
2.8A-6.2A
Motor length :
68-155
Color :
Black
stepper driver model :
JKD2060AC
Description

Planetary Gearbox Stepping motor NEMA34

Genaral Specification of high torque stepper motor with gearbox :

Housing Material

Metal

Bearing at Output

Ball Bearings

Max.Radial Load(12mm from flange)

≤550N

Max.Shaft Axial Load

≤500N

Efficiency with full load %

>90%

Average lifetime Hour

>10000

Electrical Specifications of nema 34 stepper motor:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)

(L)mm

A

Ω

mH

N.m

No.

Kg.cm

g.cm^2

Kg

JK86HS68-3004

1.8

68

3.0

1.2

7.1

3.5

4

0.8

1000

1.7

JK86HS68-2808

1.8

68

2.8

1.4

3.9

2.4

8

0.8

1000

1.7

JK86HS78-5504

1.8

78

5.5

0.46

4

4.6

4

1.2

1400

2.3

JK86HS78-4208

1.8

78

4.2

0.75

3.4

4.6

8

1.2

1400

2.3

JK86HS115-6004

1.8

115

6.0

0.6

6.5

8.7

4

2.4

2700

3.8

JK86HS115-4208

1.8

115

4.2

0.9

6

8.7

8

2.4

2700

3.8

JK86HS155-6204

1.8

155

6.2

0.75

9

12.2

4

3.6

4000

5.4

JK86HS155-4208

1.8

155

4.2

1.25

8

12.2

8

3.6

4000

5.4

Precision Gearbox Electrical Specification(1):

Gearbox Electrical Specification(2):


Note: We can also manufacture products according to customer's requirements.

Q1: What about your warranty?

A: We guarantee is one year . for sea order . is 15months.

Q2: Do you have any certificates?

A: Yes, we have. All the motors have been approved by CE and Rohs.

Q3: Do you offer OEM AND ODM service?

A: Yes. We can supply OEM andmake customized design for any specific application.

Q4: How can be your brand distributor?

A: We will check your capacity and help you promote and expand the market.

Q5: What's the delivery time ?

A: Except special order. For samples usually 10-14 working days . for batch order . usually 20-25days.
