Geared Stepper Motor Nema 34 high torque Stepper Motor Gear Reducer For Turnstiles And Swing Gates
Geared Stepper Motor Nema 34 high torque Stepper Motor Gear Reducer For Turnstiles And Swing Gates
Geared Stepper Motor Nema 34 high torque Stepper Motor Gear Reducer For Turnstiles And Swing Gates
Geared Stepper Motor Nema 34 high torque Stepper Motor Gear Reducer For Turnstiles And Swing Gates
Specifications
Brand Name :
Jkongmotor
Model Number :
NEMA34 JK86HSP
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$52~US$109
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Shaft :
Single or Double
Leads :
4 / 8
Current :
2.8A - 6.2A
Holding Torque :
2.4N.m - 12.2N.m
Gear Ratio :
3 - 216
Bearing at Output :
Ball Bearing
Type :
stepper motor with planetary gearbox
Step angle(degrees) :
1.8 Degree
Description

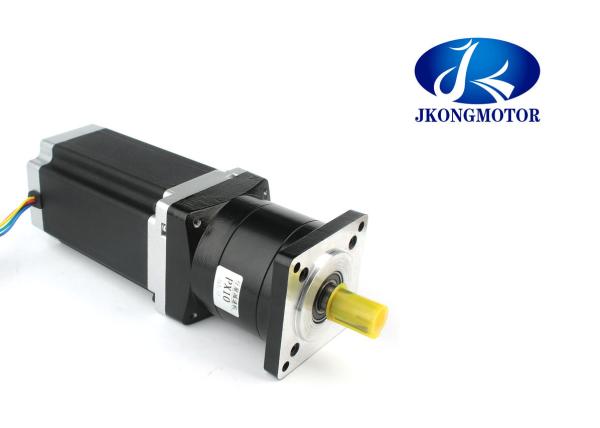

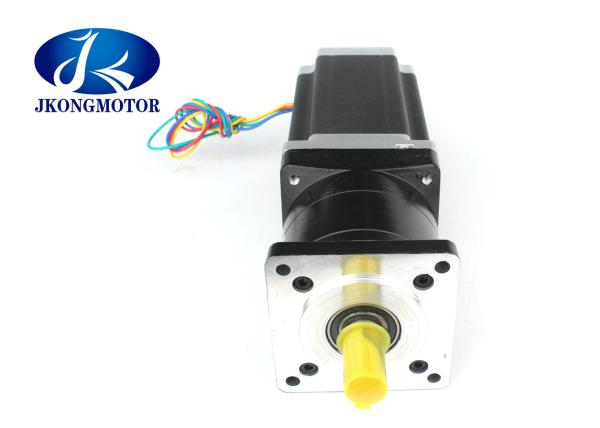

Nema34 Geared Stepper Motor Stepping Motor With Plentary Gearbox


1. Genaral Specification of Geared Stepper Motor Nema 34:

Housing Material Metal
Bearing at Output Ball Bearings
Max.Radial Load(12mm from flange) ≤550N
Max.Shaft Axial Load ≤500N
Backlash arcmin (arcmin) ≤18



2. Electrical Specification of nema 34 cnc stepper motor:
86HS Hybrid Stepping Motor Specifications:

Model No.

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

(L)mmAΩmHN.mNo.Kg.cmg.cmKg
JK86HS68-3004683.01.27.13.540.810001.7
JK86HS68-2808682.81.43.92.480.810001.7
JK86HS78-5504785.50.4644.641.214002.3
JK86HS78-4208784.20.753.44.681.214002.3
JK86HS115-60041156.00.66.58.742.427003.8
JK86HS115-42081154.20.968.782.427003.8
JK86HS155-62041556.20.75912.243.640005.4
JK86HS155-42081554.21.25812.283.640005.4


86HS Planetary Gearbox Specifications:

StageOne stage Two stage Three stage
Ratio3,4,5,610,12,16,20,24,30,3648,52.8,64,96,144,216
Length (mm) L27993107
Max.Input Rpm (Rpm)300030003000
Max.Radial load (N)550550550
Max.Shaft axial load (N)500500500
Efficiency (%)858075
Lubricating system Long-term


Matching Stepper motor Driver: JKD5060S

3. Dimensions: (Unit=mm)
Geared Stepper Motor Nema 34 high torque Stepper Motor Gear Reducer For Turnstiles And Swing Gates

4. Wiring Diagram:
Geared Stepper Motor Nema 34 high torque Stepper Motor Gear Reducer For Turnstiles And Swing Gates
5. Application

  • CNC routers
  • Engraving Machines
  • Stage lighting control
  • Security surveillance
  • Video equipment
  • Carving machine
  • Digital controlled machinery
  • Medical instrument
  • Other automatic equipment.
