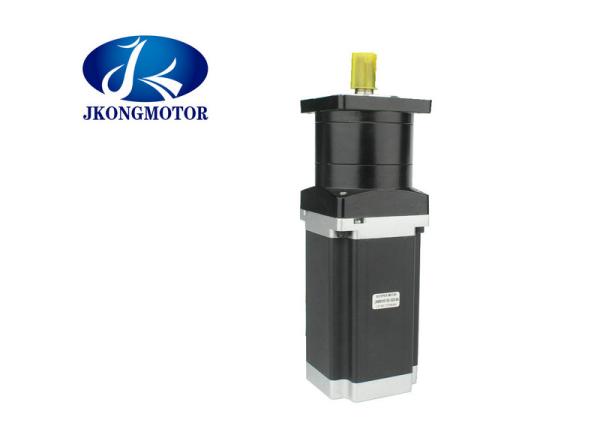

Nema 34 Stepper Motor High Torque 3.5N.M - 12.2N.M With Gearbox stepper motor gear reducer
Nema 34 Stepper Motor High Torque 3.5N.M - 12.2N.M With Gearbox stepper motor gear reducer
Nema 34 Stepper Motor High Torque 3.5N.M - 12.2N.M With Gearbox stepper motor gear reducer
Nema 34 Stepper Motor High Torque 3.5N.M - 12.2N.M With Gearbox stepper motor gear reducer
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Jkongmotor
Model Number :
JK86HS
Certification :
CE, ROHS,ISO9001
Price :
US $52-120 / Pieces
MOQ :
3-10pcs
Packaging Details :
with export carton . big quantity with pallet
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
30000 pcs/month
Key word :
gear stepper motor
Type :
Hybrid
Step Angle :
1.8°
Holding Torque :
3.5N.m - 12.2N.m
Current / Phase :
2.8A - 6A
Voltage :
36V - 110V
Motor length :
67mm - 155mm
Wires :
4 / 8
Description

High Torque Stepper Motor Nema34 3.5N.m - 12.2N.m With Gearbox Ratio 3:1 - 216:1

Genaral Specification of stepper motor gear reducer:
Housing Material : Metal
Bearing at Output : Ball Bearings
Max.Radial Load(12mm from flange) : ≤550N
Max.Shaft Axial Load : ≤500N
Backlash arcmin (arcmin) : ≤18

Electrical Specifications of nema 34 cnc stepper motor:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass
( °) (L)mm A Ω mH N.m No. Kg.cm g.cm Kg
JK86HS68-3004 1.8 68 3.0 1.2 7.1 3.5 4 0.8 1000 1.7
JK86HS68-2808 1.8 68 2.8 1.4 3.9 2.4 8 0.8 1000 1.7
JK86HS78-5504 1.8 78 5.5 0.46 4 4.6 4 1.2 1400 2.3
JK86HS78-4208 1.8 78 4.2 0.75 3.4 4.6 8 1.2 1400 2.3
JK86HS115-6004 1.8 115 6.0 0.6 6.5 8.7 4 2.4 2700 3.8
JK86HS115-4208 1.8 115 4.2 0.9 6 8.7 8 2.4 2700 3.8
JK86HS155-6204 1.8 155 6.2 0.75 9 12.2 4 3.6 4000 5.4
JK86HS155-4208 1.8 155 4.2 1.25 8 12.2 8 3.6 4000 5.4


Gearbox Electrical Specification of planetary gearbox:

Stage One stage Two stage Three stage
Ratio 3,4,5,6 10,12,16,20,24,30,36 48,52.8,64,96,144,216
Length (mm) L2 79 93 107
Max.Input Rpm (Rpm) 3000 3000 3000
Max.Radial load (N) 550 550 550
Max.Shaft axial load (N) 500 500 500
Efficiency (%) 85 80 75
Lubricating system Long-term

Nema 34 Stepper Motor High Torque 3.5N.M - 12.2N.M With Gearbox stepper motor gear reducer
