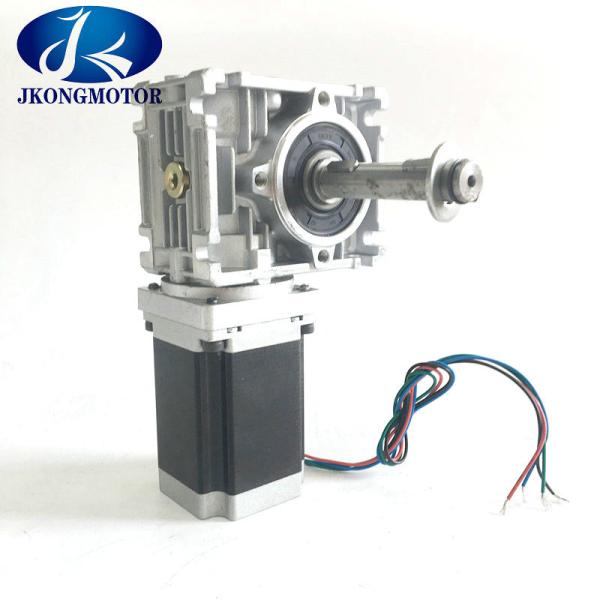

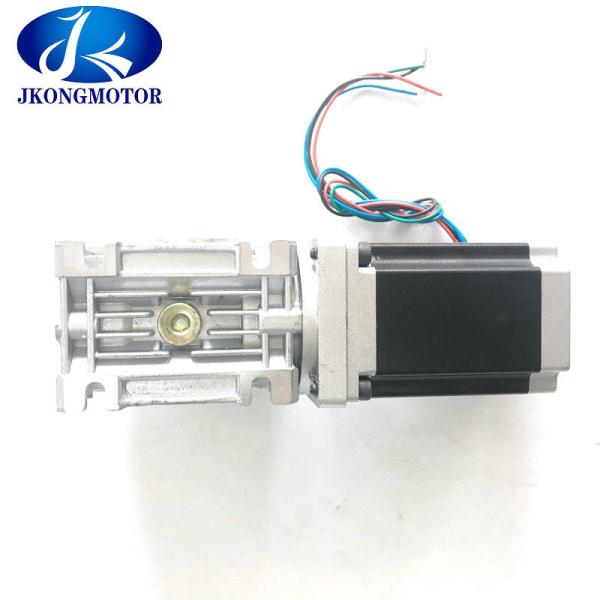

2 Phase Worm Gear Stepping Motor For Nema 23 / Nema 34 1.8 Step Angle Gear stepper motor
2 Phase Worm Gear Stepping Motor For Nema 23 / Nema 34 1.8 Step Angle Gear stepper motor
2 Phase Worm Gear Stepping Motor For Nema 23 / Nema 34 1.8 Step Angle Gear stepper motor
2 Phase Worm Gear Stepping Motor For Nema 23 / Nema 34 1.8 Step Angle Gear stepper motor
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Jkongmotor
Model Number :
nema 23 nema34
Certification :
CE, ROHS,ISO9001
Price :
US $29.5 -93 / Pieces
MOQ :
3-10pcs
Packaging Details :
with export carton . big quantity with pallet
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
30000 PCS/MONTH
Phase :
2
Type :
Hybrid
Step Angle(degrees) :
1.8
Holding Torque :
3.4kg.cm - 12.2N.m
Current / Phase :
0.2A - 6A
Product name :
NEMA34 stepper motor with worm gear
Description

Worm Geared Stepper Motor For Nema 23 & Nema 34 Stepper Motor

Gearbox Ratio: 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100

Nema23 Stepper Motor Specification:

Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

 Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH N.m No. g.cm g.cm Kg
JK57HS41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
JK57HS51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230 0.59
JK57HS56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68
JK57HS64-2804 1.8 64 2.8 0.8 2.3 1 4 400 300 0.75
JK57HS76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440 1.1
JK57HS82-3004 1.8 82 3 1.2 4 2.1 4 1000 600 1.2
JK57HS112-3004 1.8 112 3 1.6 7.5 3 4 1200 800 1.4

Nema34 Stepper Motor Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass
( °) (L)mm A Ω mH N.m No. Kg.cm g.cm Kg
JK86HS68-3004 1.8 68 3.0 1.2 7.1 3.5 4 0.8 1000 1.7
JK86HS68-2808 1.8 68 2.8 1.4 3.9 2.4 8 0.8 1000 1.7
JK86HS78-5504 1.8 78 5.5 0.46 4 4.6 4 1.2 1400 2.3
JK86HS78-4208 1.8 78 4.2 0.75 3.4 4.6 8 1.2 1400 2.3
JK86HS115-6004 1.8 115 6.0 0.6 6.5 8.7 4 2.4 2700 3.8
JK86HS115-4208 1.8 115 4.2 0.9 6 8.7 8 2.4 2700 3.8
JK86HS155-6204 1.8 155 6.2 0.75 9 12.2 4 3.6 4000 5.4
JK86HS155-4208 1.8 155 4.2 1.25 8 12.2 8 3.6 4000 5.4
Product tags

nema 17 geared stepper motor

,

geared stepper motor nema 17

,

nema 23 stepper motor
