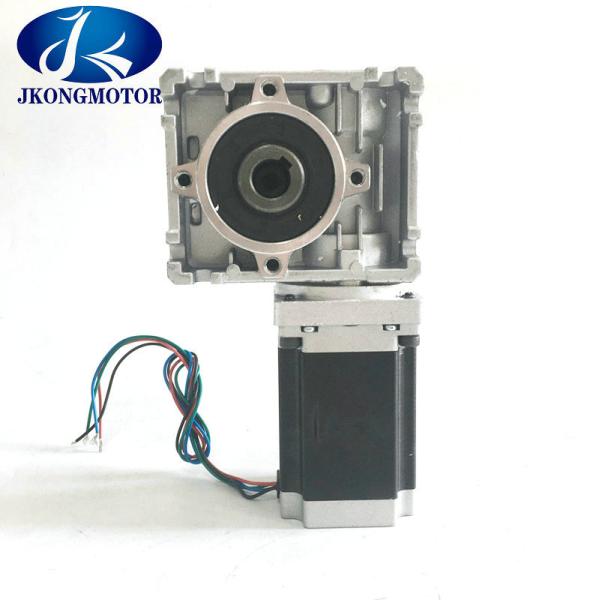

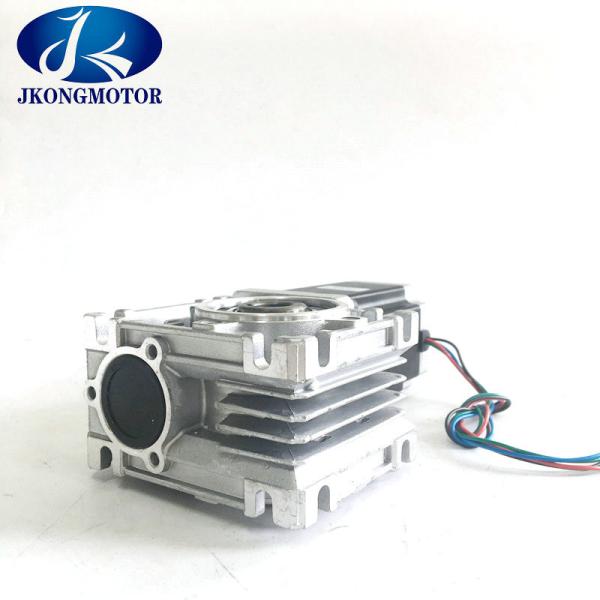

Worm Gear Stepper Motor 4 Leads Nema 23 Small Geared Stepper Motor 1.2N.M 2.8A Current For Industrial
Worm Gear Stepper Motor 4 Leads Nema 23 Small Geared Stepper Motor 1.2N.M 2.8A Current For Industrial
Worm Gear Stepper Motor 4 Leads Nema 23 Small Geared Stepper Motor 1.2N.M 2.8A Current For Industrial
Worm Gear Stepper Motor 4 Leads Nema 23 Small Geared Stepper Motor 1.2N.M 2.8A Current For Industrial
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Jkongmotor
Model Number :
JK57HS56-2804SV
Certification :
CE, ROHS,ISO9001
Price :
US $30 - 39 / Pieces
MOQ :
3-10pcs
Packaging Details :
with export carton . big quantity with pallet
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
30000 pcs/month
Phase :
2
Type :
Hybrid
Step Angle(degrees) :
1.8 Degree
Holding Torque :
1.2N.m
Current / Phase :
2.8A
Weight :
0.68kg
Motor length :
56mm
Leads(No.) :
4
Description

Stepper Motor Worm Gear / Stepping Motor Nema23 1.2N.m With Gearbox Ratio From 1:5 to 1:100

Genaral Specification of worm gear stepper motor nema 23:

Item

Specifications

Step Angle

1.8°

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)

Max. radial force

75N (20mm from the flange)

Max. axial force

15N

Deails of worm gearbox:

Worm Gear Stepper Motor 4 Leads Nema 23 Small Geared Stepper Motor 1.2N.M 2.8A Current For Industrial

Worm gearbox ratio:

There are 7.5:1 10:1 15:1 20:1 30:1 40:1 50:1 60:1 80:1

Worm Gear Stepper Motor 4 Leads Nema 23 Small Geared Stepper Motor 1.2N.M 2.8A Current For Industrial

The size of RV40 and RV50:

Worm Gear Stepper Motor 4 Leads Nema 23 Small Geared Stepper Motor 1.2N.M 2.8A Current For Industrial

Electrical Specification of stepper motor with gearbox:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)

(L)mm

A

Ω

mH

N.m

No.

g.cm

g.cm

Kg

JK57HS56-2006

1.8

56

2

1.8

2.5

0.9

6

350

280

0.68

JK57HS56-2108

1.8

56

2.1

1.8

2.5

1

8

350

280

0.68

JK57HS56-2804

1.8

56

2.8

0.9

2.5

1.2

4

350

280

0.68

Wiring Diagram of nema23 stepper motor:

We can customized according to your special requirements.

The other gearbox in stepper motor:

Worm Gear Stepper Motor 4 Leads Nema 23 Small Geared Stepper Motor 1.2N.M 2.8A Current For Industrial
