Specifications
Brand Name :
Jkongmotor
Model Number :
NEMA11 JK28HSP
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$15.5~US$28
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Shaft :
Single or Double
Leads :
4 / 6
Current :
0.67A
Holding Torque :
600g.cm - 1200g.cm
Ratio 1 :
3.71 / 5.18 /13.76 / 19.2 / 26.8
Ratio 2 :
51 / 71 / 99.5
Description

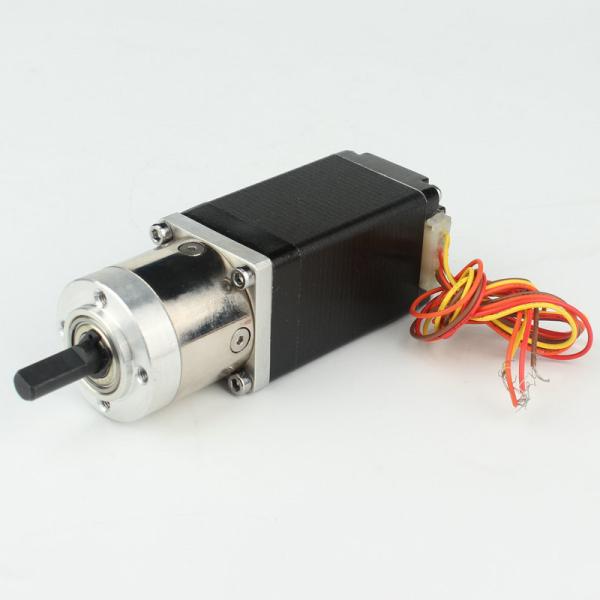

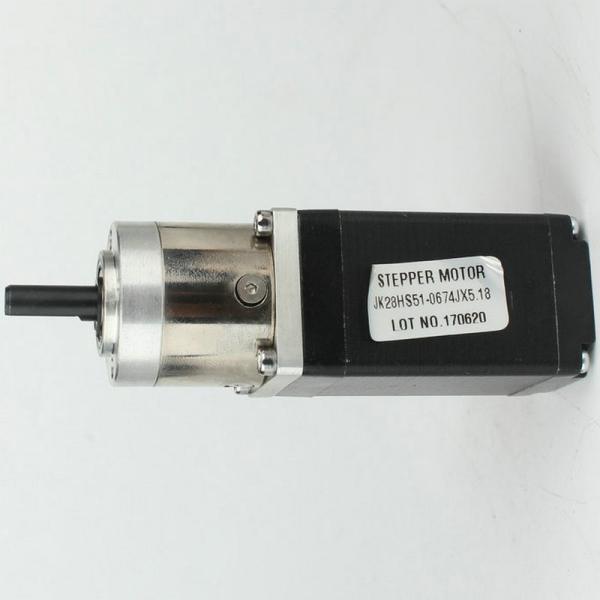

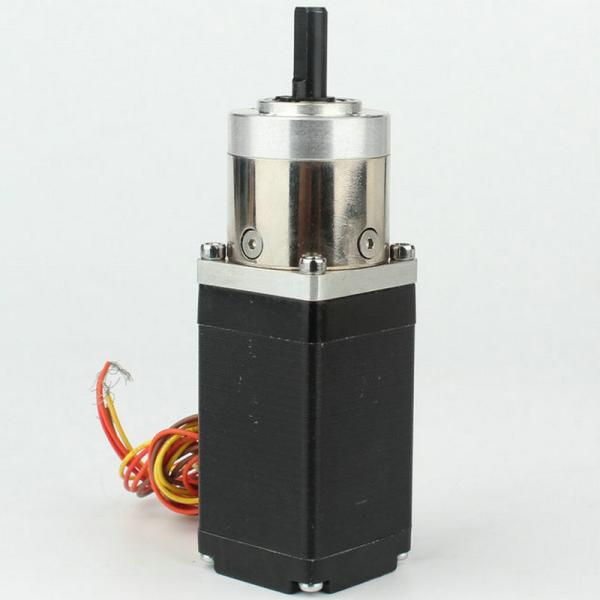

Nema11 Mini Planetary Geared Stepper Motor With 4 Or 6 Leading Wires

1. Genaral Specification of small stepper motor:

  • Step Angle : 1.8°
  • Temperature Rise : 80℃max
  • Ambient Temperature : -20℃~+50℃
  • Insulation Resistance : 100 MΩ Min. ,500VDC
  • Dielectric Strength : 500VAC for 1minute
  • Shaft Radial Play : 0.02Max. (450g-load)
  • Shaft Axial Play : 0.08Max. (450g-load)
  • Max. radial force : 28N (20mm from the flange)
  • Max. axial force : 10N
Housing Material Metal
Bearing at Output Ball Bearings
Max.Radial Load(12mm from flange) ≤35N
Max.Shaft Axial Load ≤25N

Radial Play of Shaft (near to Flange)

 ≤0.07mm
Axial Play of Shaft ≤0.3mm
Backlash at No-load 1.5°


2. Electrical Specification of mini stepper motor:


28HS Hybrid Stepping Motor Specifications:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Rotor Inertia

Motor

Weight
( °) (L)mm A Ω mH g.cm No. g.cm Kg
JK28HS32-0674 1.8 32 0.67 5.6 3.4 600 4 9 0.11
JK28HS45-0674 1.8 45 0.67 6.8 4.9 950 4 12 0.14
JK28HS51-0674 1.8 51 0.67 9.2 7.2 1200 4 18 0.2

28HS Planetary Gearbox Specifications:

Reduction ratio 3.71 5.18 13.76 19.2 26.8 51 71 99.5
Number of gear trains 1 2 3
Length(L2) mm 30 37 45
Max.rated torque kg.cm 5 7 9
Short time permissible torque kg.cm 15 21 27
Weight g 200 250 300



3. Dimensions: (Unit=mm)
stepper motor gear reducer Mini Planetary Geared Stepper Motor Nema 11 Stepper Motor

stepper motor gear reducer Mini Planetary Geared Stepper Motor Nema 11 Stepper Motor

stepper motor gear reducer Mini Planetary Geared Stepper Motor Nema 11 Stepper Motor

4. Applications:

Use for

  • Industry of automation
  • CNC routers
  • Medical and health care equipment
  • 3d printer machines
  • Packing devices
  • Information Technology

  • Digital controlled machinery

Our Company offers three major series of products:

  • Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor.
  • We are always continues develop new type models.
