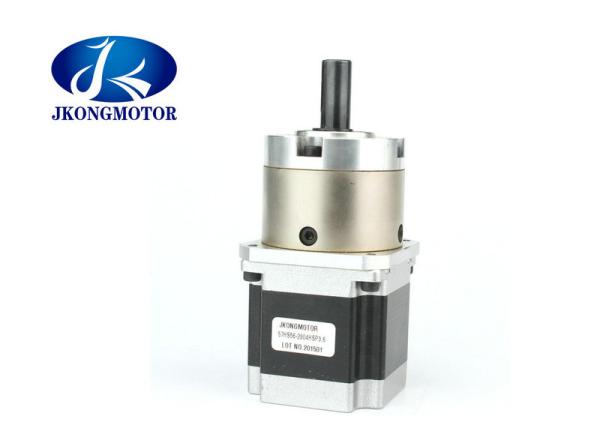

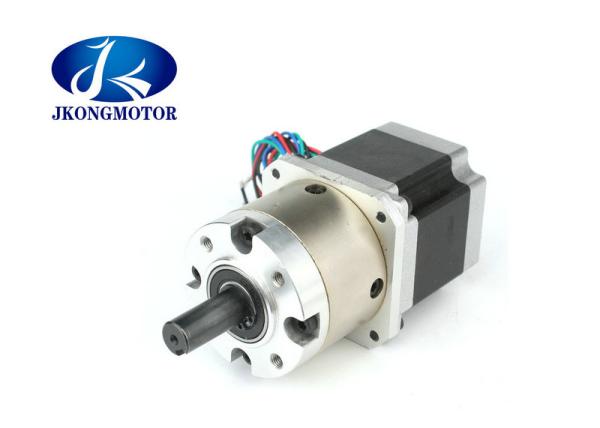

geared stepper motor nema 23,high torque stepper motor with gearbox 57mm 3.1n.m
geared stepper motor nema 23,high torque stepper motor with gearbox 57mm 3.1n.m
geared stepper motor nema 23,high torque stepper motor with gearbox 57mm 3.1n.m
geared stepper motor nema 23,high torque stepper motor with gearbox 57mm 3.1n.m
Specifications
Brand Name :
Jkongmotor
Model Number :
NEMA23 JK57HSP
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$27~US$64
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Shaft :
Single or Double
Leads :
4 / 6
Current :
2.8A - 4.2A
Holding Torque :
0.55N.m - 3.1N.m
Step Angle :
1.8 degree
Backlash at No-load :
0 - 2.5 degree
Description


Planetary Geared Stepper Motor Nema23 Stepping Motor With Gearbox

1. Genaral Specification of planetary gearbox stepper motor:

  • Housing Material Metal
  • Bearing at Output Ball Bearings
  • Max.Radial Load(12mm from flange) ≤250N
  • Max.Shaft Axial Load ≤100N
  • Radial Play of Shaft (near to Flange) ≤0.08mm
  • Axial Play of Shaft ≤0.4mm
  • Backlash at No-load 2.5°

2. Electrical Specification of High Torque Stepper Motor With Gearbox:
57HS Hybrid Stepping Motor Specifications:

Model No.

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

(L1)mmAΩmHN.mNo.g.cmg.cmKg
JK57HS41-2804412.80.71.40.5542501500.47
JK57HS51-2804512.80.832.21.0143002300.59
JK57HS56-2804562.80.92.51.243502800.68
JK57HS64-2804642.80.82.3144003000.75
JK57HS76-2804762.81.13.61.8946004401.1
JK57HS82-30048231.242.1410006001.2
JK57HS100-42041004.20.7533411007001.3
JK57HS112-42041124.20.93.83.1412008001.4



57HS Planetary Gearbox Specifications:

Reduction ratio3.64.251315182347556577121154187220260307
Number of gear trains1234
Length(mm)37.849.560.871.9
Max.rated torque(N.m)3122430
Short time permissible torque(N.m)9367290
Efficiency( %)90%81%73%66%
Weight(g)4896818711066


Matching Stepper motor Driver: JKD5060S

3. Dimensions: (Unit=mm)
geared stepper motor nema 23,high torque stepper motor with gearbox 57mm 3.1n.m
