Specifications
Brand Name :
Jkongmotor
Model Number :
Integrated Dc Servo Motor
Certification :
CE, Rohs, Reach, ISO9001, ISO14001
Place of Origin :
China
MOQ :
10pcs
Price :
USD30-80
Payment Terms :
T/T, Western Union, paypal, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-35days
Packaging Details :
sample with export carton . big quantity with pallet
Model :
JKIDS60-P02A
Power :
200W / 400W
Voltage :
24V ?48V
Rated Current :
12A / 11A
Speed :
3000rpm
Rated Torque :
0.64N.m / 1.27N.m
Encoder :
17Bit / 32Bit
Motor Length :
94mm / 112mm
Communication Methods :
Pulse / RS485 / Canopen
Description
Jkongmotor 48VDC 1.27nm 400W RS485 Canopen Integrated DC Servo Motor with Driver Together with Brake or Gearbox​
Product Description:

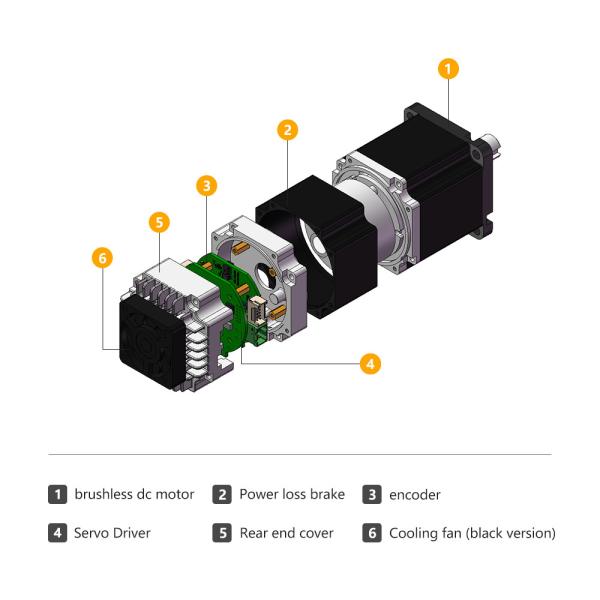

A motor with a controller or a driver, and an encoder, is an integrated motor. Integrated motors save wiring between the motor, controller and the control cabinet. By minimizing the machine complexity and installation efforts, the overall system cost is reduced
Characteristics of Integrated Dc Servo Motor
1. Compact: Integrated design of integrated drive motor Easy installation, small footprint, and simple wiring.
2. Multiple motion control modes: Supports the CiA402 standard protocol, including Relative position mode, absolute position mode, speed Mode, torque mode, and origin regression mode.
3. low-power consumption: Adopting low internal resistance MOS to ensure motor performance Excellent torque utilization while reducing motor power consumption And heat generation, effectively extending the service life of
the motor.
4. control mode: Supports pulse/RS485/CANopen.
5. Multi segment position speed function: With multi segment position function and multi segment speed function.
6. Safe and reliable: Driver built-in in place and alarm output signal Convenient for upper computer detection and control built-in Multiple alarm functions such as over differential, over undervoltage, and over temperature Can ensure the safe operation of processing equipment.

Jkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or Gearbox

1. Company name abbreviation
2. Product series model, indicating that the motor is an IDS series, referring to the acronym for integrated DC servo
3. Frame number (42/57/60/80), expressed in millimeters by the dimensions of the motor casing and mounting plate
4. Control method optional (P/R/C) P represents pulse, R represents RS485, and C represents CANopen bus
5. The motor model, such as (01/02/03/04/05/06), represents the model of the motor 6.Encoder type: A represents a 17 bit single turn absolute encoder


Jkongmotor has a wide range of micro motor production lines in the industry, including Stepper Motor, DC Servo Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.
Features:
1. Adopting a new 32-bit M4+core with 120M or 240M main frequency
2. Stable torque characteristics from low to high speeds, with high speed and precision
3. Equipped with brake resistor interface to prevent damage to the electromechanical braking system
4. Wide speed range, low temperature rise, and high efficiency
5. Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
6. Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
7. Configure a 17bit single turn absolute encoder
Communication method:
1. Pulse type
2. RS485 MOdbus RTU network type
3. CANopen network type
Protection level:
Waterproof type: IP30, IP54, IP65, optional
Usage:
Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc
42mm Integrated Dc Servo Motor:
Model Power (W) Rated Voltage (VDC) Rated Current (A) Rated Speed (rpm) Rated Torque (N.m) Total height L (mm) Encoder Control method (optional)
JKIDS42-P01A 26 24 1.8 4000 0.0625 61 17bit Pulse RS485 CANopen
JKIDS42-P02A 53 24 3.3 4000 0.125 81 17bit Pulse RS485 CANopen
JKIDS42-P03A 78 24 4.5 4000 0.185 101 17bit Pulse RS485 CANopen
JKIDS42-P04A 78 24 4.5 3000 0.25 120 17bit Pulse RS485 CANopen

Jkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or Gearbox

Jkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or GearboxJkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or GearboxJkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or Gearbox

57mm Integrated Dc Servo Motor:

Model Power (W) Rated Voltage (VDC) Rated Current (A) Rated Speed (rpm) Rated Torque (N.m) Total height L (mm) Encoder Control method (optional)
JKIDS57-P01A 91 24/36 3.5 3000 0.29 101 17bit pulse RS485 CANopen
JKIDS57-P02A 140 24/36 5.4 3000 0.45 121 17bit pulse RS485 CANopen
JKIDS57-P03A 200 36/48 7.5 3000 0.64 141 17bit pulse RS485 CANopen

Jkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or Gearbox

Jkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or GearboxJkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or GearboxJkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or Gearbox

60mm Integrated Dc Servo Motor:

Model Power (W) Rated Voltage (VDC) Rated Current (A) Rated Speed (rpm) Rated Torque (N.m) Total height L (mm) Encoder Control method (optional)
JKIDS60-P01A 200 24 12 3000 0.64 94 17bit pulse RS485 CANopen
JKIDS60-P02A 400 48 11 3000 1.27 112 17bit pulse RS485 CANopen

Jkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or Gearbox

Jkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or GearboxJkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or GearboxJkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or Gearbox

80mm Integrated Dc Servo Motor:

Model Power (W) Rated Voltage (VDC) Rated Current (A) Rated Speed (rpm) Rated Torque (N.m) Total height L (mm) Encoder Control method (optional)
JKIDS80-P01A 750 48/72 19/12 3000 2.4 155 17bit pulse RS485 CANopen
JKIDS80-P02A 1000 72 17 3000 3.2 175 17bit pulse RS485 CANopen

Jkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or Gearbox

Jkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or GearboxJkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or GearboxJkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or Gearbox

Integrated Servo motor customized:

Jkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or Gearbox

Company Profile:

Jkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or Gearbox

Jkongmotor 48VDC 1.27nm 400W RS485 Canopen DC Integrated Servo Motor with Driver Together with Brake or Gearbox

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
