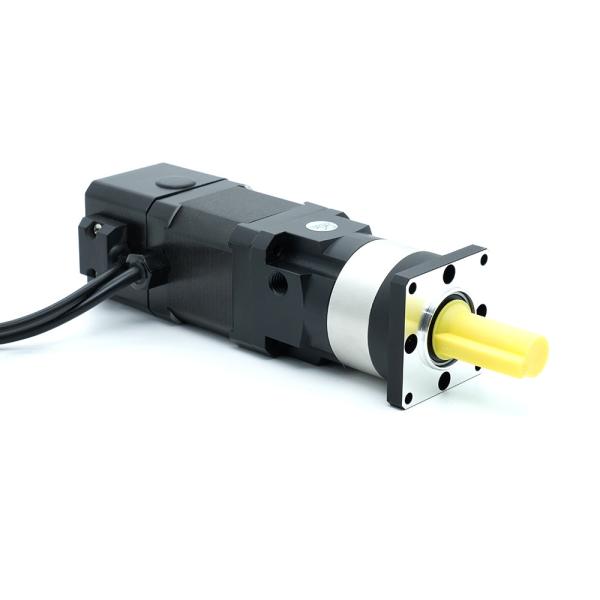

Jkongmotor 57bygh Electric Stepping Motor CNC Hybrid Geared Stepper Motor with Planetary Gearbox / Brake / Encoder

Specifications

Brand Name :

Jkongmotor

Model Number :

hybrid stepper motor

Certification :

CE, Rohs, Reach, ISO9001, ISO14001

Place of Origin :

China

MOQ :

10pcs

Price :

usd6~30

Payment Terms :

T/T, Western Union, paypal, L/C

Supply Ability :

100000pcs/month

Delivery Time :

For samples , 7-15 days / For batch , 15-35days

Packaging Details :

sample with export carton . big quantity with pallet

Model :

Nema 23 stepper motor

step angle :

0.9degree / 1.2degree / 1.8degree

motor length :

41mm to 112mm

current :

customized

no. of leads :

4/8

related parts :

encoder / brake / gearbox / integrated driver

Description

Jkongmotor 57bygh Electric Stepping Motor CNC Hybrid Geared Stepper Motor with Planetary Gearbox / Brake / Encoder

Product Description:

JKONGMOTOR stepping motor is a motor that converts electrical pulse signals into corresponding angular displacements or linear displacements. This small stepper motor can be widely used in various fields, such as a 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, automation equipment, etc.

Characteristics of Jkongmotor Stepper Motor

1. The magnetic steel is high grade,we usually use the SH level type.
2. The rotor is be coated,reduce burrs,working smoothly,less noise. We test the stepper motor parts step by step.
3. Stator is be test and rotor is be test before assemble.
4. After we assemble the stepper motor, we will do one more test for it, to make sure the quality is good.

Jkongmotor has a wide range of micro motor production lines in the industry, including Stepper Motor, DC Servo Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.

Jkongmotor Nema 23 ISS Integrated Stepper Servo motor:

Model	step Angle (1.8°)	phase Current (A)	Rated Resistance (0)	Rated Torque (N.m)	Total body height L (mm)	Encoder	Control method (optional)
JKISS57-P01A	1.8	2	1.4	0.55	65	1000ppr/17bit	pulse	RS485	CANopen
JKISS57-P02A	1.8	2.8	0.9	1.2	80	1000ppr/17bit	pulse	RS485	CANopen
JKISS57-P03A	1.8	2.8	1.1	1.89	100	1000ppr/17bit	pulse	RS485	CANopen
JKISS57-P04A	1.8	3	1.2	2.2	106	1000ppr/17bit	pulse	RS485	CANopen
JKISS57-P05A	1.8	4.2	0.75	2.8	124	1000ppr/17bit	pulse	RS485	CANopen
JKISS57-P06A	1.8	4.2	0.9	3	136	1000ppr/17bit	pulse	RS485	CANopen

0.9 degree nema 23 stepper motor:

Model No.	Step Angle	Motor Length	Current	Resistance	Inductance	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm2	Kg
JK57HM41-1006	0.9	41	1	5.7	8	3.9	6	210	120	0.45
JK57HM41-2804	0.9	41	2.8	0.7	2.2	5	4	210	120	0.45
JK57HM51-2006	0.9	51	2	1.6	2.2	7.2	6	380	280	0.68
JK57HM56-1006	0.9	56	1	7.4	17.5	9	6	400	300	0.7
JK57HM56-2006	0.9	56	2	1.8	4.5	9	6	400	300	0.7
JK57HM56-2804	0.9	56	2.8	0.9	3.3	12	4	400	300	0.7
JK57HM76-1006	0.9	76	1	8.6	23	13.5	6	680	480	1
JK57HM76-2006	0.9	76	2	3	7	13.5	6	680	480	1
JK57HM76-2804	0.9	76	2.8	1.15	5.6	18	4	680	480	1

1.2 degree nema 23 stepper motor:

Model No.	Step Angle	Motor Length	Current	Resistance	Inductance	Holding Torque	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	kg.cm	g.cm	g.cm2	Kg
JK57H3P42-5206	1.2	42	5.2	1.3	1.4	4.5	210	110	0.45
JK57H3P56-5606	1.2	56	5.6	0.7	0.7	9	400	300	0.75
JK57H3P79-5206	1.2	79	5.2	0.9	1.5	15	680	480	1.1

1.8 degree nema 23 stepper motor:

Model No.	Step Angle	Motor Length	Current	Resistance	Inductance	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm2	Kg
JK57HM41-1006	0.9	41	1	5.7	8	3.9	6	210	120	0.45
JK57HM41-2804	0.9	41	2.8	0.7	2.2	5	4	210	120	0.45
JK57HM51-2006	0.9	51	2	1.6	2.2	7.2	6	380	280	0.68
JK57HM56-1006	0.9	56	1	7.4	17.5	9	6	400	300	0.7
JK57HM56-2006	0.9	56	2	1.8	4.5	9	6	400	300	0.7
JK57HM56-2804	0.9	56	2.8	0.9	3.3	12	4	400	300	0.7
JK57HM76-1006	0.9	76	1	8.6	23	13.5	6	680	480	1
JK57HM76-2006	0.9	76	2	3	7	13.5	6	680	480	1
JK57HM76-2804	0.9	76	2.8	1.15	5.6	18	4	680	480	1

Product Drawing:
