Specifications
Brand Name :
Jkongmotor
Model Number :
Integrated Stepper Servo Motor
Certification :
CE, Rohs, Reach, ISO9001, ISO14001
Place of Origin :
China
MOQ :
10pcs
Price :
USD10-40
Payment Terms :
T/T, Western Union, paypal, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-35days
Packaging Details :
sample with export carton . big quantity with pallet
Model :
integrated stepper motor
key :
integrated stepper motor controller
keyword :
integrated stepper motor driver
keywords :
integrated stepper servo motor
product :
integrated lead screw stepper motor
Description

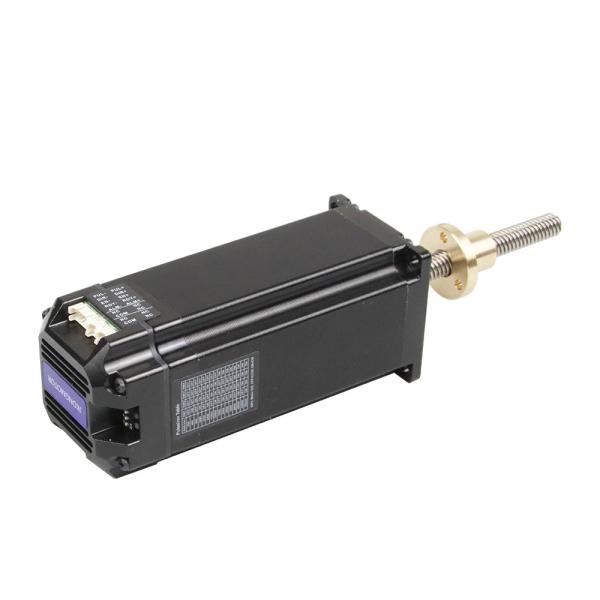

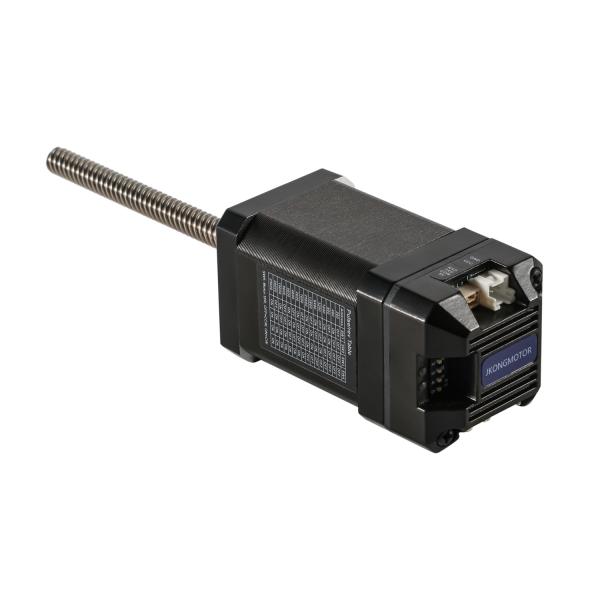

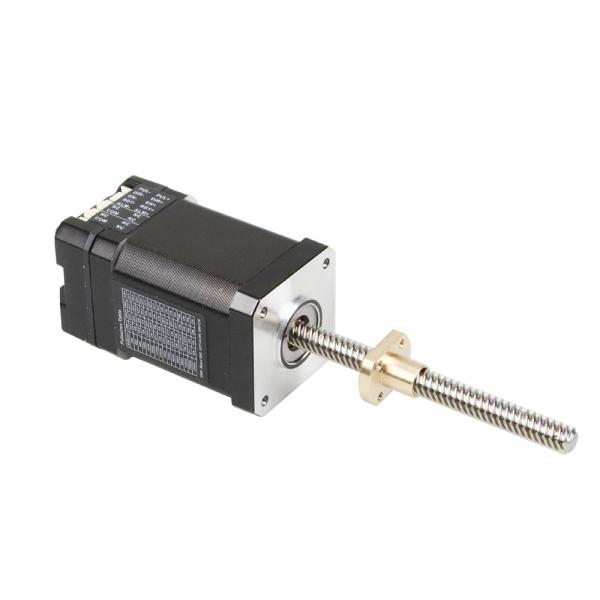

Best Price Deep Customized Linear External Non Captive Lead Screw Integrated Stepper Servo Motor with Driver for Medical
Product Description:
Characteristics of Integrated Stepper Servo Motor
1. Compact: Integrated design of integrated drive motor Easy installation, small footprint, and simple wiring.
2. Multiple motion control modes: Supports the CiA402 standard protocol, including Relative position mode, absolute position mode, speed Mode, torque mode, and origin regression mode.
3. low-power consumption: Adopting low internal resistance MOS to ensure motor performance Excellent torque utilization while reducing motor power consumption And heat generation, effectively extending the service life of
the motor.
4. control mode: Supports pulse/RS485/CANopen.
5. Multi segment position speed function: With multi segment position function and multi segment speed function.
6. Safe and reliable: Driver built-in in place and alarm output signal Convenient for upper computer detection and control built-in Multiple alarm functions such as over differential, over undervoltage, and over temperature Can ensure the safe operation of processing equipment.

Best Price Deep Customized Linear External Non Captive Lead Screw Integrated Stepper Servo Motor with Driver for Medical

1. Company name abbreviation
2. Product series model, indicating that the motor is an ISS series, referring to the acronym for integrated stepper servo
3. Frame number (42/57), expressed in millimeters by the dimensions of the motor casing and mounting plate
4. Control method optional (P/R/C) P represents pulse, R represents RS485, and C represents CANopen bus
5. The motor model, such as (01/02/03/04/05/06), represents the model of the motor
6.Encoder type: A represents 1000lines, B represents 2500lines, C represents a 17 bit single turn absolute encoder

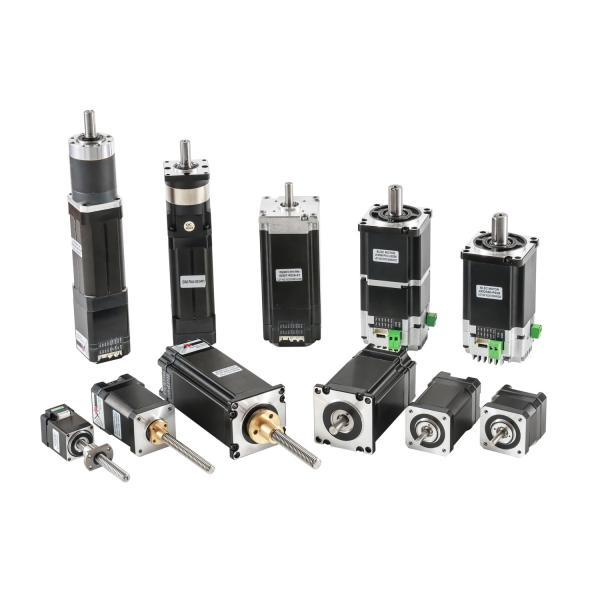

Jkongmotor has a wide range of micro motor production lines in the industry, including Stepper Motor, DC Servo Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.
Features:
1. Adopting a new 32-bit M4+core with 120M or 240M main frequency
2. Stable torque characteristics from low to high speeds, with high speed and precision
3. Equipped with brake resistor interface to prevent damage to the electromechanical braking system
4. Wide speed range, low temperature rise, and high efficiency
5. Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
6. Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
7. Configure a 17bit single turn absolute encoder
Communication method:
1. Pulse type
2. RS485 MOdbus RTU network type
3. CANopen network type
Protection level:
Waterproof type: IP30, IP54, IP65, optional
Usage:
Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc
42mm Integrated Stepper Servo Motor (Gearbox optional)
Model step Angle (1.8°) phase Current (A) Rated Resistance (0) Rated Torque (N.m) Total body height L (mm) Encoder Control method (optional)
JKISS42-P01A 1.8 1.3 2.1 0.22 54 1000ppr/17bit pulse RS485 CANopen
JKISS42-P02A 1.8 1.68 1.65 0.42 60 1000ppr/17bit pulse RS485 CANopen
JKISS42-P03A 1.8 1.68 1.65 0.55 68 1000ppr/17bit pulse RS485 CANopen
JKISS42-P04A 1.8 1.7 3 0.8 80 1000ppr/17bit pulse RS485 CANopen

Best Price Deep Customized Linear External Non Captive Lead Screw Integrated Stepper Servo Motor with Driver for Medical

Best Price Deep Customized Linear External Non Captive Lead Screw Integrated Stepper Servo Motor with Driver for MedicalBest Price Deep Customized Linear External Non Captive Lead Screw Integrated Stepper Servo Motor with Driver for MedicalBest Price Deep Customized Linear External Non Captive Lead Screw Integrated Stepper Servo Motor with Driver for Medical

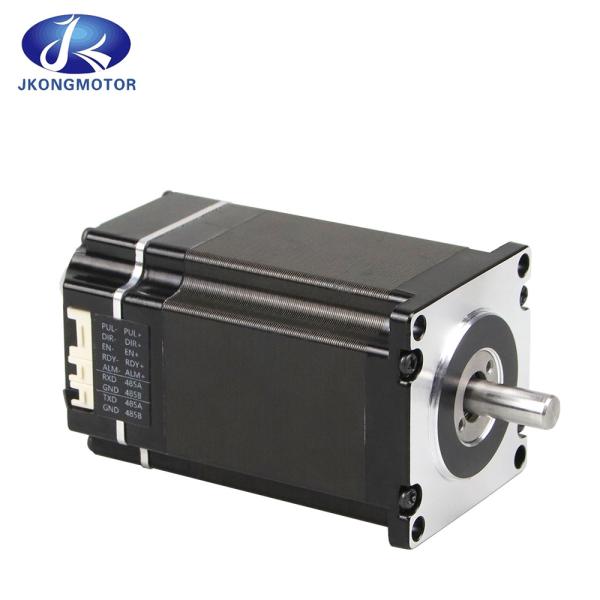

57mm Integrated Stepper Servo Motor (Gearbox optional)

Model step Angle (1.8°) phase Current (A) Rated Resistance (0) Rated Torque (N.m) Total body height L (mm) Encoder Control method (optional)
JKISS57-P01A 1.8 2 1.4 0.55 65 1000ppr/17bit pulse RS485 CANopen
JKISS57-P02A 1.8 2.8 0.9 1.2 80 1000ppr/17bit pulse RS485 CANopen
JKISS57-P03A 1.8 2.8 1.1 1.89 100 1000ppr/17bit pulse RS485 CANopen
JKISS57-P04A 1.8 3 1.2 2.2 106 1000ppr/17bit pulse RS485 CANopen
JKISS57-P05A 1.8 4.2 0.75 2.8 124 1000ppr/17bit pulse RS485 CANopen
JKISS57-P06A 1.8 4.2 0.9 3 136 1000ppr/17bit pulse RS485 CANopen
Best Price Deep Customized Linear External Non Captive Lead Screw Integrated Stepper Servo Motor with Driver for Medical
Best Price Deep Customized Linear External Non Captive Lead Screw Integrated Stepper Servo Motor with Driver for MedicalBest Price Deep Customized Linear External Non Captive Lead Screw Integrated Stepper Servo Motor with Driver for MedicalBest Price Deep Customized Linear External Non Captive Lead Screw Integrated Stepper Servo Motor with Driver for Medical
Brushless dc motor customized:

Best Price Deep Customized Linear External Non Captive Lead Screw Integrated Stepper Servo Motor with Driver for Medical

Company Profile:

Best Price Deep Customized Linear External Non Captive Lead Screw Integrated Stepper Servo Motor with Driver for Medical

Best Price Deep Customized Linear External Non Captive Lead Screw Integrated Stepper Servo Motor with Driver for Medical

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
