48V Black Three Phase Brushless Motor 250W / 283W 1000 - 4000 Rpm For CNC Machine
48V Black Three Phase Brushless Motor 250W / 283W 1000 - 4000 Rpm For CNC Machine
48V Black Three Phase Brushless Motor 250W / 283W 1000 - 4000 Rpm For CNC Machine
48V Black Three Phase Brushless Motor 250W / 283W 1000 - 4000 Rpm For CNC Machine
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Jkongmotor
Model Number :
JK60BLS03
Certification :
CE, ROHS,ISO9001
Price :
US $29 - 48 / Units | 3 Unit/Units (Min. Order)
MOQ :
3-10pcs
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
30000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Phase :
3-phase
Holding Torque :
0.9N.M
Current / Phase :
7.5A
Motor length :
120mm
voltage range :
48V
suitable motor :
nema 24 BLDC motor
Color :
Black
stepper driver model :
JKBLD300
Keywords :
brushless motor
Speed :
3000rpm
MOQ :
10pcs
Description

NEMA24 48V Black Three Phase Brushless Motor 250W 283W 1000RPM - 4000RPM For Cnc Machine

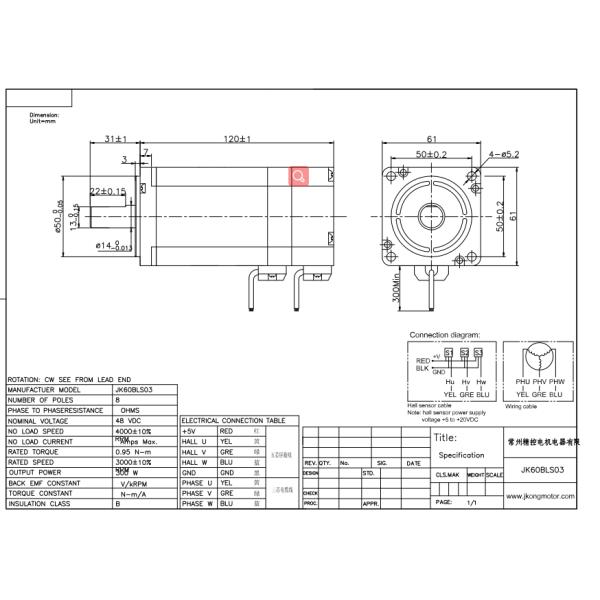

Drawing of three phase brushless dc motor:

48V Black Three Phase Brushless Motor 250W / 283W 1000 - 4000 Rpm For CNC Machine

Electrical Specification of brushless dc motor:

Model
Specification Unit JK60BLS03 JK60BLS04
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 48
Rated Speed Rpm 3000
Rated Torque N.m 0.9 1.2
Rated Current Amps 7.5 9.5
Rated Power W 283 377
Peak Torque N.m 2.7 3.6
Peak Current Amps 22.5 28.5
Back E.M.F V/Krpm 12.4 13.3
Torque Constant N.m/A 0.118 0.127
Rotor Inertia Kg.cm^2 0.72 0.96
Body Length mm 120 141
Weight Kg 1.65 2.05
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25～+70℃
Operating Temperature -15～+50℃
Working Humidity 85% or under 85% RH(non condensing)
Working Environment outdoor(no direct sunlight),Non-corrosive Gas,
Non-inflammable gas, No oil fog, No dust
Altitude 1000m or under 1000m

Products of special request can be made according to the customer request !
