48V Brushless Dc Motor 220W 86mm 3000RPM for Turkish barbecue machine
48V Brushless Dc Motor 220W 86mm 3000RPM for Turkish barbecue machine
48V Brushless Dc Motor 220W 86mm 3000RPM for Turkish barbecue machine
48V Brushless Dc Motor 220W 86mm 3000RPM for Turkish barbecue machine
48V Brushless Dc Motor 220W 86mm 3000RPM for Turkish barbecue machine
48V Brushless Dc Motor 220W 86mm 3000RPM for Turkish barbecue machine
48V Brushless Dc Motor 220W 86mm 3000RPM for Turkish barbecue machine
48V Brushless Dc Motor 220W 86mm 3000RPM for Turkish barbecue machine
Specifications
Brand Name :
Jkongmotor
Model Number :
JK86BLS71
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$35~US$60
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Speed(rpm) :
3000rpm
Type :
Brushless DC Motor
Torque :
0.7N.m
Size :
86*86mm
Rated voltage :
48VDC
Rated power :
220w
Color :
black
Application :
Turkish Barbecue Machine
MOQ :
10pcs
Description

0.7N.m 220W 86mm square Brushless Dc Motor 48VDC 3000RPM for Turkish barbecue machine

General Specification of 86mm dc brushless dc motor FL86BLS71-48V-30220B-3

(Item) (Specification)
Winding type Star
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm＠450g
End play 0.08mm＠450g
Max.radial force 220N ＠20mm form the flange
Max.axial force 60N
Insulation class Class B
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩ Min.,500VDC

-48V-30220B-3

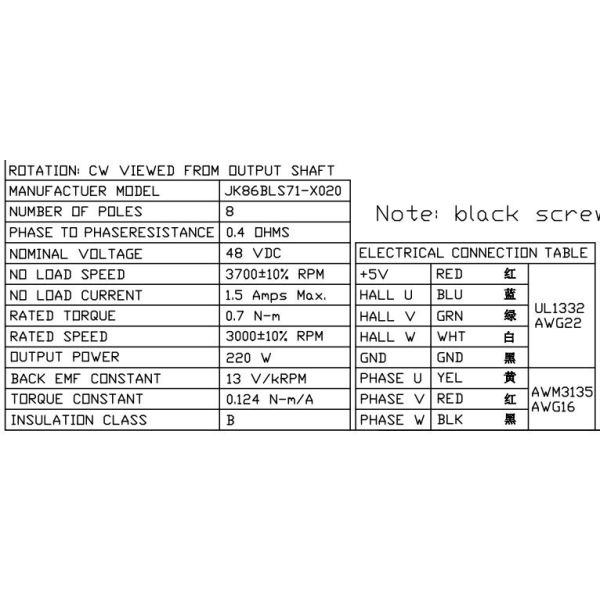

Electrical Specifications of nema34 brushless dc motor,used for Turkish barbecue machine :

FL57STH56-2008A-C

Model FL86BLS71-48V-30220B-3
Specification Unit JK86BLS58 JK86BLS71 JK86BLS84 JK86BLS98 JK86BLS125
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 48
Rated Speed Rpm 3000
Rated Torque N.m 0.35 0.7 1.05 1.4 2.1
Rated Current Amps 3 6.3 9 11.5 18
Rated Power W 110 220 330 440 660
Peak Torque N.m 1.05 2.1 3.15 4.2 6.3
Peak Current Amps 9 19 27 35 54
Back E.M.F V/Krpm 13.7 13 13.5 13.7 13.5
Torque Constant N.m/A 0.13 0.12 0.13 0.13 0.13
Rotor Inertia g.c㎡ 400 800 1200 1600 2400
Body Length mm 71 84.5 98 111.5 138.5
Weight Kg 1.5 1.9 2.3 2.7 4
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25～+70℃
Operating Temperature -15～+50℃
Working Humidity 85% RH
Working Environment Outdoor (No Direct Sunlight), No Corrosive Gas, No Flammable Gas, No Oil Mist, No Dust
Altitude 1000m or less

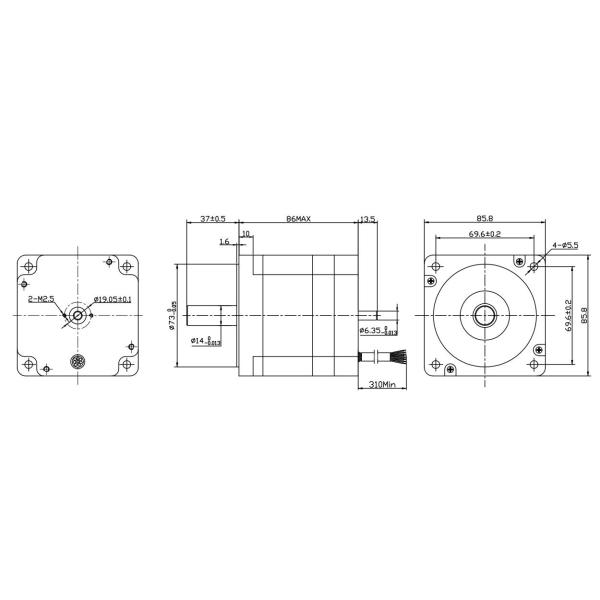

Dimensions:FL86BLS71-48V-30220B-3

(Unit=mm)
48V Brushless Dc Motor 220W 86mm 3000RPM for Turkish barbecue machine
48V Brushless Dc Motor 220W 86mm 3000RPM for Turkish barbecue machine
48V Brushless Dc Motor 220W 86mm 3000RPM for Turkish barbecue machine

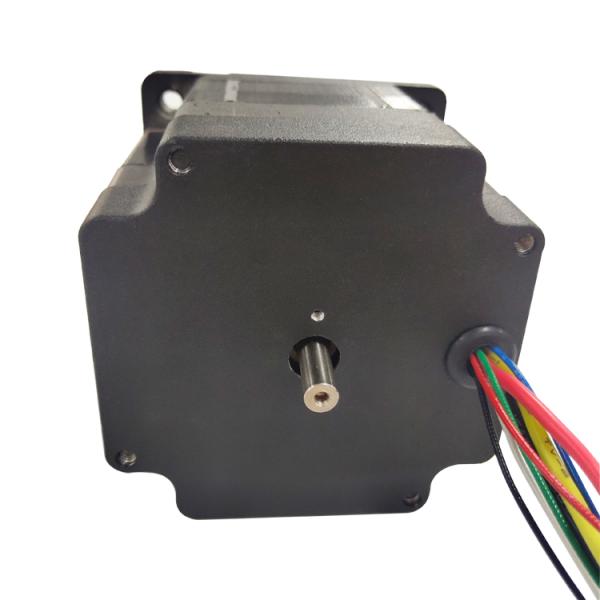

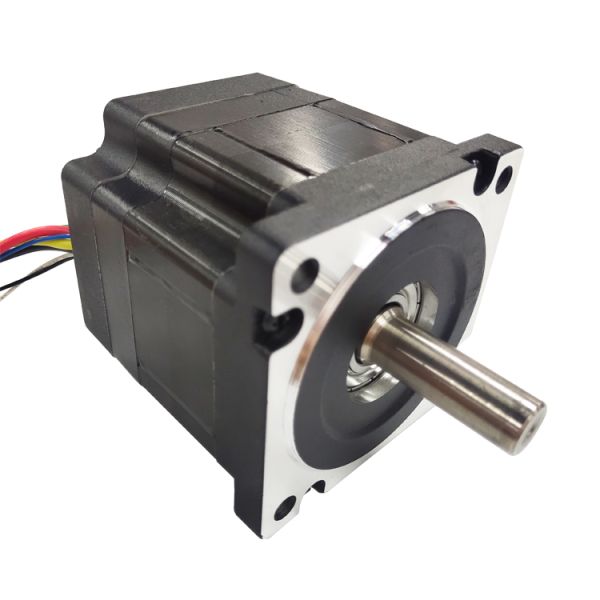

Details of 86mm BLDC motor
48V Brushless Dc Motor 220W 86mm 3000RPM for Turkish barbecue machine
48V Brushless Dc Motor 220W 86mm 3000RPM for Turkish barbecue machine
​
Other products:

Hybrid stepper motor/brushless DC motor/stepper driver/BLDC driver/closed loop stepper motor/gear reducer stepper motor/gear reducer brushless DC motor/spindle motor and VFD/AC servo motor kit/DC motor/coupling/pully and so on.

48V Brushless Dc Motor 220W 86mm 3000RPM for Turkish barbecue machine

The common products includes stepper motor,closed loop stepper motor,ac servo motor,spindle motor,stepper driver,BLDC driver,planetary gearbox stepper motor,linnear stepper motor,cnc parts,dc motor and so on.

As below:

48V Brushless Dc Motor 220W 86mm 3000RPM for Turkish barbecue machine

We are manufacturer,Also make customized motor as your requirements.
