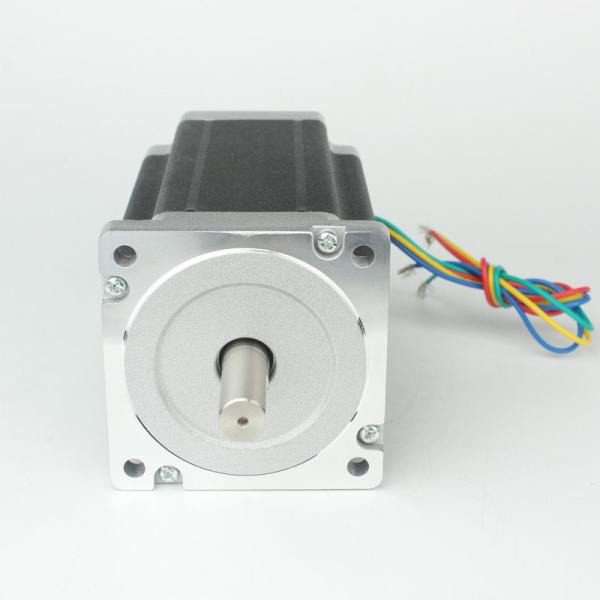

High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
Specifications
Brand Name :
Jkongmotor
Model Number :
86HS155-6004
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
USD35-USD45
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Motor length :
155mm
Holding torque :
12N.m
Current/Phase :
6A
Lead wire :
4lead wies
Frame size :
86*86mm
Application :
CNC machine
Shaft type :
D-shaft/flat shaft
Shaft diameter :
14mm
MOQ :
10pcs
Description

High Torque 12 Nm current 6A Nema 34 CNC Stepper Motor for CNC kit machine

Genaral Specification of high torque 12N.m nema34 stepper motor:

(Item)(Specifications)
(Step Angle)1.8°
(Temperature Rise)80℃max
(Ambient Temperature)-20℃~+50℃
(Insulation Resistance)100 MΩ Min. ,500VDC
(Dielectric Strength):820VAC for 1s 3mA
(Shaft Radial Play)0.02Max. (450g-load)
(Shaft Axial Play)0.08Max. (450g-load)
(Max. radial force)220N (20mm from the flange)
(Max. axial force)60N


Electrical Specification of nema34 CNC stepper motor for CNC kit machine:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)(L)mmAΩmHN.mNo.Kg.cmg.cmKg
JK86HS68-59041.8675.90.281.73.440.810001.7
JK86HS68-28081.8672.81.43.93.480.810001.7
JK86HS78-55041.8785.50.464.04.641.214002.3
JK86HS78-42081.8784.20.753.44.681.214002.3
JK86HS97-45041.8974.50.663.05.841.721003.0
JK86HS97-40081.8974.00.984.14.781.721003.0
JK86HS100-60041.81006.00.362.87.041.922003.1
JK86HS115-60041.81156.00.66.58.742.427003.8
JK86HS115-42081.81154.20.96.08.782.427003.8
JK86HS126-60041.81266.00.586.56.342.932004.5
JK86HS155-60041.81556.00.689.013.043.640005.4
JK86HS155-42081.81554.21.258.012.283.640005.4


Above only for representative products, products of special request can be made according to the customer request.

Dimensions:(unit=mm)
High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
Below is our common simple products,include stepper motor,BLDC motor,spindle motor,planetary gearbox motor,linear stepper motor, stepper motor driver,BLDC motor driver,power supply,brush dc motor,closed loop stepper motor,ac servo motor and so on.
High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
Production Process of production line:
High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
Package of goods:
High Torque 12 Nm Current 6A Nema 34 CNC Stepper Motor For CNC Kit Machine
