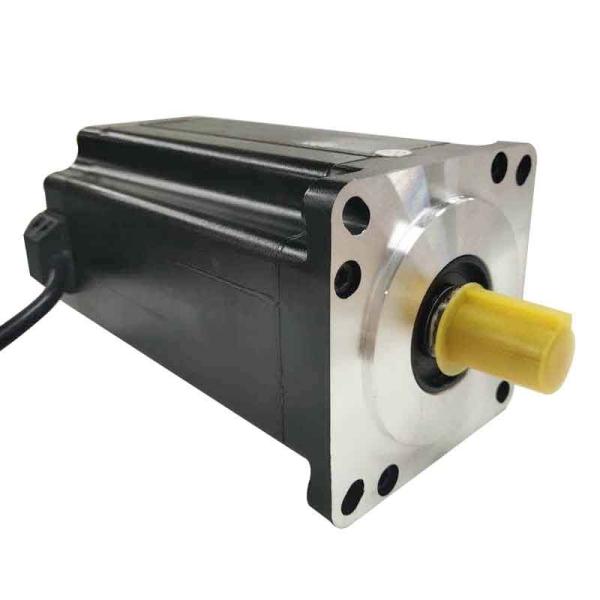

High Torque 20Nm Nema 42 Stepper Motor With Drive Kit For CNC Machine
High Torque 20Nm Nema 42 Stepper Motor With Drive Kit For CNC Machine
High Torque 20Nm Nema 42 Stepper Motor With Drive Kit For CNC Machine
High Torque 20Nm Nema 42 Stepper Motor With Drive Kit For CNC Machine
High Torque 20Nm Nema 42 Stepper Motor With Drive Kit For CNC Machine
High Torque 20Nm Nema 42 Stepper Motor With Drive Kit For CNC Machine
High Torque 20Nm Nema 42 Stepper Motor With Drive Kit For CNC Machine
High Torque 20Nm Nema 42 Stepper Motor With Drive Kit For CNC Machine
Specifications
Brand Name :
Jkongmotor
Model Number :
110BYG250D
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$60~US$80
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Type :
Hybrid stepper motor
Current :
6.8A
Holding torque :
20N.m
Motor length :
193mm
Shaft diameter :
19mm
Type of shaft :
keyway
Frame size :
110*110mm
Phase :
2phase
MOQ :
10pcs
Description

High Torque Stepper Motor 20Nm NEMA 42 Stepping Motor With Drive Kit For CNC Machine

Details of nema 42 stepper motor cnc kit:

High Torque 20Nm Nema 42 Stepper Motor With Drive Kit For CNC Machine

110BYG250D Dimensions:

Unit=mm

High Torque 20Nm Nema 42 Stepper Motor With Drive Kit For CNC Machine

High Torque 20Nm Nema 42 Stepper Motor With Drive Kit For CNC Machine

Electrical Specification of nema 42 stepper motor:

Model No.
Step Angle
(°)
Motor Length(mm)
Current
/Rated(A)

Holding Torque
(N.m)
Votalge
Weight
(KG)
110BYG250A
1.8
109
5
8
110V
4.8
110BYG250AB
1.8
134
6
12
110V
6.4
110BYG250C
1.8
159
6.5
18
110V
8.1
110BYG250D
1.8
193
6.8
20
110V
9.2

Our main products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers, AC servo motor,spindle motor kit, power supplys, and other accessories.

High Torque 20Nm Nema 42 Stepper Motor With Drive Kit For CNC Machine

We also can customized shaft according to your special requirments.

High Torque 20Nm Nema 42 Stepper Motor With Drive Kit For CNC Machine
