Specifications
Brand Name :
Jkongmotor
Model Number :
JK110BLS03
Certification :
CE,ROHS,ISO
Place of Origin :
Jiangsu, China
MOQ :
3-10pcs
Price :
US$121.38~US$138.70
Payment Terms :
T/T , paypal , Western Union, L/C,
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Name :
Brushless Dc Motor
Voltage :
310V
Frame Size :
110*110mm
Rated Power: :
1570 W
Rated Current: :
5.6 A
Rated Torque: :
5 Nm
Peak Current :
15 Nm
High Light: :
3000rpm brushless dc motor 86mm, brushless dc motor 86mm 4.2NM, 48v 400w bldc motor
Rated Speed: :
3000rmp
Body Length: :
143mm
MOQ :
10pcs
Description

310VDC 220VAC 110mm Dc Brushless Electric Motorcycle Motor 3000RPM 1570W

Specification:

  • Part Number: JK110BLS100
  • Phase: 3
  • Rated Voltage: 310VDC
  • Rated Speed: 2000RPM
  • Rated Torque: 5Nm
  • Rated Current: 5.A
  • Rated Power: 1570W
  • Insulation Class: Class B
  • Insulation Resistance: 100MΩ Min @500VDC
  • Dielectric Strength Test: 500VAC for 1 Minute
  • Frame Size: 110*110mm
  • Number of Leads: 8
  • Weight: 9.5kg

Brushless dc motor features:

High speed

Long using life

Low cost

Low interference

High efficiency

Low noise

Energy Saving

We are a comprehensive company which specializes in producing and researching stepper motor and motor driver, closed loop stepper motor, step servo motor, brushless dc motor, brushless dc driver, spindle motor.

Our company is located in Changzhou city, Jiangsu province, China. We have an excellent group with rich experience in manufacturing and researching. We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.

Applications:

Brushless dc motor are widely used in textile machine, medical equipment, CNC, industrial automation, laboratory instrument, packing machine, drone etc.

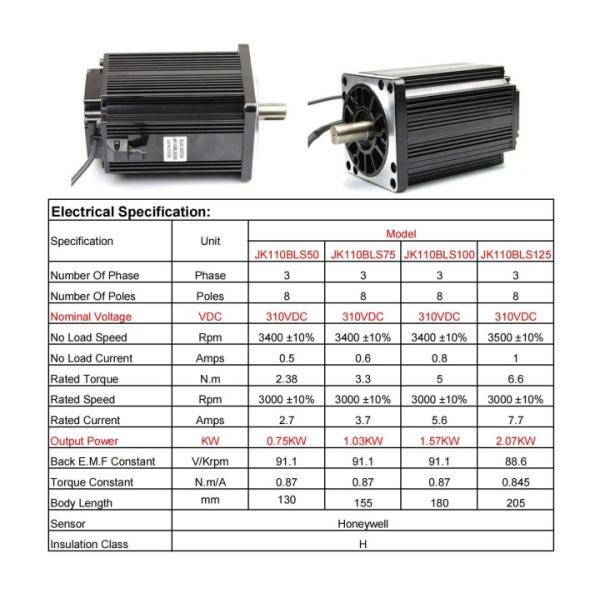

Electrical Specification:

310VDC 220VAC 110mm Dc Brushless Electric Motor 3000RPM 1570W BLDC MOTOR

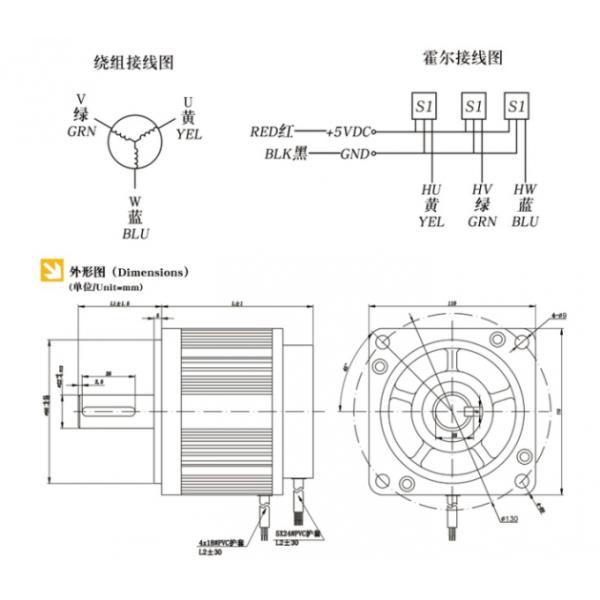

Electrical Connection:

Lead No. Lead color Lead gauge Function Description
1 Red UL3266/28AWG VCC+5VDC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A SIGNAL OF HALL A
4 Green HALL B SIGNAL OF HALL B
5 Blue UL3266/22AWG HALL C SIGNAL OF HALL C
1 Yellow PHASE U MOTOR PHASE U
2 Green PHASE V MOTOR PHASE V
3 Blue PHASE W MOTOR PHASE W

Diagram:

310VDC 220VAC 110mm Dc Brushless Electric Motor 3000RPM 1570W BLDC MOTOR

310VDC 220VAC 110mm Dc Brushless Electric Motor 3000RPM 1570W BLDC MOTOR

Brushless dc motor features:

High speed

Long using life

Low cost

Low interference

High efficiency

Low noise

Energy Saving
