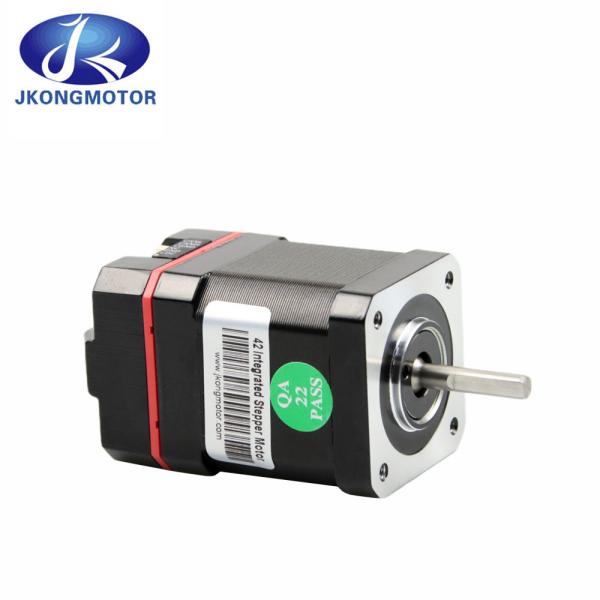

CANopen RS485 42x42mm Nema 17 1000PPR Encoder Integrated Step Servo Motor 0.48N.M / 0.72N.M 21-36VDC

The STM is a drive + motor + control unit, fusing step motor, drive, and controller technologies into a single device, offering savings on space, wiring and cost over conventional motor and drive solutions. The "S" models offer control options such as step and direction, analog input, joystick control, and host commands using the Si Command Language (SCL). SCL allows for control via serial commands sent from a host device such as a PC or PLC. This permits the user to perform a variety of motion, I/O, and system status tasks in real time via a host serial device.

The modern design incorporates closed-loop operation - providing higher torque, faster acceleration, torque control, stall free operation and quieter movements than traditional stepper motor systems.

JKONGMOTOR has higher efficiency and runs cooler because motor phase currents are regulated up and down according to need. Performance of closed-loop steppers are similar to servo motors, but with higher torque and often without the need of a gearbox, resulting in cost savings.
Design safety factors have always been high for stepper motors to ensure stall-free operation – now with JKONGMOTOR closed-loop the motors can be operated very close to the limit resulting in even lower costs and more compact designs.

1. 42mm Hybrid Nema 17 Integrated Stepper Motor Genaral Specification:

2,Features of integrated easy servo stepper motor with controller driver:

1): A new generation of 32-bit DSP technology.

2): Support standard CANopen CiA402 protocol.

3): 4-way input function terminal, 2-way output function terminal.

4): The torque decay is reduced, and the speed can reach 3000rpm.

5): Built-in alarm output for easy monitoring and control.

6): Intelligently adjust current, reduce vibration, noise and heat, and increase efficiency by 35%.

7): Voltage range: DC24~36V.

8): 16 adjustable subdivisions, the default is 1000pulse/r.

9): Excellent high speed and rigidity, perfect integration of servo and stepper.

10): With overvoltage, undervoltage, overcurrent and other protection functions.

11): Integrated design with drive motor. Easy installation, small footprint and simple wiring.

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.

3,Application of integrated servo stepper motor:

Printing, AOI, panel bonding, transfer equipment, etc. in PCB related equipment; camera related equipment such as camera and fingerprint; solid crystal machine, wire bonding machine, dispensing machine, beam splitter, and package tape machine in packaging.

4,General Specification of integrated step servo motor:

5,Techical Data:

6,Terminal Description:

7,Input / Output terminal:

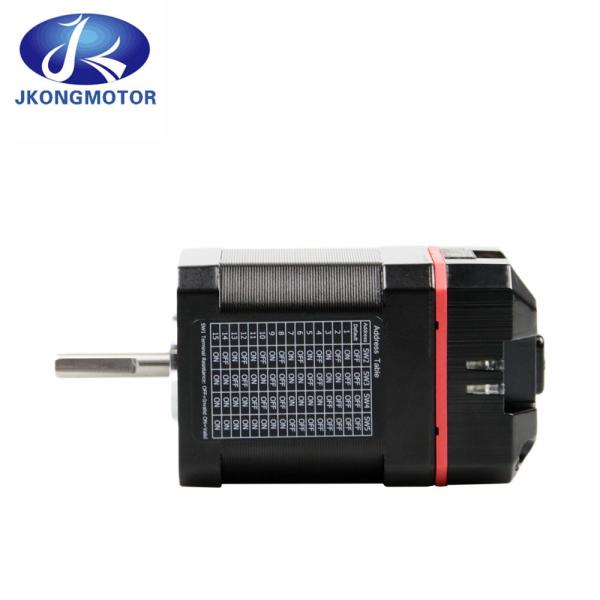

8,DIP switch settings:

9,Power port setting:

10,Alarm release:

11,Use environment:

12,Product Dimensions: (Unit=mm)

13,Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

14,Customized Shaft Types:
