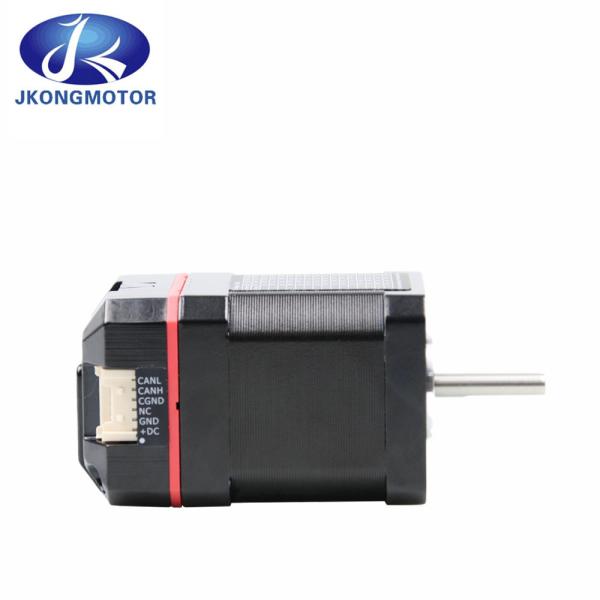

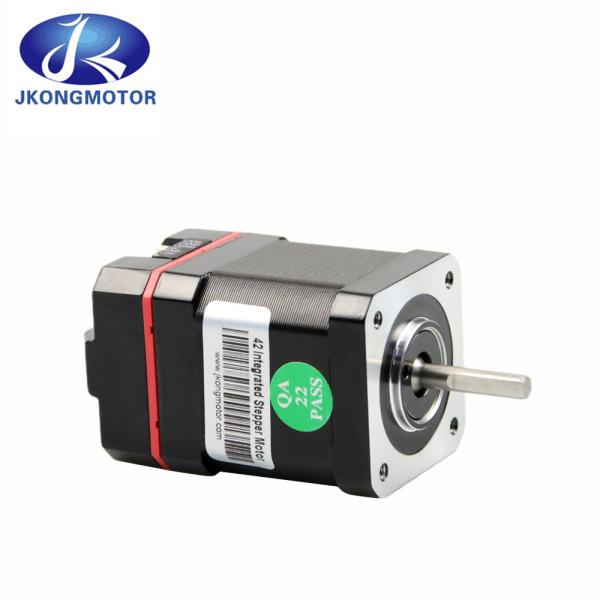

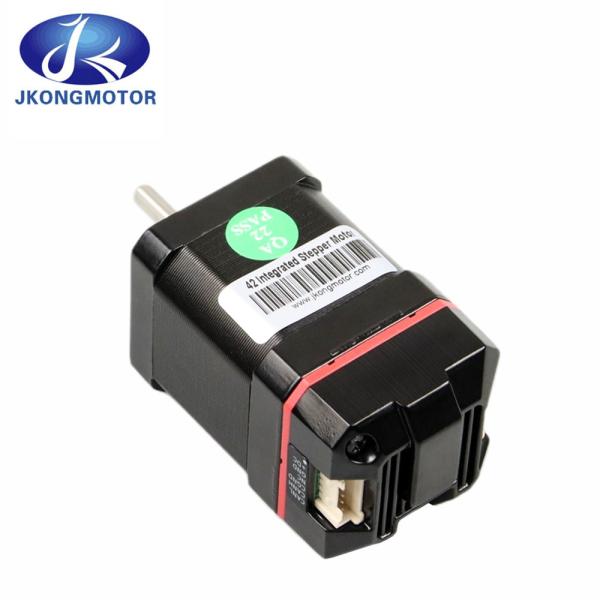

Jkongmotor CANopen RS485 0.72N.m 60mm Motor Length Nema 17 Integrated Closed Loop Stepper Motor Driver For 3d Printer

JKONGMOTOR products offers a range of stepper and servo products with built-in CANopen communications. CANopen is a standardized communication protocol for use in distributed automation control systems. It is a popular fieldbus option for applications that require the transmission of time-critical data to and from the devices on the network.

CANopen products from JKONGMOTOR adhere to CAN in Automation (CiA) specifications DS301 and DSP402. Profile Position, Profile Velocity, Profile Torque (servo only), and Homing modes are fully supported at data rates up to 1 Mbps. Applied Motion also provides specific CANopen objects for executing stored Q programs1 and accessing internal data registers in the products.

1. 42mm Hybrid Nema 17 Integrated Stepper Motor Genaral Specification:

2,Features of integrated easy servo stepper motor with controller driver:

1): A new generation of 32-bit DSP technology.

2): Support standard CANopen CiA402 protocol.

3): 4-way input function terminal, 2-way output function terminal.

4): The torque decay is reduced, and the speed can reach 3000rpm.

5): Built-in alarm output for easy monitoring and control.

6): Intelligently adjust current, reduce vibration, noise and heat, and increase efficiency by 35%.

7): Voltage range: DC24~36V.

8): 16 adjustable subdivisions, the default is 1000pulse/r.

9): Excellent high speed and rigidity, perfect integration of servo and stepper.

10): With overvoltage, undervoltage, overcurrent and other protection functions.

11): Integrated design with drive motor. Easy installation, small footprint and simple wiring.

3,Application of integrated servo stepper motor:

Printing, AOI, panel bonding, transfer equipment, etc. in PCB related equipment; camera related equipment such as camera and fingerprint; solid crystal machine, wire bonding machine, dispensing machine, beam splitter, and package tape machine in packaging.

4,General Specification of integrated step servo motor:

5,Techical Data:

6,Terminal Description:

7,Input / Output terminal:

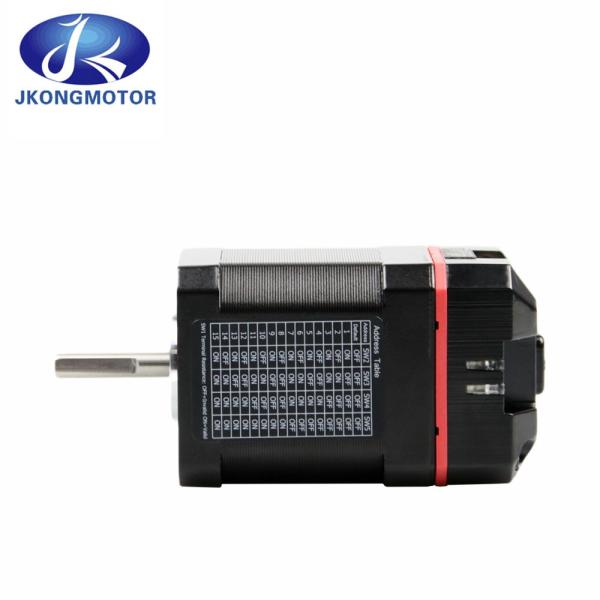

8,DIP switch settings:

9,Power port setting:

10,Alarm release:

11,Use environment:

12,Product Dimensions: (Unit=mm)

13,Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

14,Customized Shaft Types:
