3Nm 60mm Dual Shaft Cnc Nema 34 Hybrid Stepper Motor 60HS88-3008B
3Nm 60mm Dual Shaft Cnc Nema 34 Hybrid Stepper Motor 60HS88-3008B
3Nm 60mm Dual Shaft Cnc Nema 34 Hybrid Stepper Motor 60HS88-3008B
3Nm 60mm Dual Shaft Cnc Nema 34 Hybrid Stepper Motor 60HS88-3008B
3Nm 60mm Dual Shaft Cnc Nema 34 Hybrid Stepper Motor 60HS88-3008B
3Nm 60mm Dual Shaft Cnc Nema 34 Hybrid Stepper Motor 60HS88-3008B
3Nm 60mm Dual Shaft Cnc Nema 34 Hybrid Stepper Motor 60HS88-3008B
3Nm 60mm Dual Shaft Cnc Nema 34 Hybrid Stepper Motor 60HS88-3008B
Specifications
Brand Name :
Jkongmotor
Model Number :
JK60HS88-3008B
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
Negotiable
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Type :
Nema24 Stepper Motor
Holding Torque :
3N.m
Stepper Angle :
1.8 dregee
Motor Diameter :
60mm
Phase :
2
Motor length :
88mm
Current :
3.0A
Shaft diameter :
8mm, 6.35mm
Resistance :
1.5Ω
Shaft length :
24mm,15mm
Inductance :
6.8mH
Usage :
CNC
MOQ :
10pcs
Description

2 phase 1.8 degree 3Nm 60mm dual shaft cnc Nema34 Hybrid Stepper Motor 60HS88-3008B

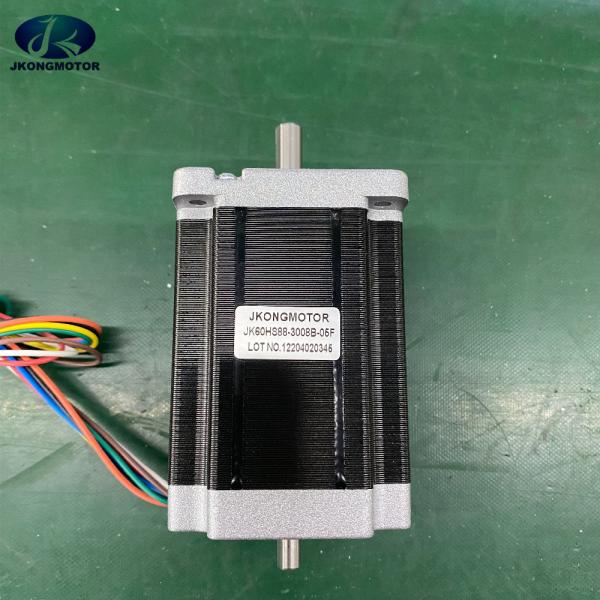

1) Product Description and images

Stepper motors are mainly used in industry, aerospace, robotics, precision measurement and other fields, such as photoelectric theodolite, communication and radar. The wide application of subdivision drive technology makes the phase number of the motor not limited by the step angle, which brings convenience to product design.

At present, in the subdivision drive technology of the stepping motor, chopper constant current drive, instrument pulse width modulation drive and current vector constant amplitude uniform rotation drive control are adopted, which greatly improves the operation accuracy of the stepping motor and makes the stepping motor develop towards high speed and precision in the medium and small power application fields.

3Nm 60mm Dual Shaft Cnc Nema 34 Hybrid Stepper Motor 60HS88-3008B

2) Product DataSheet

Genaral Specification:
Item Specifications
Step Angle 1.8°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength: 500VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 75N (20mm from the flange)
Max. axial force 15N
Electrical Specifications:
Model No. Step Angle Motor Length Current
/Phase		 Resistance
/Phase		 Inductance
/Phase		 Holding Torque # of Leads Detent Torque Rotor Inertia Weight
( °) (L)mm A Ω mH N.m No. g.cm g.cm2 Kg
JK60HS56-2008 Unipolar 56 2 1.8 3 1.17 8 700 300 0.77
Parallel 2.8 0.9 3.6 1.65
Series 1.4 3.6 14.4 1.65
JK60HS67-2008 Unipolar 67 2 2.4 4.6 1.5 8 900 570 1.2
Parallel 2.8 1.2 4.6 2.1
Series 1.4 4.8 18.4 2.1
JK60HS88-2008 Unipolar 88 2 3 6.8 2.2 8 1000 840 1.4
Parallel 2.8 1.5 6.8 3.1
Series 1.4 6 27.2 3.1
JK60HS100-2008 Unipolar 100 2 3.2 6.4 2.8 8 1100 980 1.7
Parallel 2.8 1.6 6.4 4
Series 1.4 6.4 25.6 4
JK60HS111-2008 Unipolar 111 2 4.4 8.3 3.2 8 1200 1120 1.9
Parallel 2.8 2.2 8.3 4.5
Series 1.4 8.8 33.2 4.5
We provide customized service to add gearbox, encoder, brake and integrated driver.

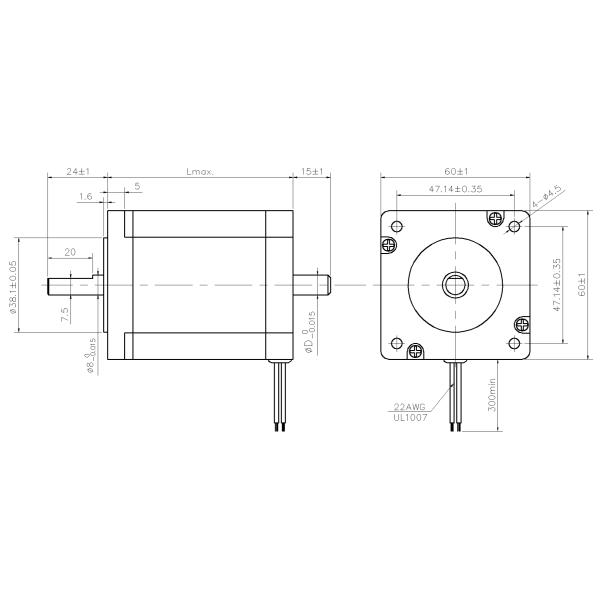

3) Product Drawing

3Nm 60mm Dual Shaft Cnc Nema 34 Hybrid Stepper Motor 60HS88-3008B

4) Other Products
Stepper Motor Series
Motor series Phase No. Step angle Motor size Motor length Holding torque
Nema 8 2 phase 1.8 degree 20x20mm 30~42mm 180~300g.cm
Nema 11 2 phase 1.8 degree 28x28mm 32~51mm 430~1200g.cm
Nema 14 2 phase 1.8 degree 35x35mm 27~42mm 1000~2000g.cm
Nema 16 2 phase 1.8 degree 39x39mm 20~44mm 650~2800g.cm
Nema 17 2 phase 1.8 degree 42x42mm 25~60mm 1.5~7.3kg.cm
Nema 23 2 phase 1.8 degree 57x57mm 41~112mm 0.39~3.1N.m
Nema 24 2 phase 1.8 degree 60x60mm 56~111mm 1.17~4.5N.m
Nema 34 2 phase 1.8 degree 86x86mm 67~155mm 3.4~12.2N.m
Nema 42 2 phase 1.8 degree 110x110mm 99~201mm 11.2~28N.m
Nema 52 2 phase 1.8 degree 130x130mm 173~285mm 13.3~22.5N.m
We supply Stepper motor, Brushless DC motor, DC Brushed motor, Driver, Spindle motor,
AC servo motor, Coreless motor, Gearbox reducer, Power supply, ball screw, linear guide, and parts.

5) Product information and advantages
The stepping motor converts the electric pulse sequence applied to its excitation winding into precisely defined stepwise mechanical shaft rotation. For each discrete pulse, the shaft of the stepping motor rotates by a fixed angle. This rotation may be linear or angular. For a single pulse input, it moves one step. When a series of pulses are applied, it will rotate by a certain angle. The angle that the shaft of each pulse stepping motor rotates is called the step angle, which is usually expressed in degrees.

The number of pulses input to the motor determines the step angle, so the position of the stepping motor shaft is controlled by controlling the number of pulses. This unique characteristic makes the stepper motor very suitable for open-loop control systems, where the precise position of the shaft is maintained by the precise number of pulses, without the use of feedback sensors.
