50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit
50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit
50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit
50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit
50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit
50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit
50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit
50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit
50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit
50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit
50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit
50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit
Specifications
Brand Name :
Jkongmotor
Model Number :
NEMA11
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$28~US$35
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Name :
Sliding Table Rail Linear Stage Transport Guide Platform
Stroke :
50mm
Holding Torque :
0.07N.m
Motor Length :
30mm
Weight :
0.3kg
Motor size :
28mm
Pitch :
12mm
MOQ :
10pcs
Description

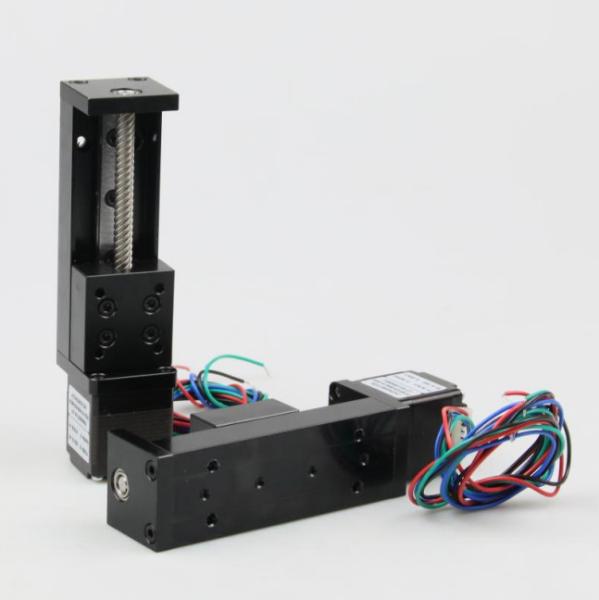

50MM 2Inch Stroke T-type Sliding Table Rail Linear Stage Transport Guide Platform & NEMA11 28MM Stepper Motor Kit

Sliding table Specifications:

Stroke:50mm

Horizontal load: 5KG (Max)

Vertical load: 1KG(Max)

Mobile panel size: 30mm X 32mm

Repeat positioning accuracy: 0.02mm-0.03mm

Maximum speed: 80mm/s

Rail width:8MM

Block:MGN8H

Screw Precision:C7

Screw Model:T6*2/T6*4/T6*6/T6*12 (Diameter 6mm, lead pitch 1mm/2mm/4mm/6mm/12mm, Please select the lead you need)

Stepper Motor Specifications :

Motor Size: NEMA11(28MM)

Shaft diameter: 5mm

Holding torque: 6.5Ncm/0.065N.m

Type: hybrid

Phase: 2

Current : 0.6A

Certification: CE, ISO

Step angle: 1.8degree

(If you need to replace the motor with a larger torque, please contact us before placing the order, we will give you the lowest price.)

50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit

To use 50mm 2Inch Stroke T-type Sliding Table Rail Linear Stage Transport Guide Platform& NEMA11 28mm stepper motor kit,

Make sure you have the drive and controller, no drive and controller stepper motor will not work Stepper motor Parameter:

Step angle: 1.8 degree
Motor flange size: 28mm
Motor length: 30mm
Holding torque: 6N.cm
Current: 0.6A
Resistance: 5.5 ohm
Rotor Inertia: 8g.cm
Wiring:Red: A+; Blue: A-; Green: B+; Black: B-

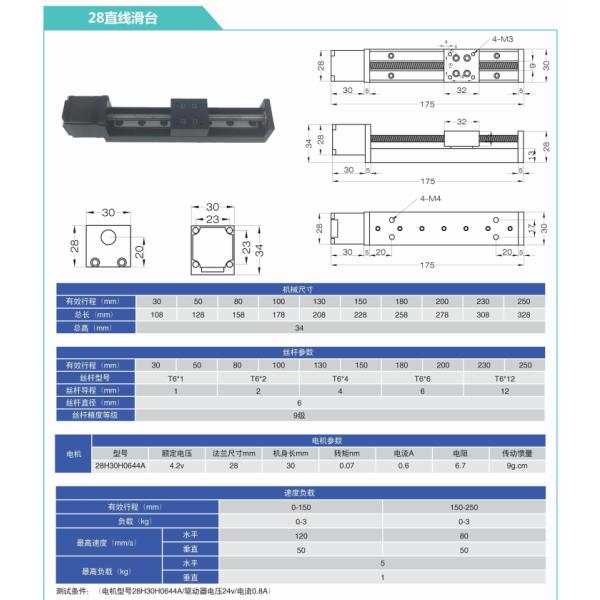

Linear Stage Actuator Parameter:
Effective Travel Length: 50mm
Total length :126mm
Type: linear system moulde
Lead Screw type: T6x1:diameter 6mm and lead 1mm pitch 1mm
Weight: 272g
Package Content:
1pcs Linear Stage Actuator with NEMA11 Stepper Motor

50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit

50MM 2 Inch Stroke T-Type NEMA11 28MM Stepper Motor Kit
