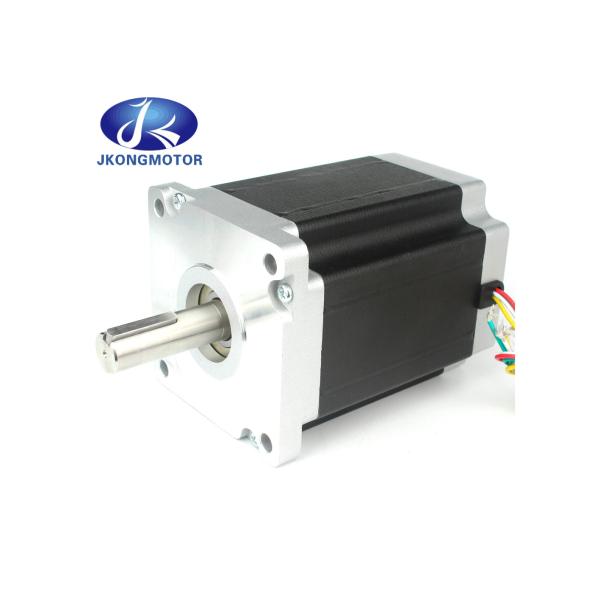

1.8° Nema 42 11.2Nm 5.5A JK110HS Hybrid CNC Kit Micro Stepper Motor
1.8° Nema 42 11.2Nm 5.5A JK110HS Hybrid CNC Kit Micro Stepper Motor
1.8° Nema 42 11.2Nm 5.5A JK110HS Hybrid CNC Kit Micro Stepper Motor
1.8° Nema 42 11.2Nm 5.5A JK110HS Hybrid CNC Kit Micro Stepper Motor
1.8° Nema 42 11.2Nm 5.5A JK110HS Hybrid CNC Kit Micro Stepper Motor
1.8° Nema 42 11.2Nm 5.5A JK110HS Hybrid CNC Kit Micro Stepper Motor
Specifications
Brand Name :
Jkongmotor
Model Number :
JK110HS99-5504
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$55~US$62.00
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Type :
Hybrid stepper motor
Current :
5.5A
Holding torque :
11.2N.m
Motor length :
98mm
Shaft diameter :
55.37mm
Type of shaft :
keyway
Frame size :
110*110mm
Phase :
2phase
Diameter of shsft :
φ19mm
Voltage :
4.9V
MOQ :
10pcs
Description

1.8° Nema42 12N.m 6A JK110HS hybrid CNC kit micro stepper motor machine

Features:

  1. Position error correction and never lose steps.
  2. Quick response and perfect acceleration, high torque at high speed.
  3. Automatic current adjustment based on load, lower temperature rise.
  4. Over-current, over-voltage, and position ultra difference protection function.
  5. Pulses response frequency can reach 200KHZ
  6. 15 kinds micro-steps choice, highest 51200 microsteps/rev.
  7. High dynamic performance at acceleration and deceleration, no vibration from high speed to zero speed.

NEMA 8,11,14,17,23,24, 34, 42, 52 Stepper Motor & Driver with CE, RoHS, OEM

2 phase stepper motor, stepping motor, step motor
Professional manfacuturer for stepper motor, have NEMA8, NEMA11. NEMA14, NEMA17, NEMA23, NEMA34, NEMA42.
1.8 degree, 0.9 degree. Single shaft and double shaft.

Electrical Specification of nema 42 stepper motor:

Model

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass
( °) (L)mm A Ω mH N.m No. kg.cm g.cm Kg
JK110HS99-5504 1.8 99 5.5 0.9 12 11.2 4 3 5500 5
JK110HS115-6004 1.8 115 6.0 0.48 7 12 4 4 7100 6
JK110HS150-6504 1.8 150 6.5 0.8 15 21 4 5.9 10900 8.4
JK110HS165-6004 1.8 165 6.0 0.9 14 24 4 6.6 12800 9.1
JK110HS201-8004 1.8 201 8.0 0.67 12 28 4 7.5 16200 11.8

Details of nema 42 stepper motor cnc kit:

1.8° Nema 42 11.2Nm 5.5A JK110HS Hybrid CNC Kit Micro Stepper Motor

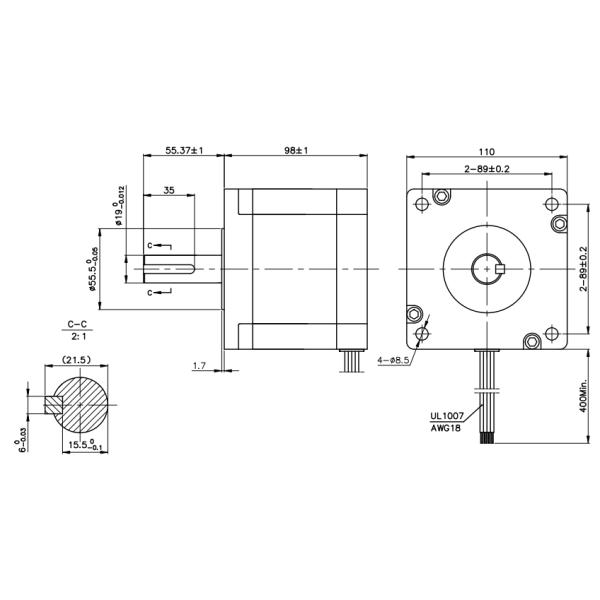

JK110HS99-5504 Dimensions:

Unit=mm

1.8° Nema 42 11.2Nm 5.5A JK110HS Hybrid CNC Kit Micro Stepper Motor

1.8° Nema 42 11.2Nm 5.5A JK110HS Hybrid CNC Kit Micro Stepper Motor

1.8° Nema 42 11.2Nm 5.5A JK110HS Hybrid CNC Kit Micro Stepper Motor

Advantages of Hybrid Stepper Motor:

The advantages of the Hybrid Stepper Motor are as follows:-

The length of the step is smaller.

It has greater torque.

Provides Detent Torque with the de-energized windings.

Higher efficiency at lower speed.

Lower stepping rate.

Applications:


Use for robots stepper motor, electric automatic equipment stepping motor, medical instrument stepping motor, advertisement instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor,CNC router stepper motor,3D Printer stepper motor.

1.8° Nema 42 11.2Nm 5.5A JK110HS Hybrid CNC Kit Micro Stepper Motor

1.8° Nema 42 11.2Nm 5.5A JK110HS Hybrid CNC Kit Micro Stepper Motor

1.8° Nema 42 11.2Nm 5.5A JK110HS Hybrid CNC Kit Micro Stepper Motor

1.8° Nema 42 11.2Nm 5.5A JK110HS Hybrid CNC Kit Micro Stepper Motor

1.8° Nema 42 11.2Nm 5.5A JK110HS Hybrid CNC Kit Micro Stepper Motor
