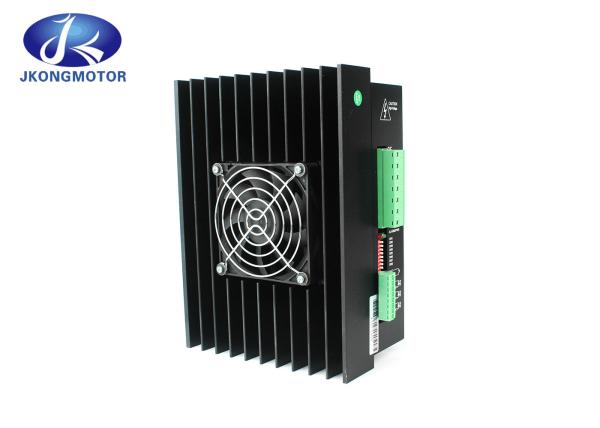

2 Phase 110mm 130mm NEMA 52 Stepper Motor Controller
2 Phase 110mm 130mm NEMA 52 Stepper Motor Controller
2 Phase 110mm 130mm NEMA 52 Stepper Motor Controller
2 Phase 110mm 130mm NEMA 52 Stepper Motor Controller
2 Phase 110mm 130mm NEMA 52 Stepper Motor Controller
2 Phase 110mm 130mm NEMA 52 Stepper Motor Controller
2 Phase 110mm 130mm NEMA 52 Stepper Motor Controller
2 Phase 110mm 130mm NEMA 52 Stepper Motor Controller
Specifications
Brand Name :
Jkongmotor
Model Number :
JK2M2283
Certification :
CE, ROHS, ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$82.5 ~ US$90
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days

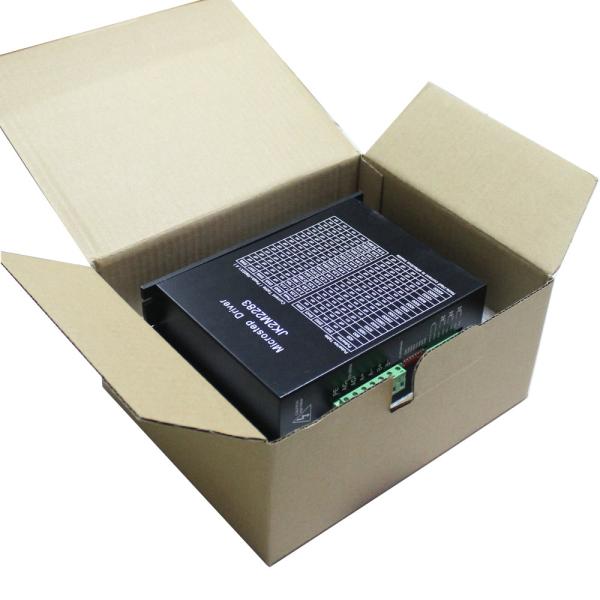

Packaging Details :
with export carton . big quantity with pallet
Name :
Stepper Motor Controller
Supply voltage :
150VAC - 220VAC
current :
2.0A - 8.3A
weight :
1700g
Certified :
CE ROHS
Matched Motor :
Nema42-52 stepping motor
color :
black
Advantage :
Speed stability and Control convenient, no need computer or pulse generator to drive stepper motor
MOQ :
3pcs
Description

Motor controller 2 Phase 150V-220V 8A 110mm 130mm NEMA42/52 motor stepper engine driver

JK2M2283 is to use the perspective of constant torque subdivided type high-performance stepper motor drives, for 130 mm and 110 mm, 8 a two phase, four phase hybrid stepping motors.The driver adopted similar servo control principle of the circuit, the circuit has stable operation, low noise, low vibration, low motor temperature rise, etc.

Due to the high working voltage, drive torque motor in high speed greatly higher than the other two phase, four phase hybrid and traditional stepper motor.Its micro step has 16 kinds of segment, the maximum fine fraction 1/256 step (step 51200 / roll);The scope of its working current of 2.0 A - 8.3 A, output current, A total of 16 file current resolution of about 0.4 A;With automatic flow, self-check, over-voltage, under-voltage and over-current protection function.

This drive for the ac power supply, it is recommended that the operating voltage range is 150 vac - 220 vac, voltage does not exceed 240 vac is not lower than 130 vac.


Features:

  • High-performance, low price
  • micro-step
  • Automatic idle-current reduction
  • Optical isolating signal I/O
  • Max response frequency up to 200Kpps
  • Low temperature rise, smooth motion
  • Online adaptive PID technology

Application:

Suitable for all kinds of small and medium sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser lighting, plotter, cnc machine, automatic assembly equipment, etc. It use very well in the equipment that user expects small noise, and high peed

Electrical indicators:

Parameter Min Typical Max Unit
Input Voltage(AC) 150 - 220 VAC
Output current 0 - 8.3 A
Pulse Signal Frequency 0 - 200 KHZ
Logic Signal Current 7 10 16 MA
Using environment and parameters:
Cooling method Natural cooling or forced air cooling
Using environment occasion Can not be placed next to other heating equipment, should avoid dust, oil mist, corrosive gas, too big humidity and strong vibration place, prohibit to have combustible gas and conductive dust
temperature -5℃ ～ +50℃
humidity 40 ～ 90%RH
vibration 5.9m/s2MAX
Storage temperature -20℃～80℃
Using altitude Below 1000 metres
Weight About 1.7kg

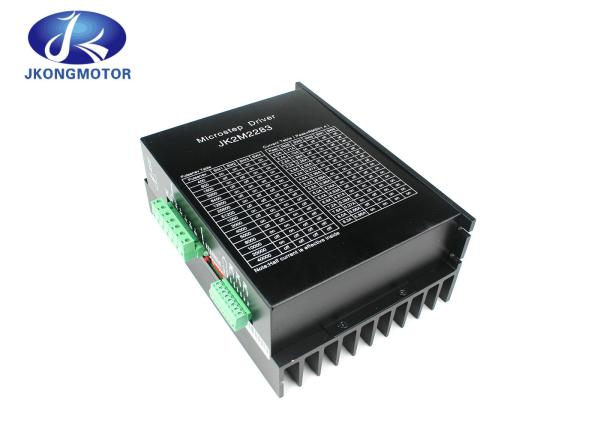

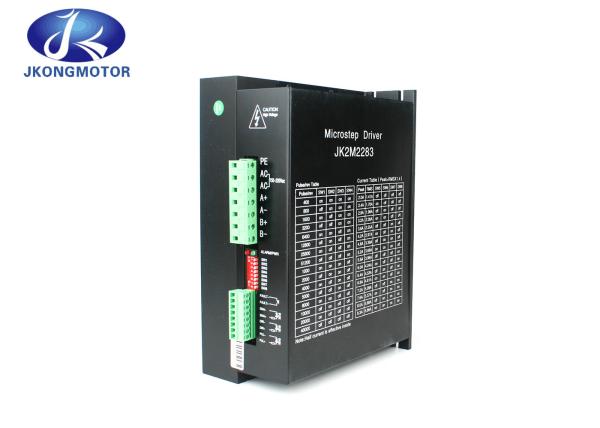

Details of JK2M2283:
2 Phase 110mm 130mm NEMA 52 Stepper Motor Controller

2 Phase 110mm 130mm NEMA 52 Stepper Motor Controller

2 Phase 110mm 130mm NEMA 52 Stepper Motor Controller

2 Phase 110mm 130mm NEMA 52 Stepper Motor Controller

2 Phase 110mm 130mm NEMA 52 Stepper Motor Controller

2 Phase 110mm 130mm NEMA 52 Stepper Motor Controller

2 Phase 110mm 130mm NEMA 52 Stepper Motor Controller
