IP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Micro Planetary Gear Motor
IP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Micro Planetary Gear Motor
IP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Micro Planetary Gear Motor
IP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Micro Planetary Gear Motor
IP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Micro Planetary Gear Motor
IP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Micro Planetary Gear Motor
Specifications
Brand Name :
Jkongmotor
Model Number :
JK60BLS400-2500E-48-BK-TAD60-50
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US $288 - 278 / Unit
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
30000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Phase :
3-phase
Poles :
8
voltage range :
48V
Keywords :
bldc gear motor
Color :
Black
Output power :
400W
Rated speed :
3000rpm
No load speed :
6800rpm
current :
12.8A
Rated torque :
1.27N.m
Description

IP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Planetary Gear DC Motor

JK60BLS motor with 2500ppr encoder with brake with AD planetary gearbox 50:1 reduction ratio. The motor rated voltage is 48v, rated power is 400w, rated torque is 1.27N.m, rated current is 12.8A, the diameter of the shaft is 14mm.

Genaral Specification of electric dc motor:

Item Specification
Winding type Star
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm＠450g
End play 0.08mm＠450g
Max.radial force 75N ＠20mm form the flange
Max.axial force 15N
Insulation class Class B
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩ Min.,500VDC

Specification Unit JK60BLS400-2500E-48-BK-TAD60-50
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 48
Rated Speed Rpm 3000
Rated Torque N.m 1.27
Rated Power W 400
Rated Current A 12.8
Torque Constant N.m/A 0.09


Products of special request can be made according to the customer request !

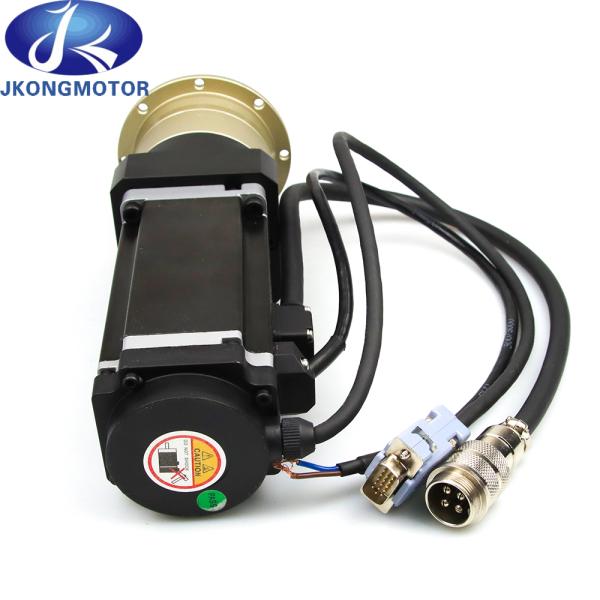

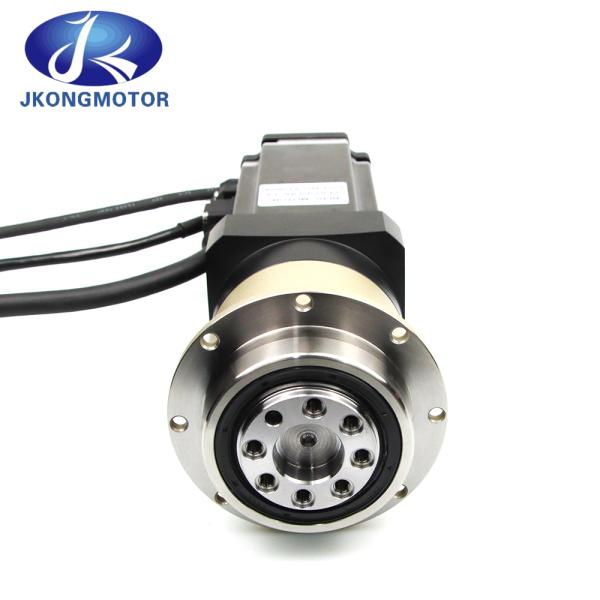

Details of BLDC motor:

IP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Micro Planetary Gear Motor

IP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Micro Planetary Gear Motor

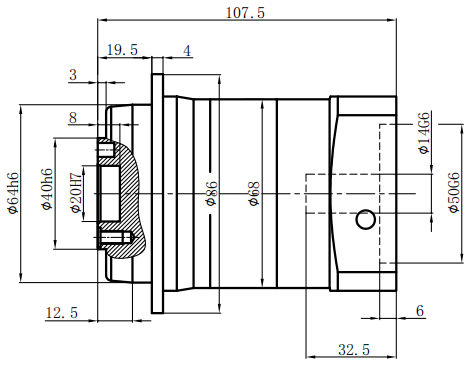

Drawing of 42BLS motor:

IP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Micro Planetary Gear Motor
IP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Micro Planetary Gear Motor

IP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Micro Planetary Gear Motor

IP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Micro Planetary Gear MotorIP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Micro Planetary Gear MotorIP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Micro Planetary Gear MotorIP65 3 Phase 48V 400w 50:1 2500ppr Brake Brushless Micro Planetary Gear Motor

FAQ(Q=Question, A=Answer)

Q: What's your main products?
A:We currently produce Stepper motors, Brushless Dc Motors, Brushed Dc Motors, Spindle motor, Ac Motors and drivers etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.

Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples.

Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
