0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver
0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver
0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver
0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver
0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver
0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver
Specifications
Brand Name :
Jkongmotor
Model Number :
JK36HM21-05042-03AF
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$5.5~US$10.9
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Name :
stepper motor
Leads :
4
Current :
0.5 A
Holding Torque :
1000 g.cm
Step Angle :
0.9 degree
Shaft :
5mm
Phase Resistance :
10 Ω
Phase Inductance :
8 mH
voltage :
5 V
phase :
2
MOQ :
10pcs
Description

0.9° 5V 0.5A 4wire 1000g.cm 36HM Nema 14 CNC Hybrid Stepper Motor

With the development of science and technology, especially the development of permanent magnet materials, semiconductor technology and computer technology, these stepper motors have been widely used in industrial automation, robotics, textile and medical industries.

1.Genaral Specification of stepper motors:

* Model: JK36HM21-05042-03AF
* Stepping angle: 0.9°
* Voltage: 5V
* Current: 0.5A
* Resistance (Ohms): 10
* Inductance (mH): 8
* Phase: 2 phase
* Rated torque: 1000g/cm
* Diameter for the shaft: 5mm
* Net Weight: 0.13kg

Step angle 0.9°
Temperature rise below 80 ℃
Ambient temperature -20 ℃ ~ + 50 ℃
Insulation resistance minimum 100MΩ, 500VDC
Dielectric strength 500VAC for 1 minute
Shaft radial clearance 0.02 max (450 g load)
Shaft axial clearance 0.08Max. (450 g load)
Maximum radial force 28N (20mm from flange)
Maximum axial force 10N

2.Electrical Specification of 36HM stepper moror:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass
( °) (L)mm A Ω mH g.cm No. g.cm g.cm Kg
JK36HM12-0304 0.9 12 0.3 16.8 8.5 420 4 80 4 0.06
JK36HM18-0404 0.9 19 0.4 12 5 560 4 100 6 0.1
JK36HM21-0404 0.9 21 0.425 9 5 810 4 125 7 0.13

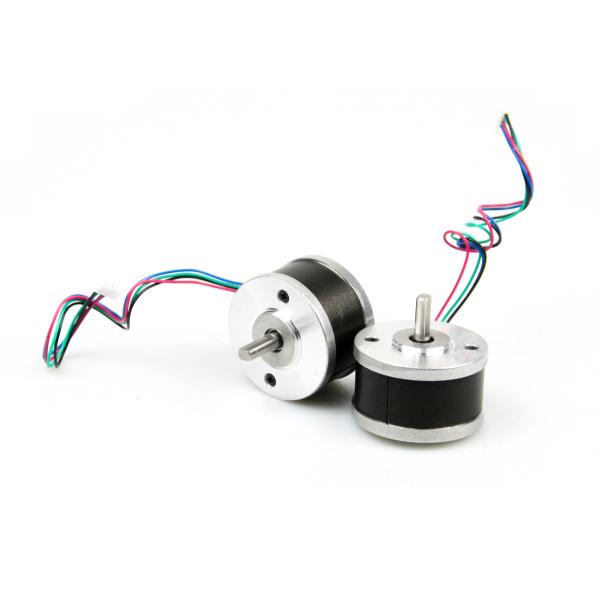

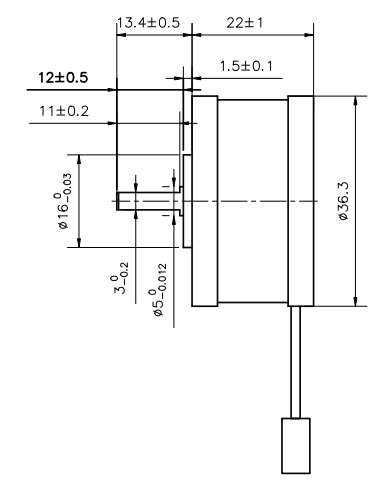

3.Details of JK36HM step motor:

0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver

0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver

0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver

0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver

0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver


4.Produce equipment:

0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver

5.Production Process:
0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver

6.Advantages of hybrid Stepper Motor

The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver

0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver

0.9° 5V 0.5A 4wire 1000g.Cm 36HM Nema 14 CNC Stepper Motor Driver

FAQ(Q=Question, A=Answer)

Q: What's your main products?
A:We currently produce Stepper motors, Brushless Dc Motors, Brushed Dc Motors, Spindle motor, Ac Motors and drivers etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.

Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples.

Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
