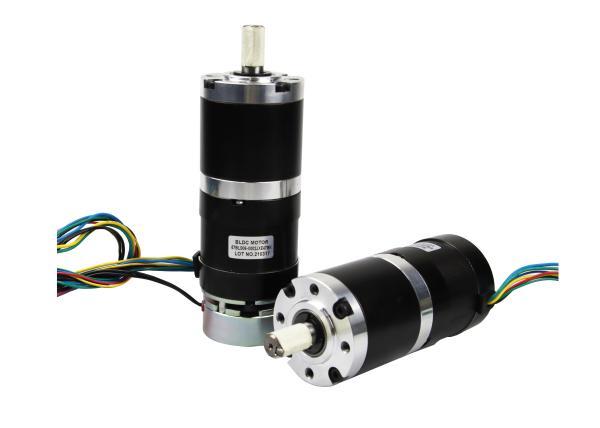

3 Phase 4 Poles 24v 35w Geared Brushless Motor With Brake
3 Phase 4 Poles 24v 35w Geared Brushless Motor With Brake
3 Phase 4 Poles 24v 35w Geared Brushless Motor With Brake
3 Phase 4 Poles 24v 35w Geared Brushless Motor With Brake
3 Phase 4 Poles 24v 35w Geared Brushless Motor With Brake
3 Phase 4 Poles 24v 35w Geared Brushless Motor With Brake
Specifications
Brand Name :
Jkongmotor
Model Number :
JK57BLS06-X002JXE47BK
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US $62 - 166 / Unit
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
30000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Phase :
3-phase
Poles :
8
voltage range :
24V
Keywords :
bldc gear motor
Output power :
35W
Speed ratio :
47:1
Rated torque :
0.16N.m
Speed :
3000rpm
No load speed :
3700rpm
No load current :
2.8A
Description

3 phase 4 poles 24v 35w geared bldc motor 57BLS with brake Gate barrier brushless motor

Product Series Poles No. Rated Voltage Rated Speed Rated Torque Rated Power Motor Length
42mm BLDC Motor 8 24v 4000rpm 0.0625~0.25N.m 26~105w 41~100mm
57mm BLDC Motor 4 36v 4000rpm 0.055~0.44N.m 23~184w 37~107mm
60mm BLDC Motor 8 48v 3000rpm 0.3~1.2N.m 94~377w 78~120mm
80mm BLDC Motor 4 48v 3000rpm 0.35~1.4N.m 110~440w 78~138mm
86mm BLDC Motor 8 48v 3000rpm 0.35~2.1N.m 110~660w 71~138.5mm
110mm BLDC Motor 8 310v 3000rpm 1.65~6.6N.m 518~2073w 83~173mm
130mm BLDC Motor 10 310v 3000rpm 2.39~11.94N.m 750~2500w 115~190mm
Above only for representative products, products of special request can be made according to the customer request.

Genaral Specification of bldc motor:

Item Specification
Winding type Star
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm＠450g
End play 0.08mm＠450g
Max.radial force 75N ＠20mm form the flange
Max.axial force 15N
Insulation class Class B
Dielectric strength 500VDC for one minute
Insulation resistance

100MΩ Min.,500VDC

Specification of JK86BLS motor:

Model
Specification Unit JK86BLS58 JK86BLS71 JK86BLS84 JK86BLS98 JK86BLS125
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 48
Rated Speed Rpm 3000
Rated Torque N.m 0.35 0.7 1.05 1.4 2.1
Rated Current Amps 3 6.3 9 11.5 18
Rated Power W 110 220 330 440 660
Peak Torque N.m 1.05 2.1 3.15 4.2 6.3
Peak Current Amps 9 19 27 35 54
Back E.M.F V/Krpm 13.7 13 13.5 13.7 13.5
Torque Constant N.m/A 0.13 0.12 0.13 0.13 0.13
Rotor Inertia g.c㎡ 400 800 1200 1600 2400
Body Length mm 71 84.5 98 111.5 138.5
Weight Kg 1.5 1.9 2.3 2.7 4
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25～+70℃
Operating Temperature -15～+50℃
Working Humidity ≤85% RH
Working Environment Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude 1000 meters or less

3 Phase 4 Poles 24v 35w Geared Brushless Motor With Brake

Details of Brushless dc motor:

3 Phase 4 Poles 24v 35w Geared Brushless Motor With Brake

Drawing of 86BLS motor:

3 Phase 4 Poles 24v 35w Geared Brushless Motor With Brake

3 Phase 4 Poles 24v 35w Geared Brushless Motor With Brake

3 Phase 4 Poles 24v 35w Geared Brushless Motor With Brake

3 Phase 4 Poles 24v 35w Geared Brushless Motor With Brake3 Phase 4 Poles 24v 35w Geared Brushless Motor With Brake3 Phase 4 Poles 24v 35w Geared Brushless Motor With Brake

FAQ(Q=Question, A=Answer)

Q: What's your main products?
A:We currently produce Stepper motors, Brushless Dc Motors, Brushed Dc Motors, Spindle motor, Ac Motors and drivers etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.

Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples.

Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
