0.637NM 200W 3000rpm Brushless AC Servo Motor Kits Encoder For Sewing Machine
0.637NM 200W 3000rpm Brushless AC Servo Motor Kits Encoder For Sewing Machine
0.637NM 200W 3000rpm Brushless AC Servo Motor Kits Encoder For Sewing Machine
0.637NM 200W 3000rpm Brushless AC Servo Motor Kits Encoder For Sewing Machine
0.637NM 200W 3000rpm Brushless AC Servo Motor Kits Encoder For Sewing Machine
0.637NM 200W 3000rpm Brushless AC Servo Motor Kits Encoder For Sewing Machine
Specifications
Brand Name :
Ledashine
Model Number :
ACM602V36-T-2500+ACS806
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$58~US$178
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-35days
Packaging Details :
with export carton . big quantity with pallet
Brand :
Ledashine
Model :
ACM602V36-T-2500+ACS806
Frame Size :
60mm
Holding Torque :
0.637N.m
Rated Power :
200W
Rated Speed :
3000Rpm
Rated Voltage :
36V
Rated Current :
7.5A
Encoder Resolution :
2500CPR
Application :
sewing machine
Description

0.637N.m 200W 3000rpm Leadshine AC Servo Motor kits encoder for sewing machine

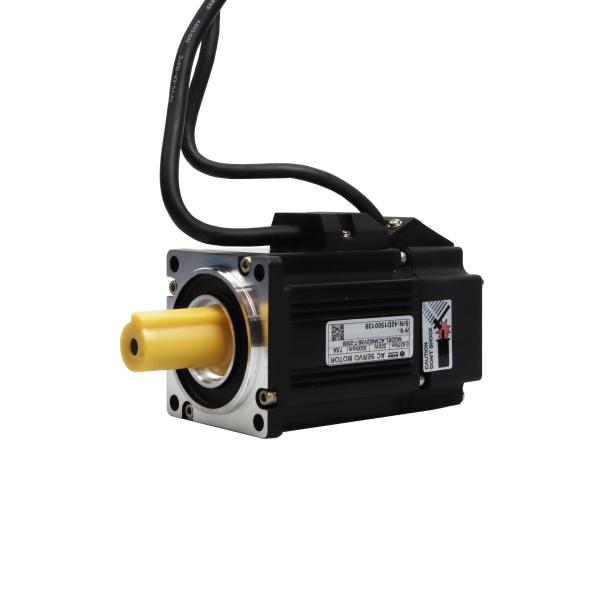

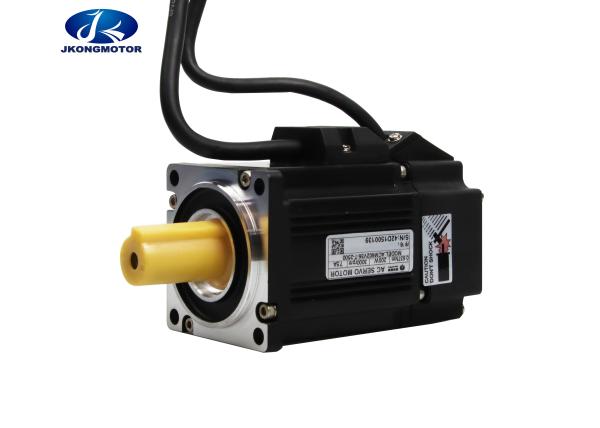

AC Servo motor Introduction:

The ACM602V36 servo motors offer high performance with wide output upto 200W . Mounting is compatible with Panasonic and Fuji AC servo motors. The ACM series are ideal for cost sensitive applications. Standard model comes with a standard 2500-line encoder with differential encoder signals (A, B, Index), and Hall Sensors with standard Hall signals (U, V, W). When driven by Leadshine ACS series servo drives, the ACM series motors can meet requirements of applications requiring speed from as low as 1rpm to as high as 4000 rpm.

Features of 200w Ac servo motor:

Brand Ledashine
Model ACM602V36-T-2500+ACS806
Frame Size 60mm
Holding Torque 0.637N.m
Peak Torque 1.92N.m
Rated Power 200W
Rated Speed 3000Rpm
Peak Speed 4000Rpm
Rated Voltage 36V
Rated Current 7.5A
Peak Current 21A
Encoder Resolution 2500CPR

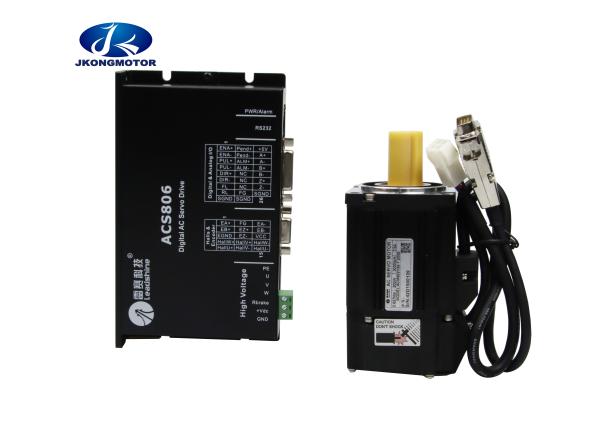

This kit includes:
1pc 200W Servo Motor
1pc ACS806 Driver
Cable

Drawing of Servo motor:

0.637NM 200W 3000rpm Brushless AC Servo Motor Kits Encoder For Sewing Machine

0.637NM 200W 3000rpm Brushless AC Servo Motor Kits Encoder For Sewing Machine

0.637NM 200W 3000rpm Brushless AC Servo Motor Kits Encoder For Sewing Machine

Servo motor Features:

These are low weight devices.
It offers reliability as well as stability in operation.
There is not much noise generated at the time of operation.
It offers almost linear torque-speed characteristics.
As brushes and slip rings are not present here thus it reduces maintenance cost.

Applications of AC Servo motors:

Due to the various advantages offered by the AC servomotors, these majorly finds applications in the instruments that operate on servomechanism, in position controlling devices, computers. Along with this these also find applications in tracking systems, machine tools and robotics machinery.
