JKBLD120 12V~30VDC 0A-8A 120w BLDC Motor Driver SPWM Driver Type
JKBLD120 12V~30VDC 0A-8A 120w BLDC Motor Driver SPWM Driver Type
JKBLD120 12V~30VDC 0A-8A 120w BLDC Motor Driver SPWM Driver Type
JKBLD120 12V~30VDC 0A-8A 120w BLDC Motor Driver SPWM Driver Type
JKBLD120 12V~30VDC 0A-8A 120w BLDC Motor Driver SPWM Driver Type
JKBLD120 12V~30VDC 0A-8A 120w BLDC Motor Driver SPWM Driver Type
JKBLD120 12V~30VDC 0A-8A 120w BLDC Motor Driver SPWM Driver Type
JKBLD120 12V~30VDC 0A-8A 120w BLDC Motor Driver SPWM Driver Type
Specifications
Brand Name :
Jkongmotor
Model Number :
JKBLS120
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US $17.00 - US $22.00
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
50000 pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Motor Type :
DC Motor
Input Voltage :
12V- 30V
motor speed :
20000rpm
Weight :
0.6CE ROHSkg
Certified :
CE ROHS
Matched Motor :
0 - 120W
Description

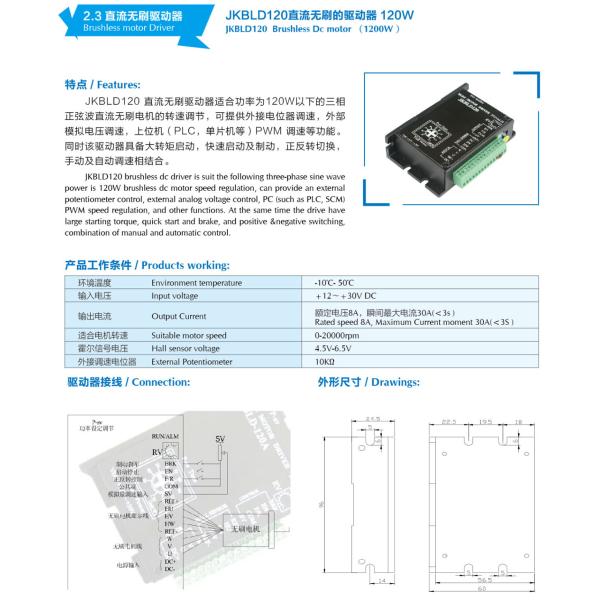

JKBLD120 12V~30VDC 0A-8A For 120w BLDC Motor Driver SPWM Driver Type

The JKBLD120 brushless dc driver is suit the following three-phase sine wave power is 120W brushless dc motor speed regulation, can provide an external potentiometer control, ecternal analog voltage control, PS(such as PLS, SCM) PWM speed regulation, and other functions. At the same time the drive have large starting torque, quick start and brake, and positive & negative switching, combination of manual and automatic control.
