Nema 34 1.8 Degree Closed Loop 4.5Nm Easy Servo Motor
Nema 34 1.8 Degree Closed Loop 4.5Nm Easy Servo Motor
Nema 34 1.8 Degree Closed Loop 4.5Nm Easy Servo Motor
Nema 34 1.8 Degree Closed Loop 4.5Nm Easy Servo Motor
Nema 34 1.8 Degree Closed Loop 4.5Nm Easy Servo Motor
Nema 34 1.8 Degree Closed Loop 4.5Nm Easy Servo Motor
Nema 34 1.8 Degree Closed Loop 4.5Nm Easy Servo Motor
Nema 34 1.8 Degree Closed Loop 4.5Nm Easy Servo Motor
Nema 34 1.8 Degree Closed Loop 4.5Nm Easy Servo Motor
Nema 34 1.8 Degree Closed Loop 4.5Nm Easy Servo Motor
Nema 34 1.8 Degree Closed Loop 4.5Nm Easy Servo Motor
Nema 34 1.8 Degree Closed Loop 4.5Nm Easy Servo Motor
Specifications
Brand Name :
Jkongmotor
Model Number :
JK86HSN45
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$62.5~US$78.5
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Type :
Hybrid
Step angle(degrees) :
1.8 Degree
Phase :
2
Leads :
4
Shaft :
14mm D shaft
Current :
4.0A
Holding Torque :
4.5N.m
Motor Length :
106.5
Encoder :
1000 ppr
Usage :
CNC
Description

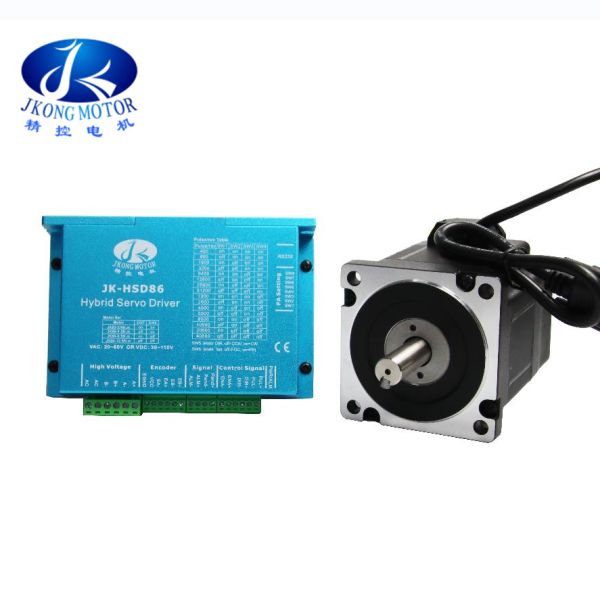

4.5N.m Holding Torque Nema34 Closed Loop Stepper Motor System /cnc servo motor

1) Product Name: 4.5N.m Nema34 Closed loop servo stepper motor
Model: JK86HSN45
Number of Phase: 2
Step Angle: 1.8 Degree
No. of Leads: 4
Rated Voltage: 1.62V
Rated Current: 4.0 Amps
Holding Torque: 4.5N.m

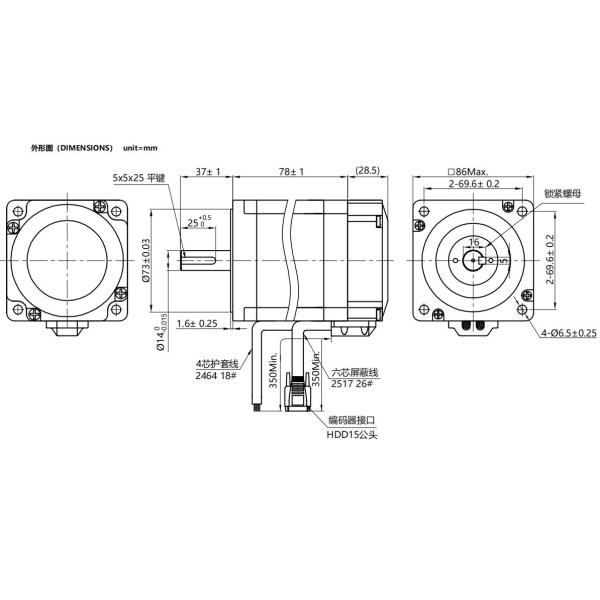

Motor Diameter: 86mm
Motor length:106.5mm
Shaft Length: 37mm
Shaft Diameter: 14mm

2) Product Name: 4.5N.m Nema34 Closed loop servo stepper driver
Model:JK-HSD86
Voltage Range: 30-110VDC, 20-80VAC
Microstep/pulse: 51200/rev

3)Typical applications: CNC machine


4. Genaral Specification of stepper motor driver kit:

Item Specifications
Step Angle 1.8°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 820VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 220N (20mm from the flange)
Max. axial force 60N

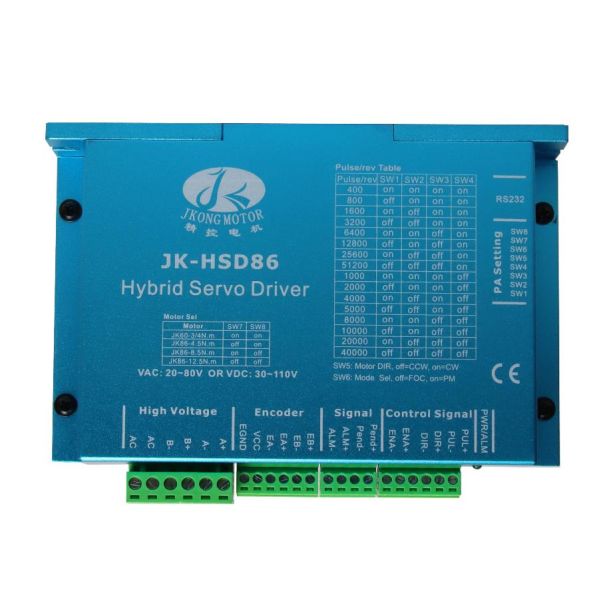

5. Matching Stepper motor Driver: JK-HSD86

  • Step and direction control
  • Closed position loop for no loss of movement synchronization
  • Operating voltage: 20-80 VDC
  • Load based output current of 0.1 - 10 A
  • High torque at starting and low speed
  • No torque reservation
  • High stiffness at standstill
  • Significantly reduced motor heating
  • Smooth motor movement and extra low motor noise
  • Quick response, no delay and zero settling time
  • No loss of steps; no hunting; no overshooting
  • Plug-and-play and no tuning

Nema 34 1.8 Degree Closed Loop 4.5Nm Easy Servo Motor

Nema 34 1.8 Degree Closed Loop 4.5Nm Easy Servo Motor

Nema 34 1.8 Degree Closed Loop 4.5Nm Easy Servo Motor

CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.


We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.


Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.


We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.
