86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit
86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit
86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit
86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit
86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit
86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit
Specifications
Brand Name :
Jkongmotor
Model Number :
Nema 34 Closed Loop stepper motor kits
Certification :
CE, ROHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3-10pcs
Price :
US$200~US$320
Payment Terms :
T/T , paypal , Western Union, L/C
Supply Ability :
100000pcs/month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
with export carton . big quantity with pallet
Phase :
2
Current :
6.0A
Holding Torque :
4.6N.m - 13N.m
Resistance :
0.27Ω - 0.44Ω
Inductance :
2mH - 3.8mH
Detent torque :
1.2kg.cm - 3.6kg.cm
Warranty :
12 months
Number of leads :
4
Key words :
3axis 4axis stepper motor kits
Description

86HSN 4.6N.m 12N.m 6A Software Adapter Board Closed Loop Stepper Motor 3axis Cnc Kit

The function of the stepper motor. Closed-loop stepper motor combines the advantages of stepper and servo motor technology. They run more smoothly, have lower resonance than stepper motors, provide position feedback and control, have short settling times, and show no step loss.


Electrical Specification of NEMA 34 closed loop stepper motor:

Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

 Holding Torque # of Leads Detent Torque Rotor Inertia
( °) (L)mm A Ω mH N.m No. Kg.cm g.cm²
JK86HSN45 1.8 78 6 0.27 2 4.6 4 1.2 1400
JK86HSN65 1.8 100 6 0.27 2.2 6.8 4 1.9 2200
JK86HSN85 1.8 115 6 0.36 3.8 8.5 4 2.4 2700
JK86HSN120 1.8 155 6 0.44 3.8 12.5 4 3.6 4000
Above only for representative products, products of special request can be made according to the customer request.

Nema34 Servo Motor Features:

  1. Low heat (static, the current is almost zero, no heat).
  2. Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping motor troubled low-frequency resonance has a very good resistance).
  3. pplicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine /placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.
  4. Large torque output in some cases can simplify the complexity of the machine.

closed loop Stepper motor Driver: JK-HSD86

Parameter Min Typical Max Unit
Input Voltage (JK-HSD86) 20 36 48 50 VDC
Input Voltage (JK-HSD86C) 24 36 48 80 VDC
Input Voltage (SC8680C) 24VAC 60AC 80VAC 100VDC VVDC
Output Current 0.1 - 10(Peak) A
Pulse Input Frequency 0 - 200 kHz
Logic Signal Current 7 10 16 mA
Isolation Resistance 500 - - MΩ

Nema34 Servo Motor Driver Parameters:

Features
Input voltage 24~80VAC/24~110VDC
Output current 2.4~7.2A (PEAK)
Pulse frequency 0~100KHz
MicroSteps 16 MicroSteps
Using environment -5~50℃,avoiddust,high teperatureand corrosive gas
Storage environment -20~+80℃,avoid direct sunlight

Suitable Power Supply Parameters:

Power Supply Model Input voltage Ouput voltage Power Weight Size
S-300-48 AC110V/220V DC48V 300W 0.7kg 215*115*50mm
S-1000-48 AC110V/220V DC48V 1000W 1.5kg 245*245*65mm
S-360-60 AC110V/220V DC60V 360W 0.7kg 215*115*50mm
S-1200-60 AC110V/220V DC60V 1200W 1.5kg 245*245*65mm

Power Supply Features:

This series of products has strong versatility and can be applied to various types of products such as lamps, monitoring, security, communication equipment, etc.

You may receive:

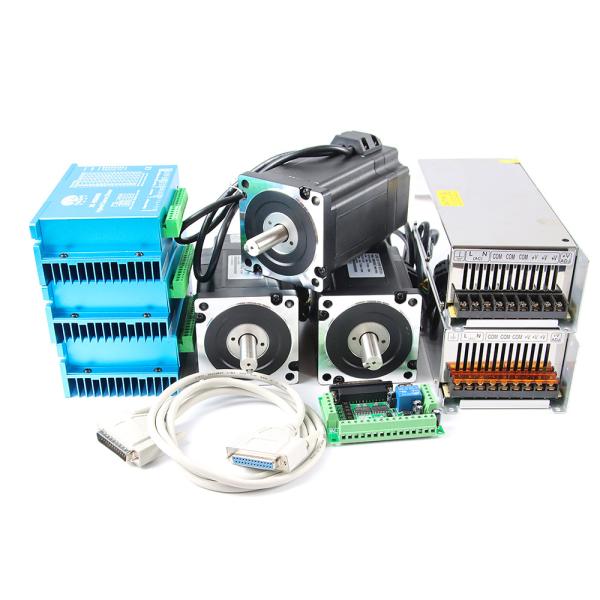

1. 3Pcs Nema 34 Closed Loop Stepper Motor + 3Pcs Power Supply + 3PCS JK-HSD86 Driver + other parts
2. 3Pcs Nema 34 Closed Loop Stepper Motor + 1Pcs Power Supply + 3PCS JK-HSD86 Driver + other parts

No. Output Voltage Motor Quantity Supply Quantity Driver Other
1 48V 3pcs closed loop motor 3pcs ——300W 3pcs —— JK-HSD86 board + cable + usb
2 48V 3pcs closed loop motor 1pcs ——1000W 3pcs —— JK-HSD86
3 60V 3pcs closed loop motor 3pcs ——360W 3pcs —— JK-HSD86
4 60V 3pcs closed loop motor 1pcs ——1200W 3pcs —— JK-HSD86

closed loop stepper motor Drawing:

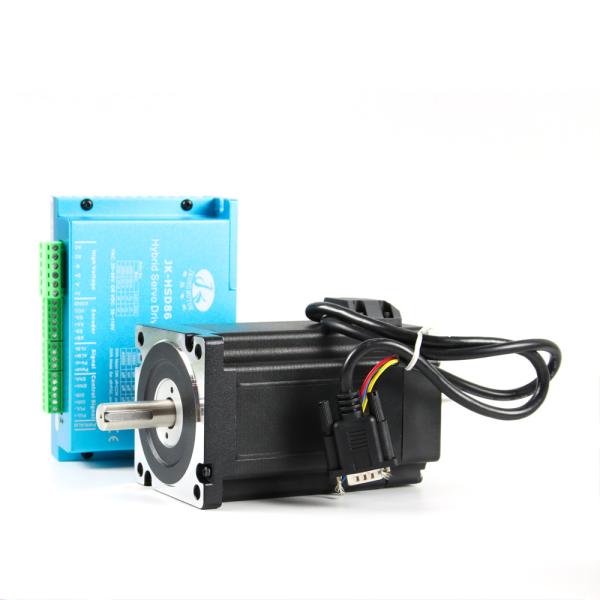

86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit

86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit

86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit

Product Details :

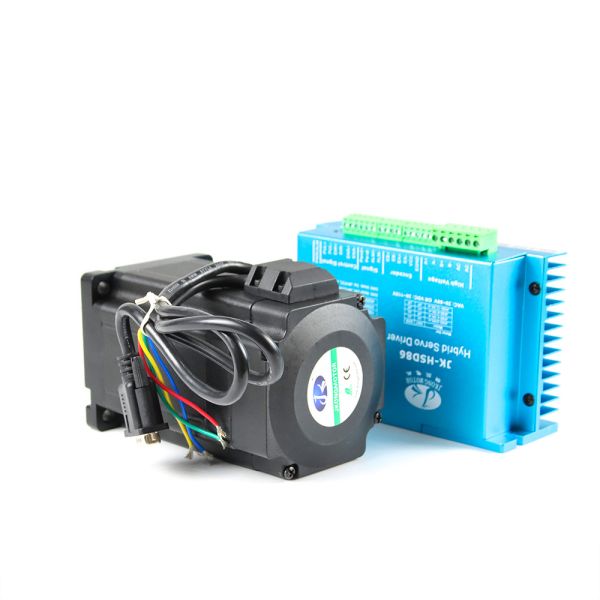

One set includes stepper motor and stepper driver with board + cable + USB with power supply

Warranty:

  • We offer one year warranty.
  • Within the warranty period, if your item has any problems when you use it, please send us an e-mail with photos or video to show the problem.
  • The replacement of the products for free are considerable due to it's own defects during warranty period.

86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit

86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit

86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit

Product tags

cnc stepper motor driver kit

,

stepper motor controller kit

,

nema 34 stepper motor kit
